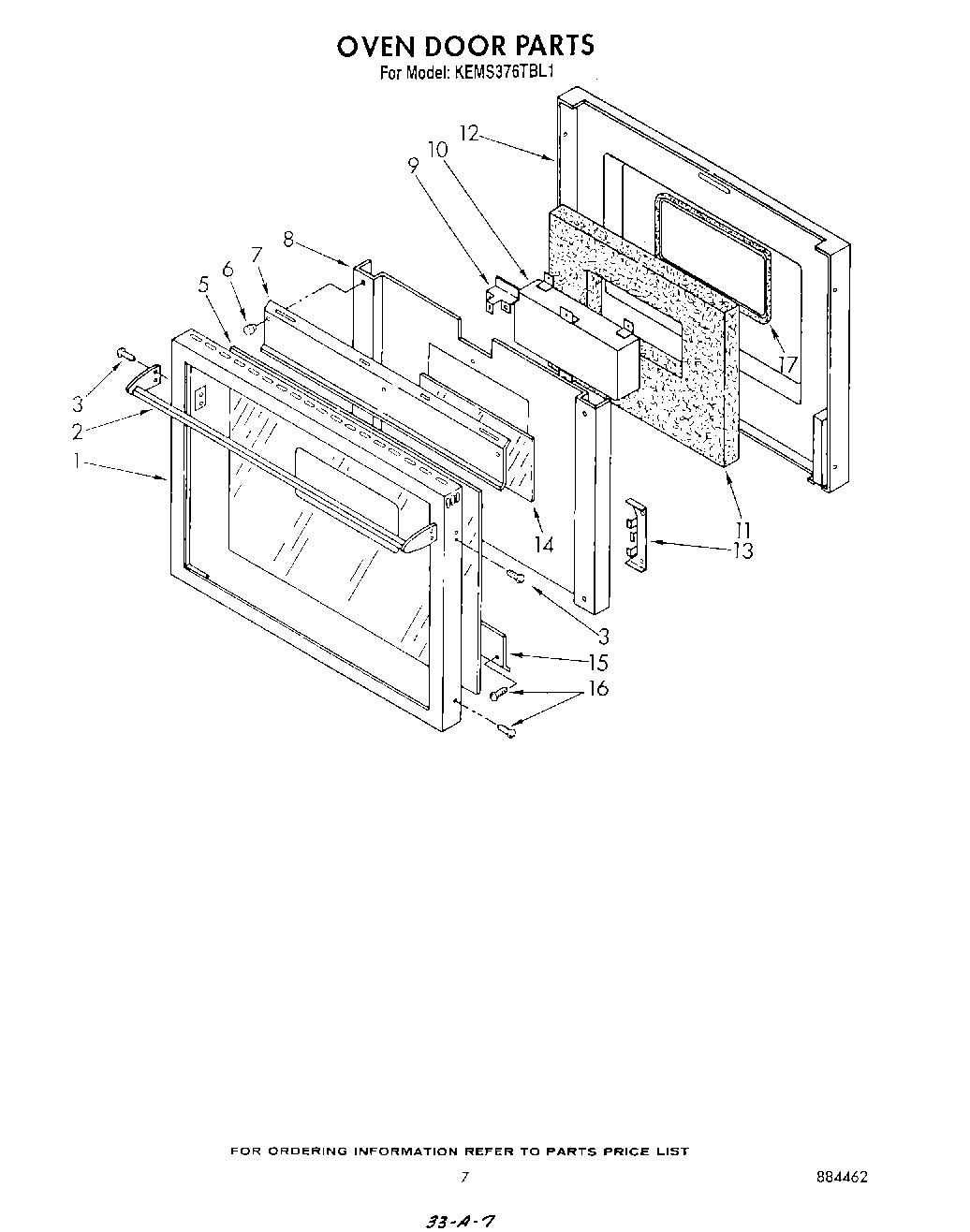

KEMS376TBL1 07 – OVEN DOORadmin2025-04-26T10:33:16+00:00KEMS376TBL1 07 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Door Frame |
| 1 | White |
| 1 | Almond |
| 2 | Door Handle |
| 2 | Door Handle (Almond) |
| 2 | Door Handle (White) |
| 5 | Door Glass |
| 5 | Door Glass (Almond) |
| 5 | Door Glass (White) |
| 6 | Rubber Bumper |
| 7 | Air Baffle |
| 8 | Retainer, Insulation |
| 9 | Bracket, Lock |
| 10 | Window Package |
| 11 | Insulation |
| 12 | Door Liner |
| 13 | Bracket, Glass Mtg. |
| 13 | Screw, (2) |
| 14 | Glass, Reflective |
| 15 | Air Baffle, Bottom |
| 16 | Vent, Lower Trim (Screw (2)) |
| 17 | Cover, Seal End |
| 17 | Seal, Window |
| 17 | Screw, 8-32 X 3/8`` PFHMS |
