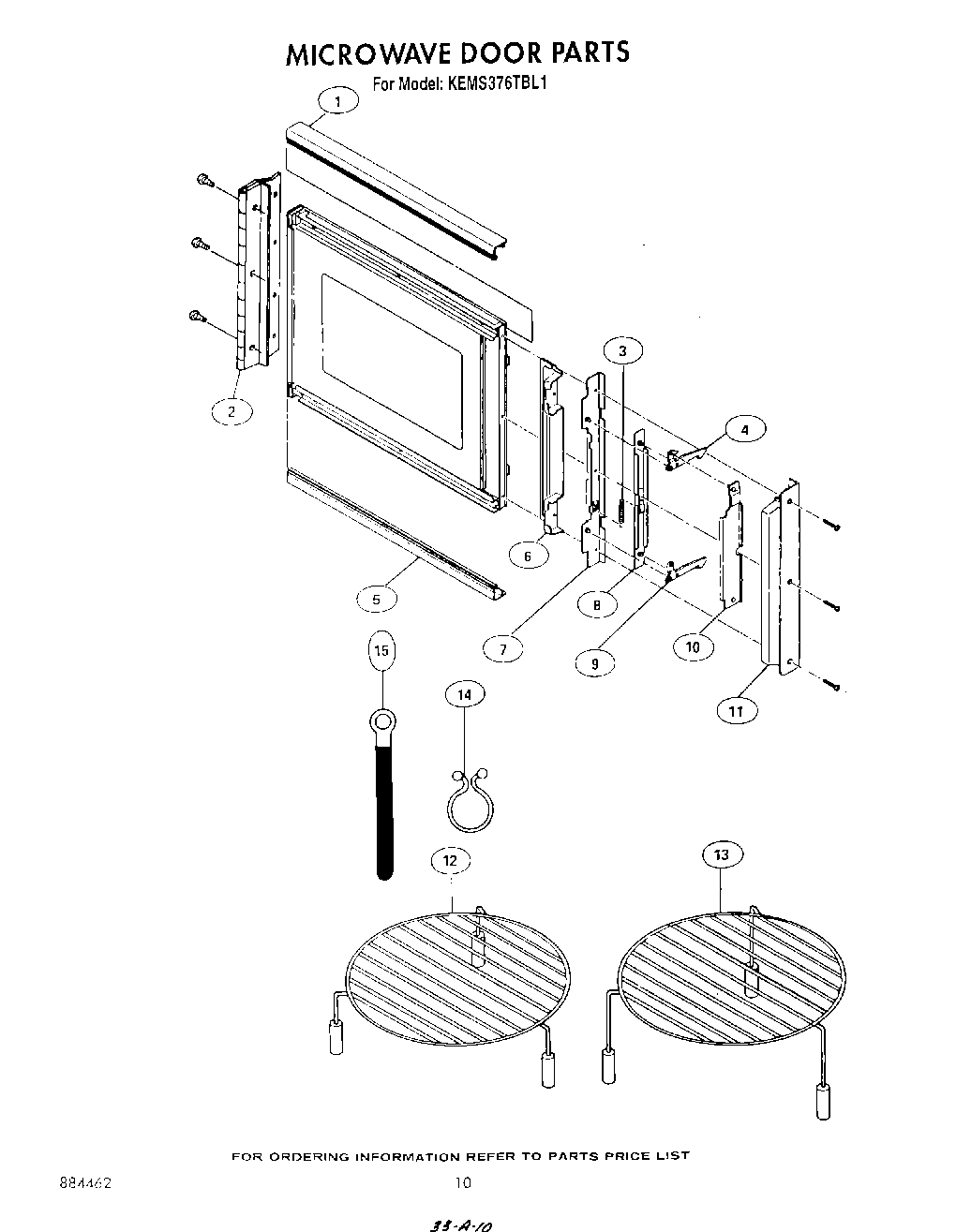

KEMS376TBL1 09 – MICROWAVE DOOR

Products

Position	Product
1	Trim, Upper Door (White)
1	Trim, Upper Door (Almond)
1	trim, upper door
2	hinge, door
2	Screw, Door Hinge Mounting (3)
2	Hinge, Door
3	spring, latch
4	catch, upper latch
5	trim, door lower
5	Trim, Door Lower (Almond)
5	Trim, Door Lower (White)
6	Trim, Door Panel Frame (Almond)
6	Trim, Door Panel Frame (White)
6	trim, door panel fram
7	plate, latch
8	lever, joint
9	catch, lower latch
10	lever, latch release
10	Lever, Latch Release (Almond)
10	Lever, Latch Release (White)
11	Handle, Door (xScrews, Latch Cover Mounting (3))
11	Handle, Door (White)
11	Handle, Door (Almond)
11	handle, door
12	rack, broiling
13	rack, baking
14	wire tie, small
15	wire tie, large
71	xDoor, Complete
71	Door, Complete (White)
71	Door, Complete (Almond)
