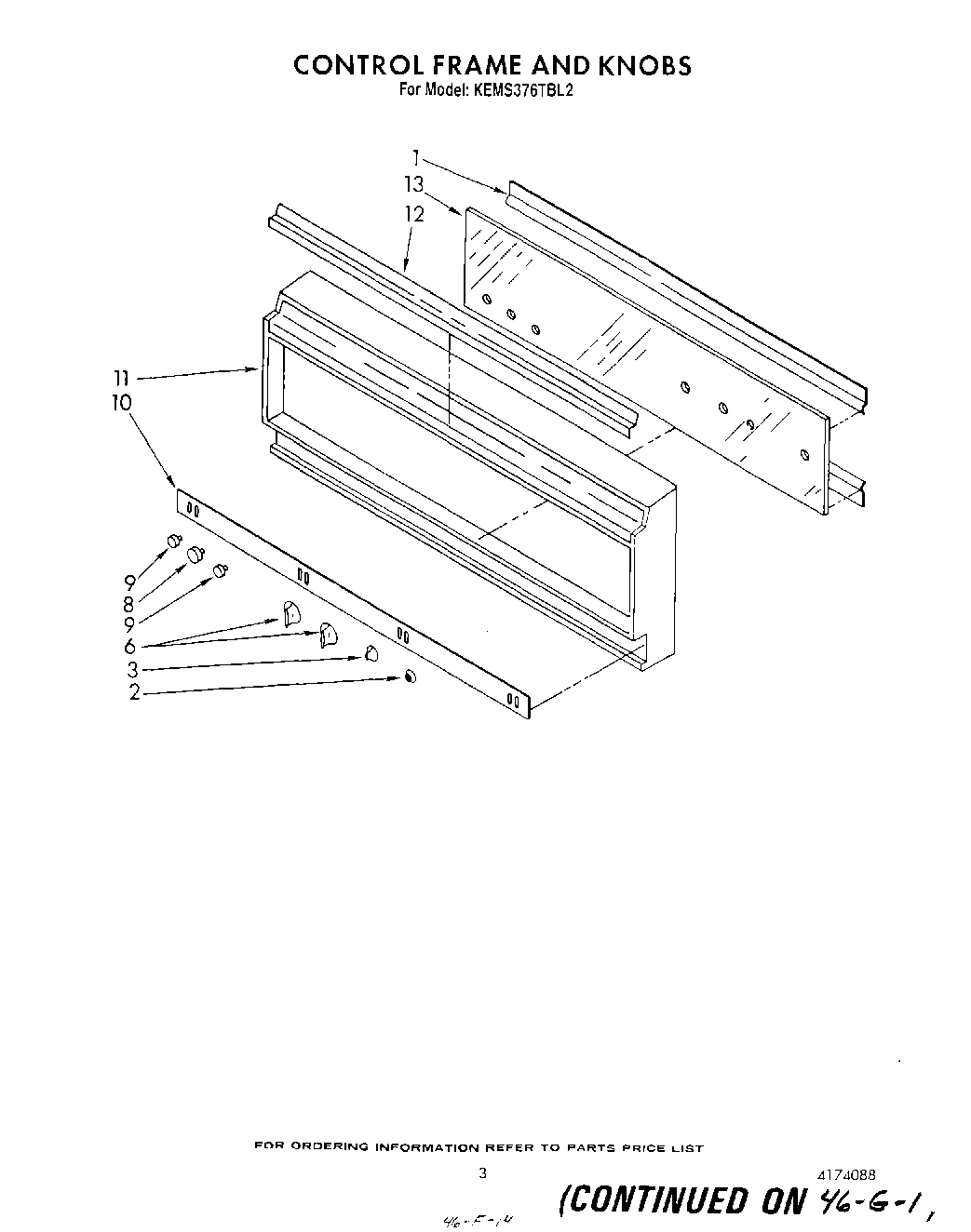

KEMS376TBL2 03 – CONTROL FRAME AND KNOBS

Written by

Products

Position	Product
1	Retainer
1	Screw (6)
2	Bezel, Oven Light Switch
3	Knob
6	WP4168403 Whirlpool Knob
8	Knob, Clock
9	knob, timer (push button control)
10	Vent Insert
10	nut (3)
10	Nut (4)
11	Control Frame
12	Top Insert
12	Screw (5)
13	glass, panel
