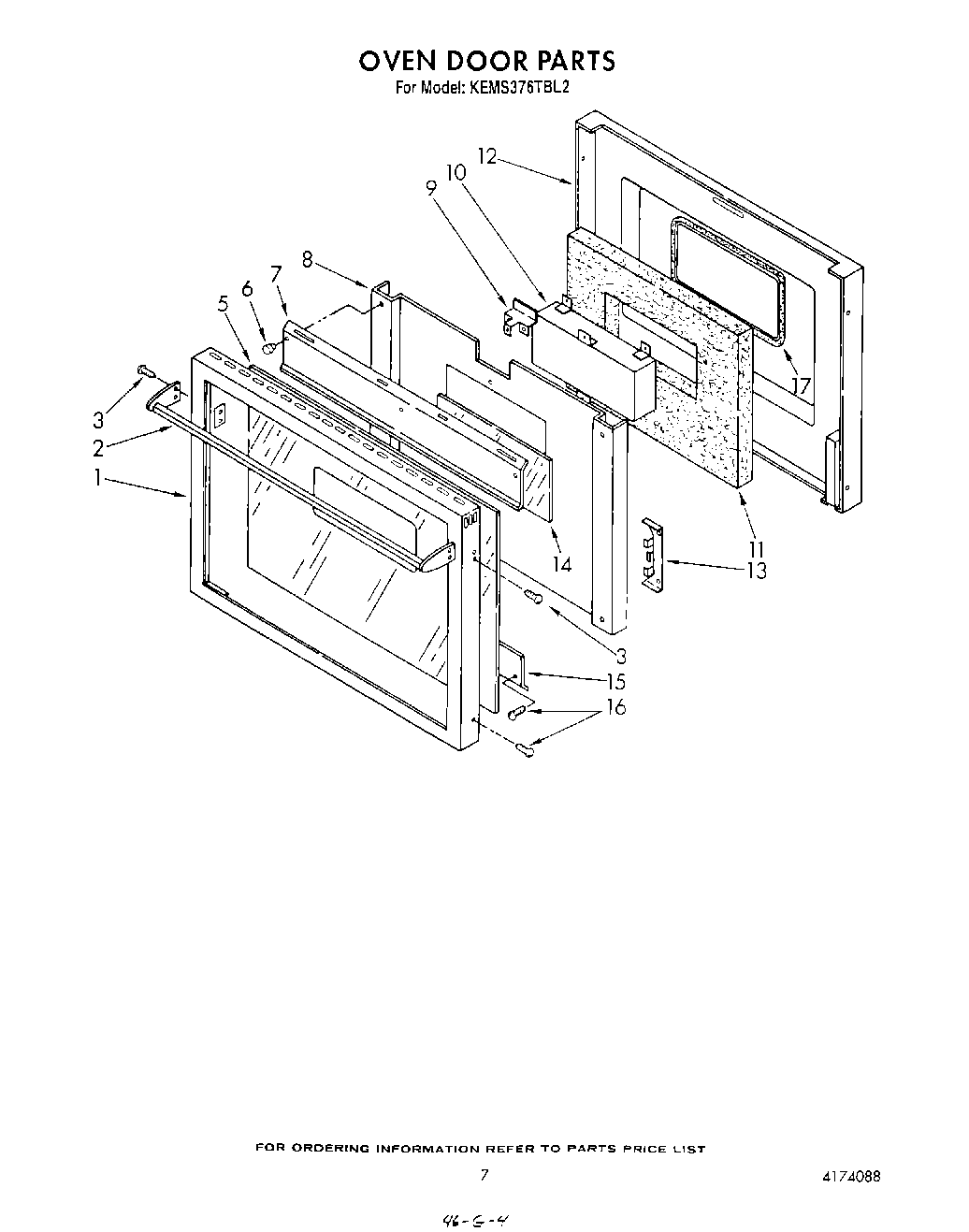

KEMS376TBL2 07 – OVEN DOOR

Products

Position	Product
1	Door Frame
2	Door Handle
5	Door Glass
6	Rubber Bumper
7	Air Baffle
8	Retainer, Insulation
9	Bracket, Lock
10	Window Package
11	Insulation
12	door liner
13	Bracket, Glass Mtg.
13	Screw, (2)
14	Glass, Reflective
15	Air Baffle, Bottom
16	Vent, Lower Trim (Screw (2))
17	Seal, Window
17	Screw, 8-32 X 3/8“ PFHMS
17	Cover, Seal End
