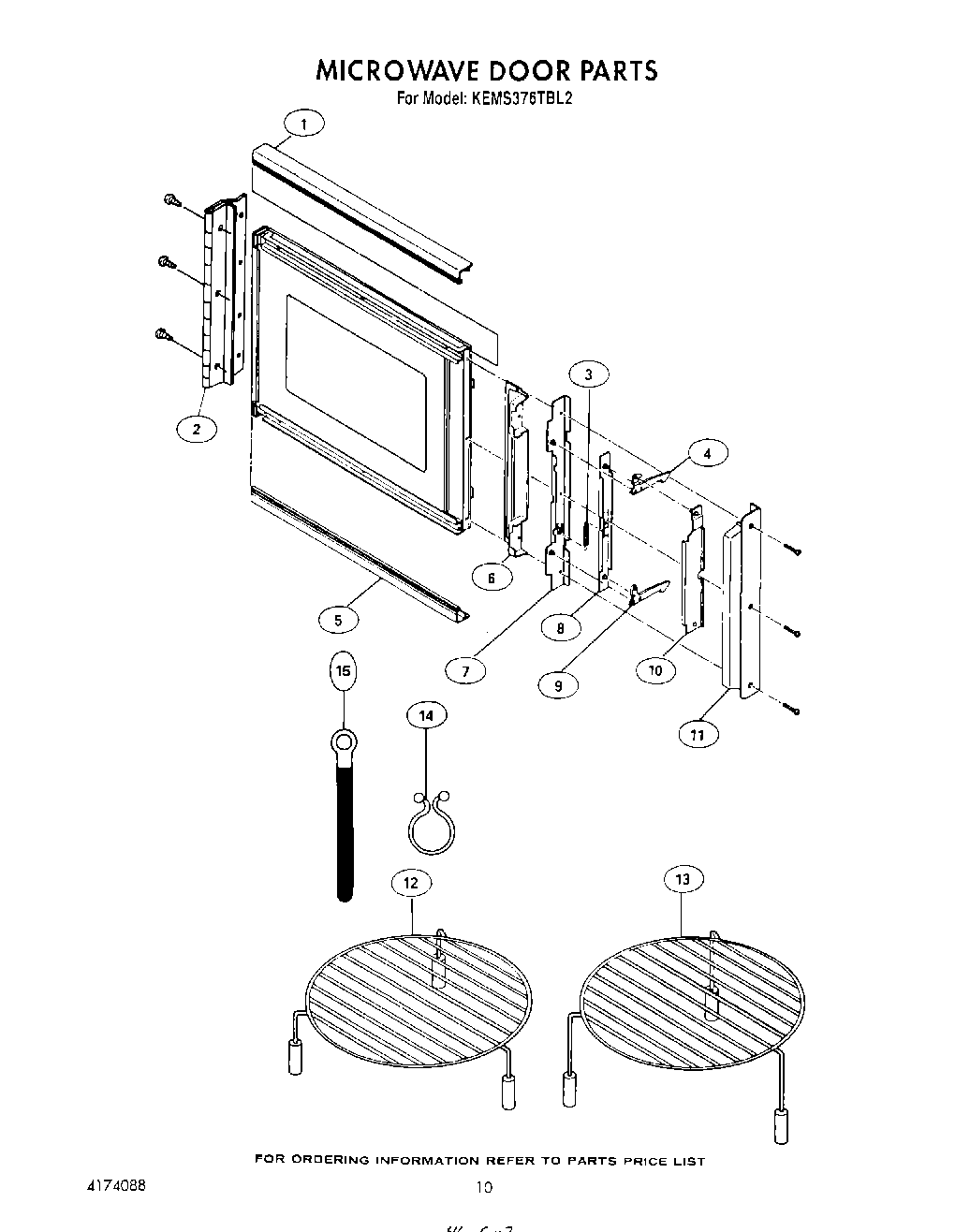

KEMS376TBL2 09 – MICROWAVE DOORadmin2025-04-26T10:31:08+00:00KEMS376TBL2 09 – MICROWAVE DOOR
Products
| Position | Product |
|---|
| Screw, Door Hinge Mounting (3) |
| Handle, Door (xScrews, Latch Cover Mounting (3)) |
| xDoor, Complete |
| 1 | trim, upper door |
| 2 | hinge, door |
| 3 | spring, latch |
| 4 | catch, upper latch |
| 5 | trim, door lower |
| 6 | trim, door panel fram |
| 7 | plate, latch |
| 8 | lever, joint |
| 9 | catch, lower latch |
| 10 | lever, latch release |
| 11 | handle, door |
| 12 | rack, broiling |
| 13 | rack, baking |
| 14 | wire tie, small |
| 15 | wire tie, large |
