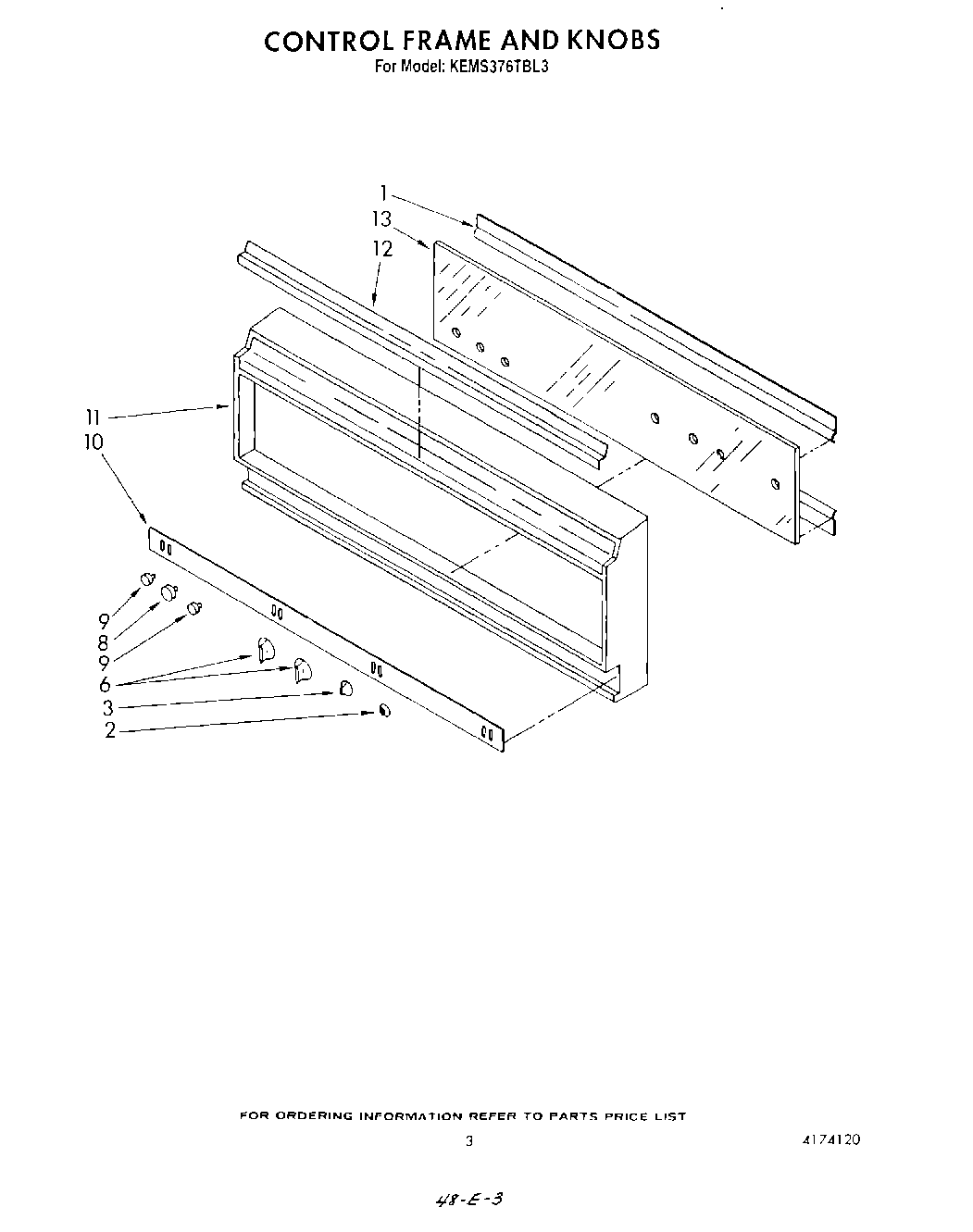

KEMS376TBL3 03 – CONTROL FRAME AND KNOBS

KEMS376TBL3 03 – CONTROL FRAME AND KNOBS

Written by

in

KEMS376TBL3 03 – CONTROL FRAME AND KNOBS

Products

Position	Product
1	Screw (6)
1	Retainer
2	Bezel, Oven Light Switch
3	Knob
6	WP4168403 Whirlpool Knob
8	Knob, Clock
9	Knob, Clock (2)
10	Vent Insert
10	nut (3)
10	Nut (4)
11	Control Frame
12	Top Insert
12	Screw (5)
13	glass, panel
