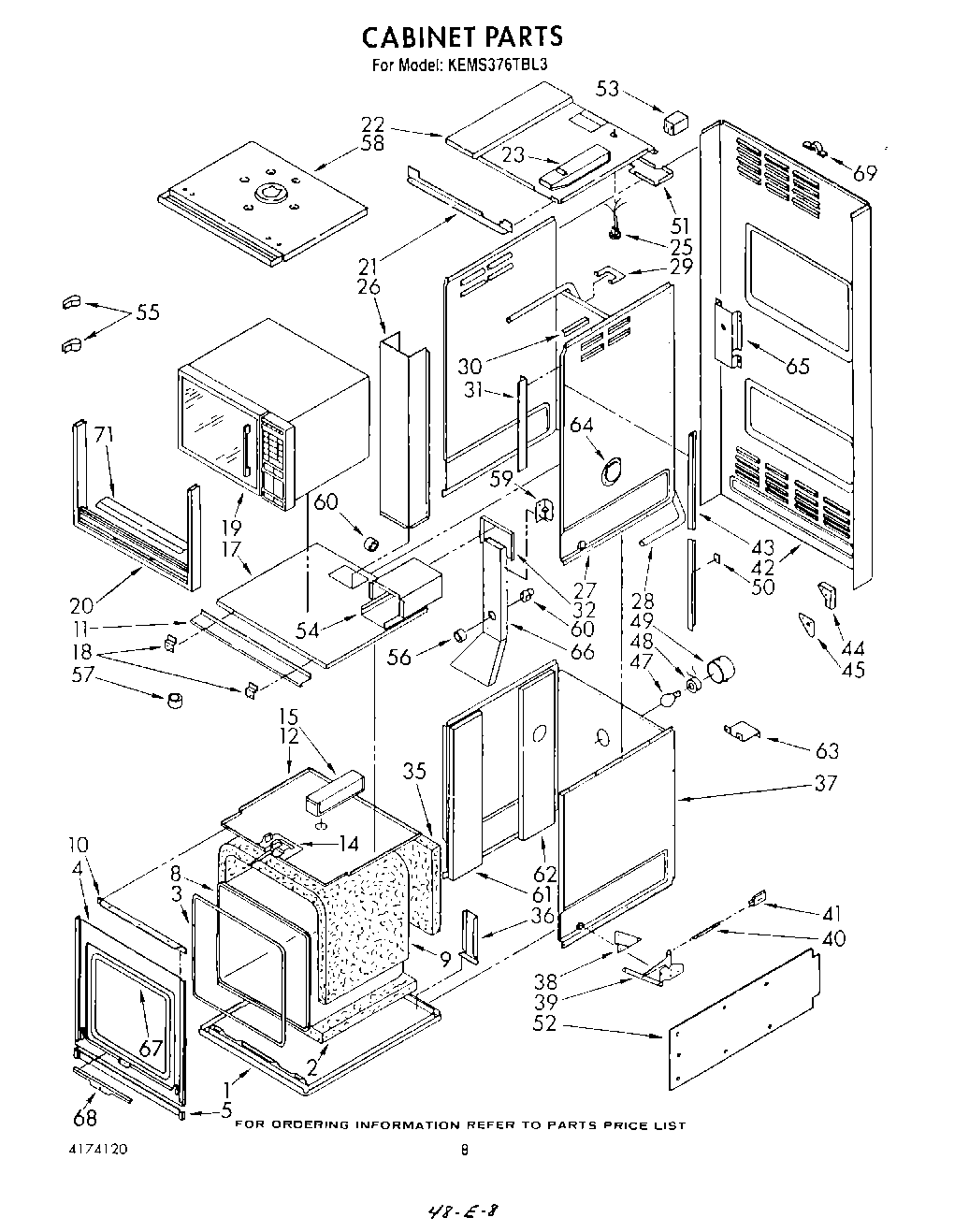

| 1 | Main Bottom (Includes Oven Support And Main Bottom) |
| 2 | Insulation, Bottom |
| 3 | Door Gasket |
| 4 | front frame |
| 5 | Bottom Trim |
| 8 | Oven Liner (See Page 5) |
| 9 | Insulation, Top and Sides |
| 10 | Control Frame Support |
| 11 | Module Air Baffle |
| 12 | Compartment Top |
| 14 | Latch Assembly (See Page 6) |
| 15 | Collector Box |
| 17 | module support assembly |
| 18 | shim |
| 18 | WPL 4159451 |
| 18 | nut (3) |
| 18 | Module Brace |
| 19 | Microwave Module (Complete Unit Not Available, Order Component Parts) |
| 20 | Module, Trim |
| 21 | Control Frame Support |
| 22 | Exhaust Shield |
| 23 | Vent Box |
| 25 | Strain Relief Bushing |
| 26 | Cabinet Back Duct |
| 27 | Cabinet Side Upper |
| 28 | Vent Tube |
| 29 | Vent Tube, Retainer |
| 30 | Cabinet Side Extension |
| 31 | Trim Bracket |
| 32 | Intake Box Back |
| 35 | Insulation, Rear |
| 36 | Rear Anchor |
| 37 | Cabinet Side Lower |
| 38 | Cam Plate (Left Left) |
| 38 | Cam Plate (Right) |
| 39 | Hinge Assembly |
| 40 | Door Spring (Self Cleaning Oven) |
| 41 | Spring, Anchor |
| 42 | Cabinet Back |
| 43 | cabinet support (l.h.) |
| 43 | SCREW |
| 43 | cabinet support (r.h.) |
| 44 | Rotisserie Motor |
| 45 | WP488234 Whirlpool Air Conditioner Screw |
| 45 | Washer, Lock Tooth |
| 45 | Rotisserie Motor Mounting Plate |
| 47 | RANGE ONLY 40W 120V APPL BULB |
| 48 | Socket, Lamp |
| 49 | Light Shield |
| 50 | WPL 4159188 |
| 50 | Spacer |
| 51 | WPL 4164337 |
| 52 | WPL 4164338 |
| 52 | WPL 4159469 |
| 52 | WPL 4164336 |
| 53 | WPL 4164406 |
| 54 | WPL 4173082 |
| 54 | 4159493 Whirlpool Lockwasher |
| 54 | WPL 4159458 |
| 55 | Washer, Flat |
| 55 | Screw (2) |
| 55 | WPL 4164586 |
| 56 | WPL 4159046 |
| 57 | Bushing |
| 58 | WPL 4173072 |
| 59 | WPL 4173085 |
| 59 | Base Cover Screws |
| 59 | Screw (4) |
| 60 | WPL 4164600 |
| 61 | WPL 4173016 |
| 61 | WPL 4173017 |
| 62 | Air Du |
| 62 | Air Duct (Upper Oven) (Left) |
| 63 | WPL 4168170 |
| 64 | Probe Cover |
| 65 | Bushing |
| 65 | Back Cover |
| 66 | WPL 4175379 |
| 66 | WPL 4173079 |
| 67 | Door Gasket |
| 68 | Vent, Lower Trim (Screw (2)) |
| 68 | Cover, Seal End |
| 69 | Clamp, Conduit |
| 69 | Screw, (2) |
| 70 | WPL 3178059 |
| 71 | WPL 3178066 |
| 71 | Screw, No.10-24 X 3/8`` Hex TCS |
