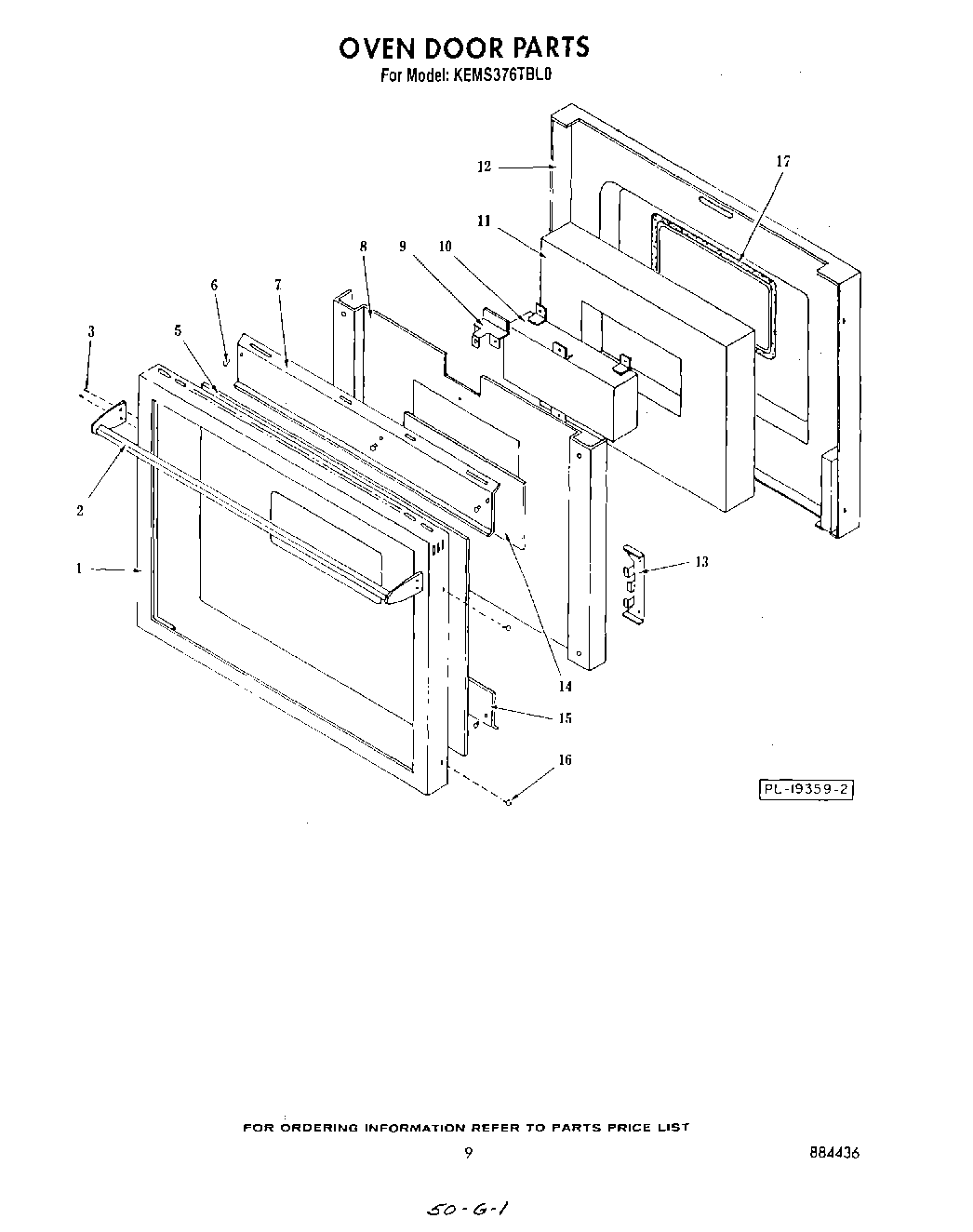

KEMS376TWH0 07 – OVEN DOOR

KEMS376TWH0 07 – OVEN DOOR

Written by

in

KEMS376TWH0 07 – OVEN DOOR

Products

Position	Product
1	Almond
1	Door Frame
1	White
2	Door Handle
2	Door Handle (White)
2	Door Handle (Almond)
5	Door Glass
5	Door Glass (Almond)
5	Door Glass (White)
6	Rubber Bumper
7	Air Baffle
8	Retainer, Insulation
9	Bracket, Lock
10	Window Package
11	Insulation
12	Door Liner
13	Screw, (2)
13	Bracket, Glass Mtg.
14	Glass, Reflective
15	Air Baffle, Bottom
16	Vent, Lower Trim (Screw (2))
17	Seal, Window
17	Screw, 8-32 X 3/8“ PFHMS
