KEMS376TWH0 10 – MICROWAVE DOOR
Written by
in

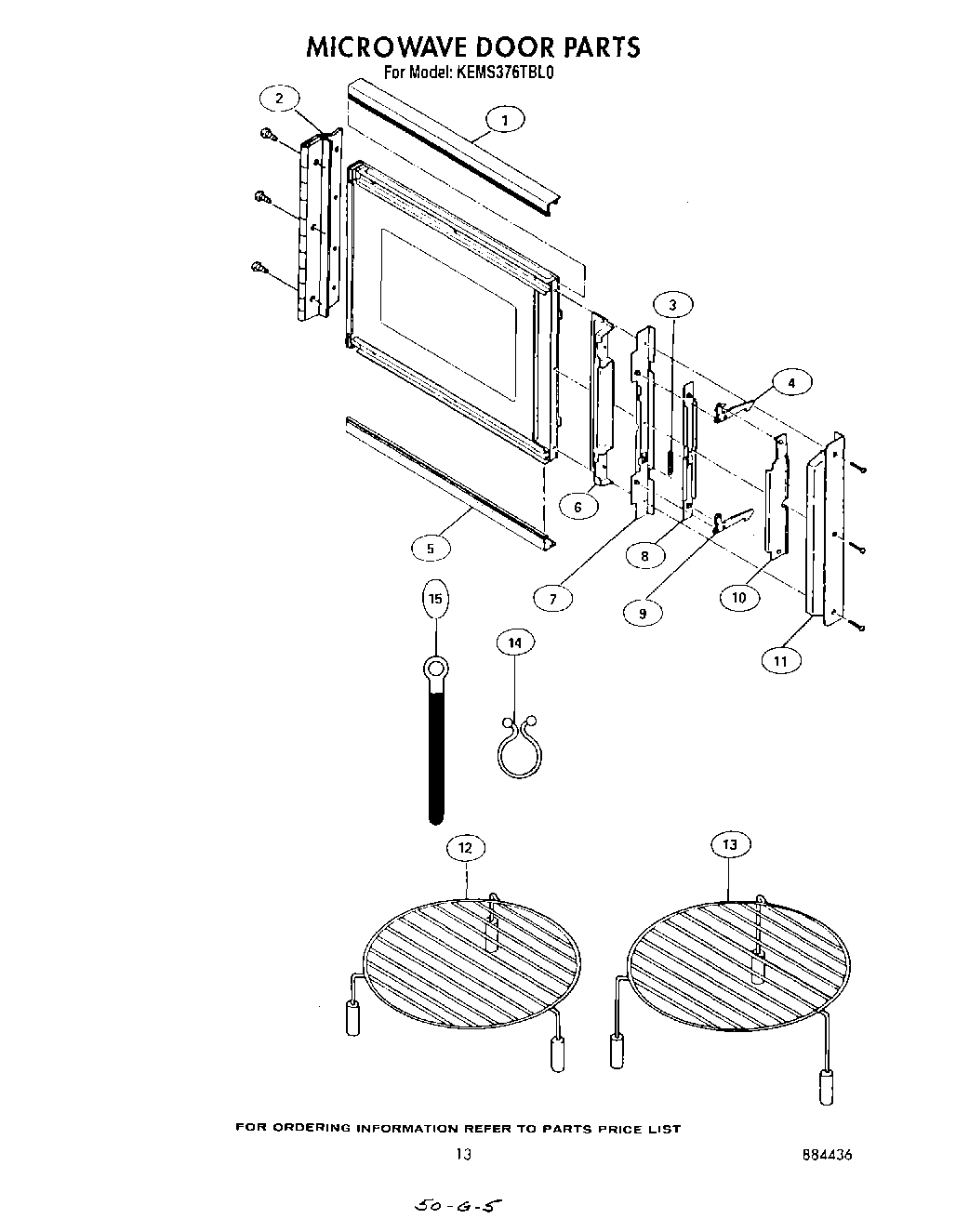

KEMS376TWH0 10 – MICROWAVE DOOR
Products
Position
Product
NI
xDoor, Complete
1
Trim, Upper Door (White)
1
Trim, Upper Door (Almond)
1
trim, upper door
2
Screw, Door Hinge Mounting (3)
2
Hinge, Door
2
hinge, door
3
spring, latch
4
catch, upper latch
5
trim, door lower
5
Trim, Door Lower (Almond)
5
Trim, Door Lower (White)
6
Trim, Door Panel Frame (Almond)
6
trim, door panel fram
6
Trim, Door Panel Frame (White)
7
plate, latch
8
lever, joint
9
catch, lower latch
10
Lever, Latch Release (Almond)
10
lever, latch release
10
Lever, Latch Release (White)
11
handle, door
11
Handle, Door (Almond)
11
Handle, Door (White)
11
Handle, Door (xScrews, Latch Cover Mounting (3))
12
rack, broiling
13
rack, baking
14
wire tie, small
15
wire tie, large
←
