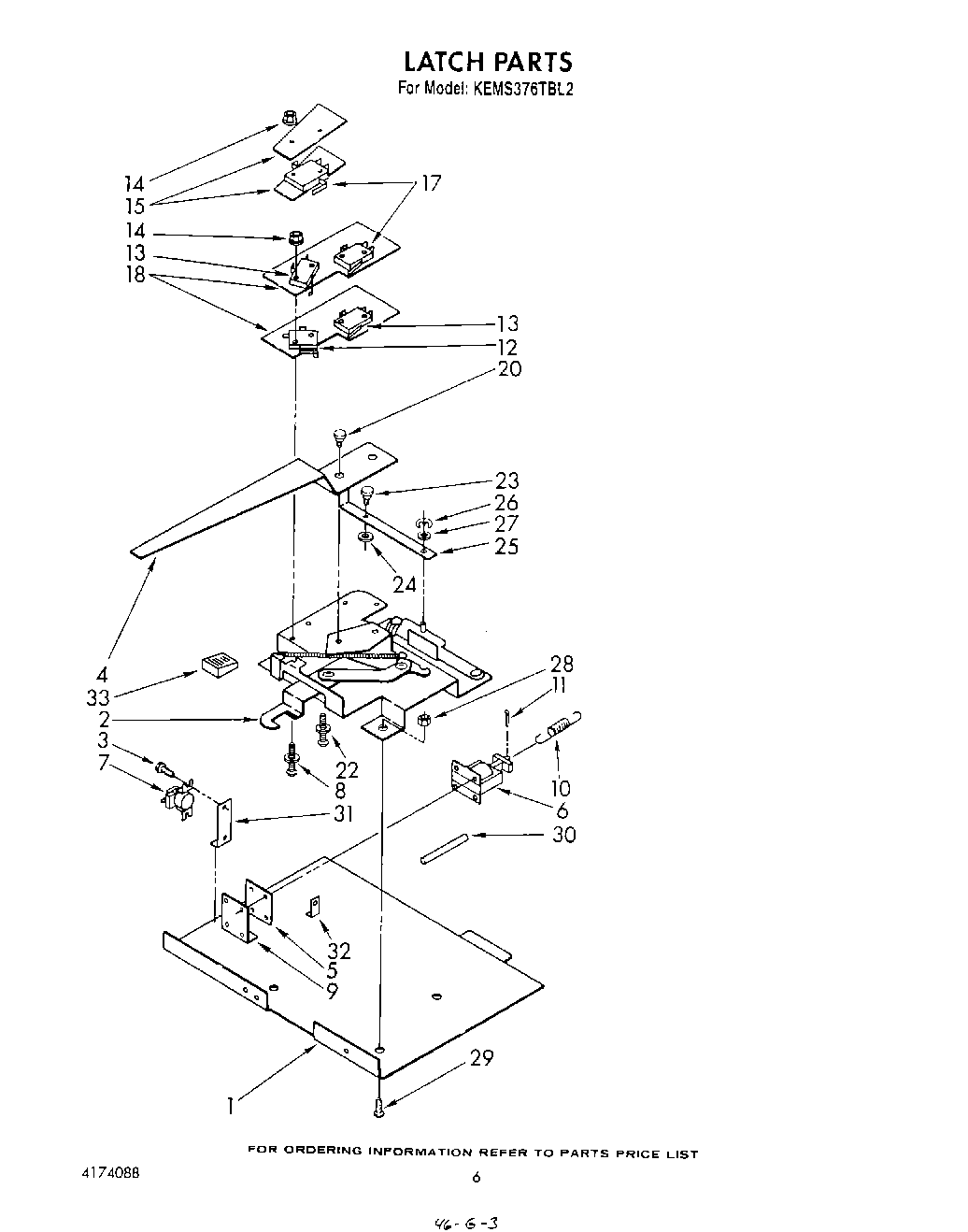

KEMS376TWH1 06 – LATCH

Products

Position	Product
1	Plate, Latch
2	Mechanism, Latch
3	Screw, No.10-24 X 3/8“ Hex TCS
4	lever, latch
4	Spacer, Latch Lever (Lower Oven) Model KEBS245SBL1
5	Solenoid Spacer
6	Solenoid
7	Thermal Switch
7	Screw
8	Machine Screw, 4-40 X 1 3/4
9	Screw (2)
9	Solenoid Plate
10	Solenoid Spring
11	Cotter Pin
12	Latch Switch With Roller
13	Latch Switch
14	Nut (2)
15	Insulator
17	Latch Switch (2)
18	Insulator (2)
20	Shoulder Screw Latch Lever Upper Oven
22	Screw, No.4-40 X 1 1/4“ Hex
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Screw, No.10-24 X 3/8“ PTHMS
30	Sleeve, Bulb
31	Bracket, Mounting Safety Switch
32	Bracket, Harness
32	screw (4)
33	Knob, Latch Lever
33	Screw (2)
