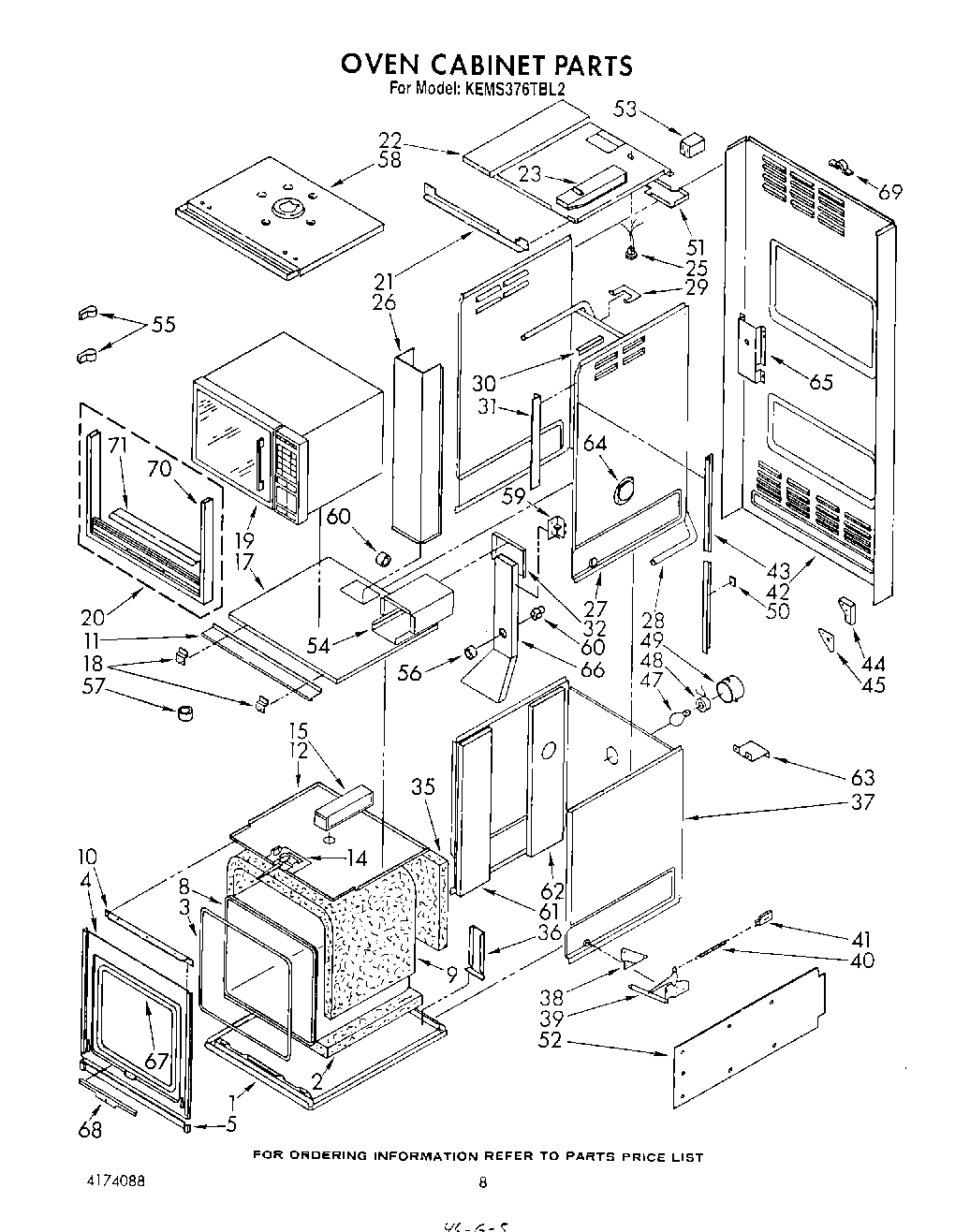

KEMS376TWH1 08 – OVEN CABINET

KEMS376TWH1 08 – OVEN CABINET

Written by

in

KEMS376TWH1 08 – OVEN CABINET

Products

PositionProduct
1Main Bottom (Includes Oven Support And Main Bottom)
2Insulation, Bottom
3Door Gasket
4front frame
5Bottom Trim
8Oven Liner (See Page 8)
9Insulation, Top and Sides
10Control Frame Support
11Module Air Baffle
12Compartment Top
14Latch Assembly (See Pages 6 & 7)
15Collector Box
17module support assembly
18Module Brace
18nut (3)
18shim
18WPL 4159451
19Microwave Module (Complete Unit Not Available, Order Component Parts)
20Module, Trim
21Control Frame Support
22Exhaust Shield
23Vent Box
25Strain Relief Bushing
26Cabinet Back Duct
27Cabinet Side Upper
28Vent Tube
29Vent Tube, Retainer
30Cabinet Side Extension
31Trim Bracket
32Intake Box Back
35Insulation, Rear
36Rear Anchor
37Cabinet Side Lower
38Cam Plate (Right)
38Cam Plate (Left Left)
39Hinge Assembly
40Door Spring (Self Cleaning Oven)
41Spring, Anchor
42Cabinet Back
43cabinet support (l.h.)
43cabinet support (r.h.)
43SCREW
44Rotisserie Motor
45WP488234 Whirlpool Air Conditioner Screw
45Washer, Lock Tooth
45Rotisserie Motor Mounting Plate
47RANGE ONLY 40W 120V APPL BULB
48Socket, Lamp
49Light Shield
50WPL 4159188
50Spacer
51WPL 4164337
52WPL 4159469
52WPL 4164336
52WPL 4164338
53WPL 4164406
54WPL 4173082
54WPL 4159458
544159493 Whirlpool Lockwasher
55Washer, Flat
55Screw (2)
55WPL 4164586
56WPL 4159046
57Bushing
58WPL 4173072
59WPL 4173085
59Base Cover Screws
59Screw (4)
60WPL 4164600
61WPL 4173017
61WPL 4173016
62Air Du
62Air Duct (Upper Oven) (Left)
63WPL 4168170
64Probe Cover
65Bushing
65Back Cover
66WPL 4173079
66WPL 4175379
67Door Gasket
68Cover, Seal End
68Vent, Lower Trim (Screw (2))
69Screw, (2)
69Clamp, Conduit
70WPL 3178059
71WPL 3178066
71Screw, No.10-24 X 3/8“ Hex TCS
