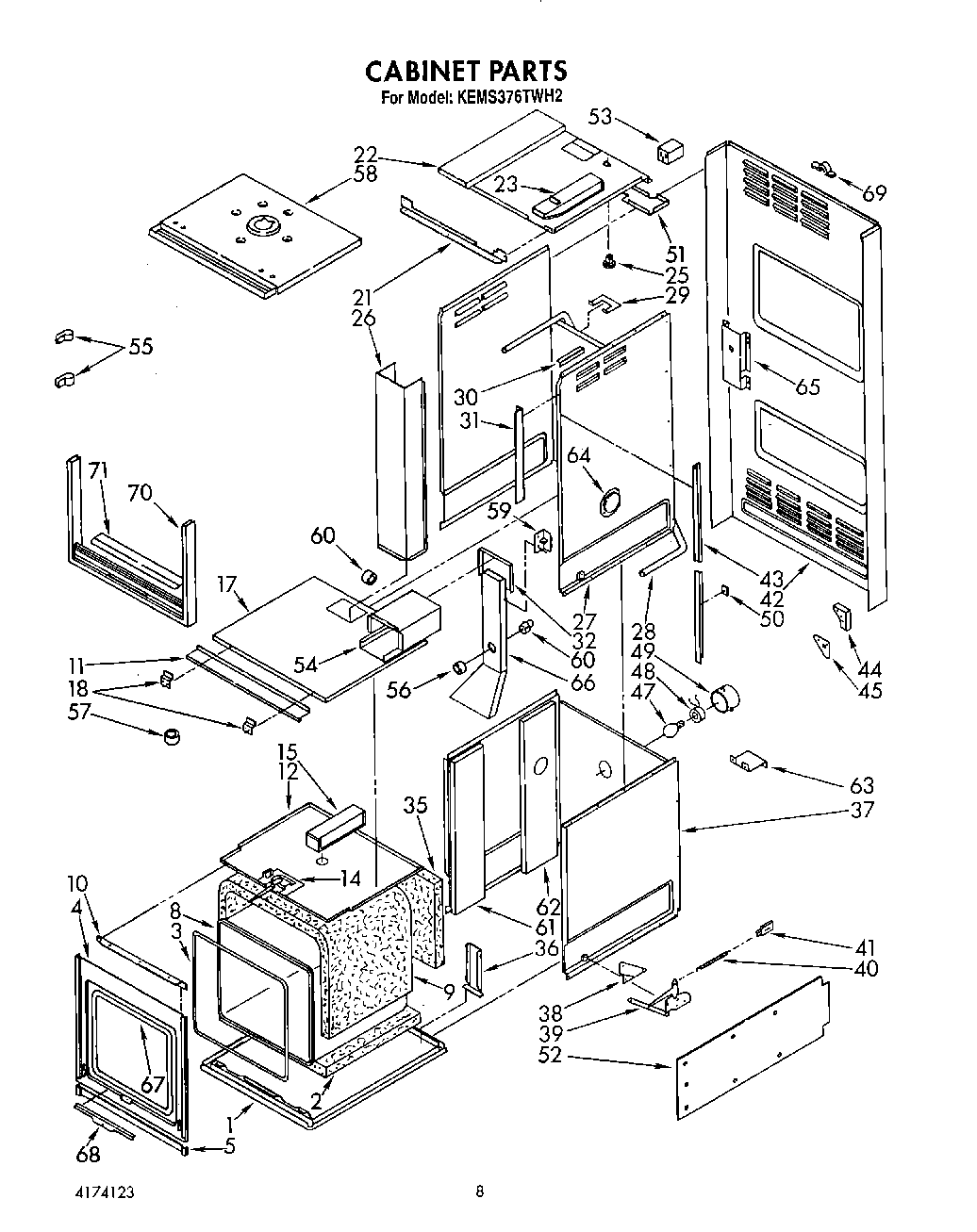

KEMS376TWH2 08 – CABINET
Products
Position
Product
1
Main Bottom (Includes Oven Support And Main Bottom)
2
Insulation, Bottom
3
Door Gasket
4
front frame
5
Bottom Trim
8
Oven Liner (See Page 5)
9
Insulation, Top and Sides
10
Control Frame Support
11
Module Air Baffle
12
Compartment Top
14
Latch Assembly (See Page 6)
15
Collector Box
17
module support assembly
18
shim
18
nut (3)
18
Module Brace
18
WPL 4159451
21
Control Frame Support
22
Exhaust Shield
23
Vent Box
25
Strain Relief Bushing
26
Cabinet Back Duct
27
Cabinet Side Upper
28
Vent Tube
29
Vent Tube, Retainer
30
Cabinet Side Extension
31
Trim Bracket
32
Intake Box Back
35
Insulation, Rear
36
Rear Anchor
37
Cabinet Side Lower
38
Cam Plate (Right)
38
Cam Plate (Left Left)
39
Hinge Assembly
40
Door Spring (Self Cleaning Oven)
41
Spring, Anchor
42
Cabinet Back
43
SCREW
43
cabinet support (l.h.)
43
cabinet support (r.h.)
44
Rotisserie Motor
45
Washer, Lock Tooth
45
Rotisserie Motor Mounting Plate
45
WP488234 Whirlpool Air Conditioner Screw
47
RANGE ONLY 40W 120V APPL BULB
48
Socket, Lamp
49
Light Shield
50
WPL 4159188
50
Spacer
51
WPL 4164337
52
WPL 4159469
52
WPL 4164338
52
WPL 4164336
53
WPL 4164406
54
WPL 4159458
54
WPL 4173082
54
4159493 Whirlpool Lockwasher
55
Washer, Flat
55
WPL 4164586
55
Screw (2)
56
WPL 4159046
57
Bushing
58
WPL 4173072
59
WPL 4173085
59
Base Cover Screws
59
Screw (4)
60
WPL 4164600
61
WPL 4173017
61
WPL 4173016
62
Air Du
62
Air Duct (Upper Oven) (Left)
63
WPL 4168170
64
Probe Cover
65
Back Cover
65
Bushing
66
WPL 4173079
66
WPL 4175379
67
Door Gasket
68
Cover, Seal End
69
Screw, (2)
69
Clamp, Conduit
70
WPL 3179703
70
WPL 3179702
71
Screw, No.10-24 X 3/8“ Hex TCS
71
WPL 3178069
←
