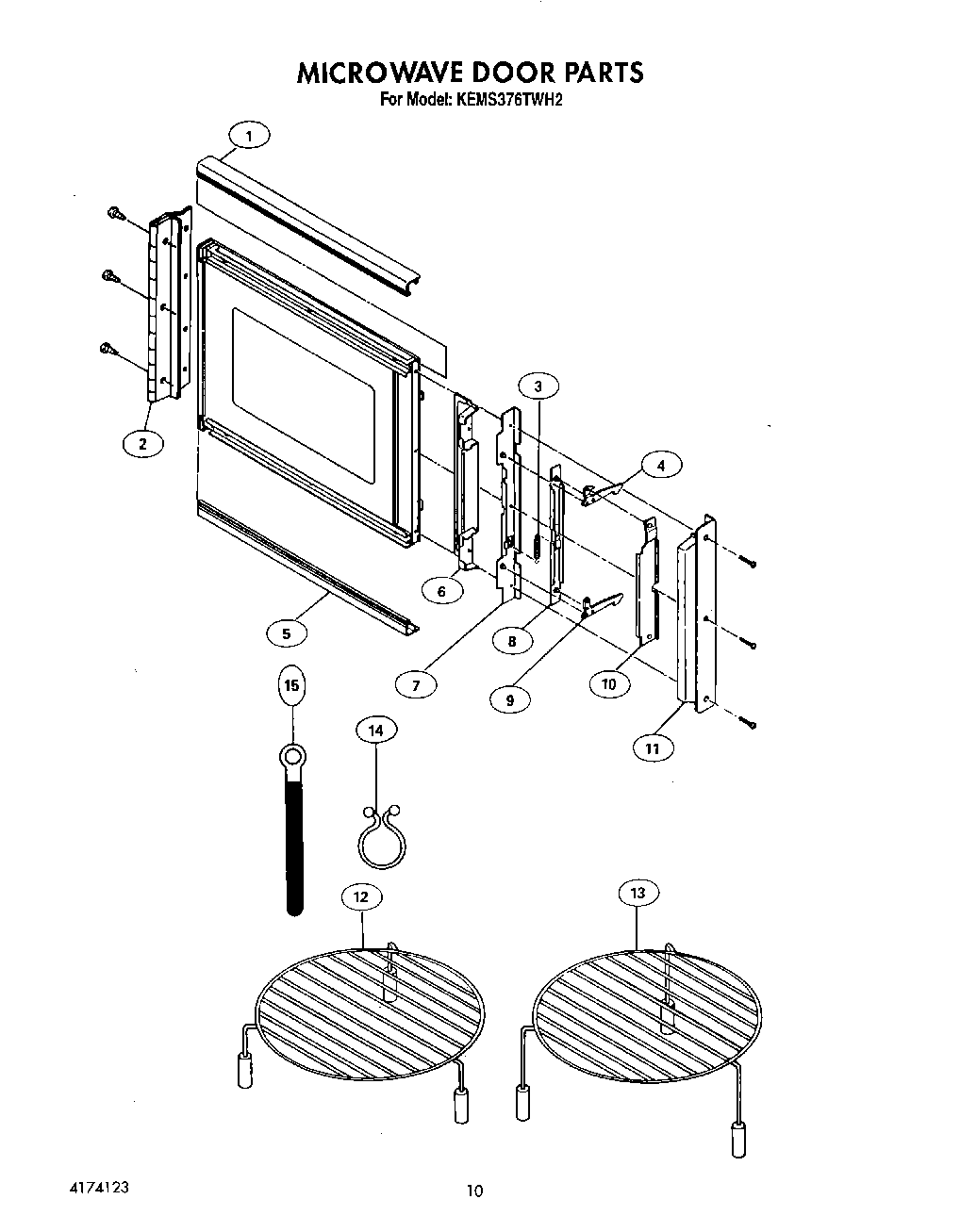

KEMS376TWH2 09 – MICROWAVE DOOR

KEMS376TWH2 09 – MICROWAVE DOOR

Written by

in

KEMS376TWH2 09 – MICROWAVE DOOR

Products

PositionProduct
1Trim, Upper Door (White)
1Trim, Upper Door (Almond)
2Screw, Door Hinge Mounting (3)
2Hinge, Door
3spring, latch
4catch, upper latch
5Trim, Door Lower (Almond)
5Trim, Door Lower (White)
6Trim, Door Panel Frame (White)
6Trim, Door Panel Frame (Almond)
7plate, latch
8lever, joint
9catch, lower latch
10Lever, Latch Release (White)
10Lever, Latch Release (Almond)
11Handle, Door (xScrews, Latch Cover Mounting (3))
11Handle, Door (White)
11Handle, Door (Almond)
12rack, broiling
13rack, baking
14wire tie, small
15wire tie, large
71Door, Complete (White)
71Door, Complete (Almond)
