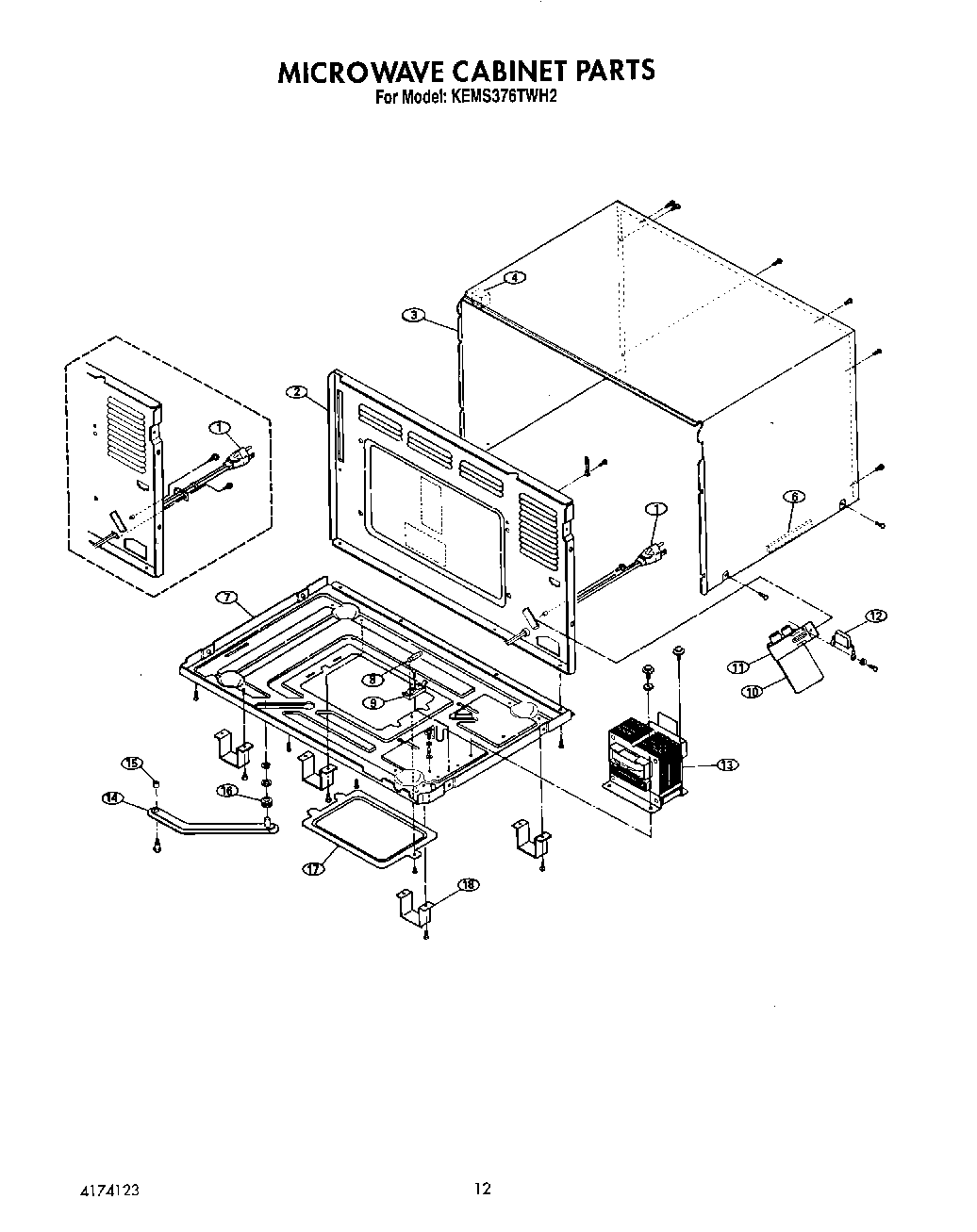

KEMS376TWH2 11 – MICROWAVE CABINETadmin2025-04-26T10:30:20+00:00KEMS376TWH2 11 – MICROWAVE CABINET
Products
| Position | Product |
|---|
| 1 | Power Cord |
| 1 | Screw, Grounding (Power Cord) |
| 1 | Screw, Bushing Holder (Before Serial Number 1127) |
| 1 | Washer, Grounding (Power Cord) |
| 2 | Cabinet Back |
| 3 | Screws, Cabinet Back, Top And Sides (28) |
| 3 | Cabinet Top & Sides |
| 4 | Seal, Cabinet Side |
| 6 | Seal, Cabinet Lower Side |
| 7 | Base, Cabinet |
| 8 | Fuse, Monitor |
| 9 | Holder, Fuse |
| 10 | Capacitor |
| 11 | WPL 4164567 |
| 11 | Capacitor Strap |
| 12 | Washer, Diode Mounting |
| 12 | Screw, Diode Mounting |
| 12 | Diode |
| 13 | Transformer |
| 13 | Screw, Transformer Mounting (2) |
| 13 | Washer, Tranformer Mounting |
| 14 | Cam, Door |
| 15 | Screw, Door Cam Mounting |
| 15 | Spacer, Door Cam |
| 16 | E-Ring, Door Cam Roller |
| 16 | Roller, Door CAm |
| 16 | WPL 4164556 |
| 17 | Cover, Turn- table |
| 18 | Foot, Cabinet (4) |
| 18 | WPL 4164548 |
