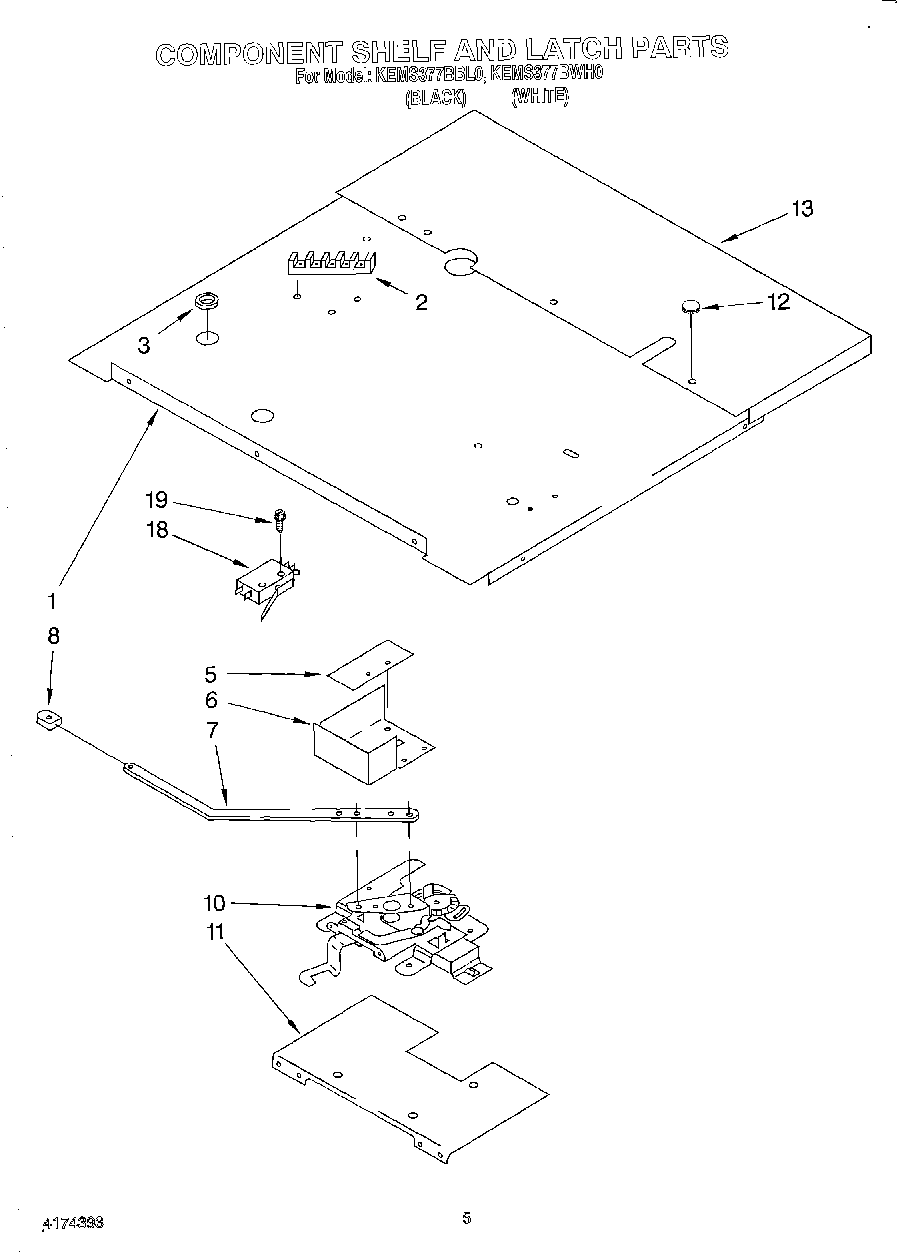

KEMS377BBL0 04 – COMPONENT SHELF AND LATCH

Products

PositionProduct
1Shelf, Component
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Bushing, Electric
5Insulator, Switch
6Screw,
6Guard, Latch
7Handle, Latch
7Screw
8Knob, Latch Handle
8Screw
10Latch, Mechanism
11Plate, Mounting
12Plug, Button
13Extension, Shelf
13WP3177991 Whirlpool Screw
13Screw
13panel, top (screw, 10a x 3/8 (3))
18Switch, latch
19Screw
