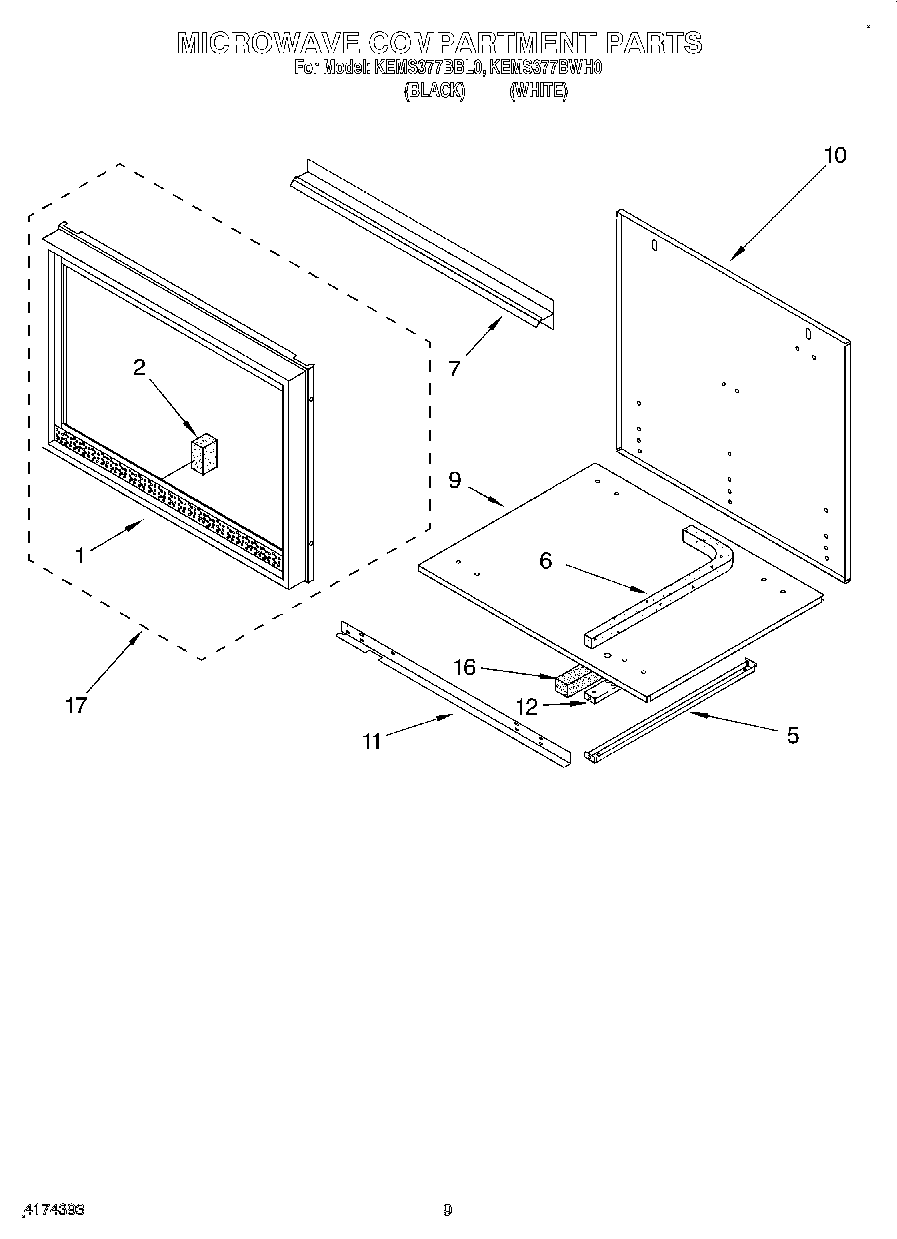

KEMS377BBL0 07 – MICROWAVE COMPARTMENTadmin2025-04-26T10:30:40+00:00KEMS377BBL0 07 – MICROWAVE COMPARTMENT
Products
| Position | Product |
|---|
| 1 | Frame, Outer (White Model) |
| 1 | Frame, Outer (Black Model) |
| 2 | Block, Foam |
| 5 | Rail, Microwave |
| 6 | Seal, Foam |
| 7 | Vent, Middle Trim (White Model) |
| 7 | Vent, Middle Trim (Black Model) |
| 9 | Support, Module |
| 10 | Back, Microwave Compartment |
| 11 | Ext. Module Support |
| 12 | Screw |
| 12 | Rail, Chassis |
| 16 | Seal, Foam |
| 17 | Assembly-Frame & Seal (Black Model) |
| 17 | Assembly-Frame & Seal (White Model) |
