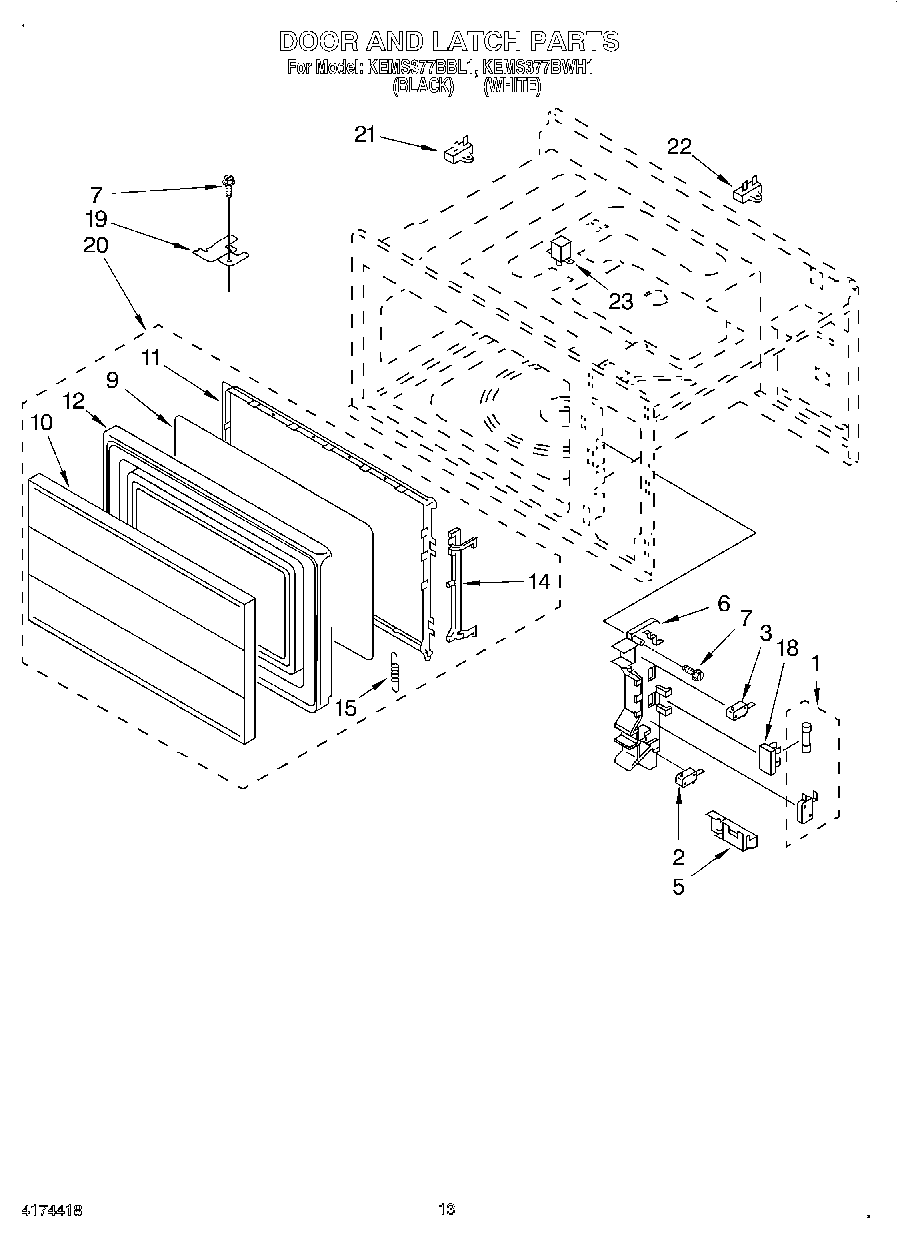

KEMS377BBL1 11 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assy.
3	4392027 Whirlpool Microwave Primary Switch
5	Latch Lever
6	Latch Hook
7	SCREW
7	Screw
9	Seal, Door (Not a Serviceable Part)
10	Screen, Door (Black)
10	Screen, Door (White)
11	Choke, Cover
12	Frame, Door (Not Serviceable)
14	Latch, Door
15	Spring, Latch
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (White)
20	Door, Complete (Black)
21	Fuse, Temp
22	Fuse, Magnetron Temp
22	Screw
23	Screw
23	Connector
