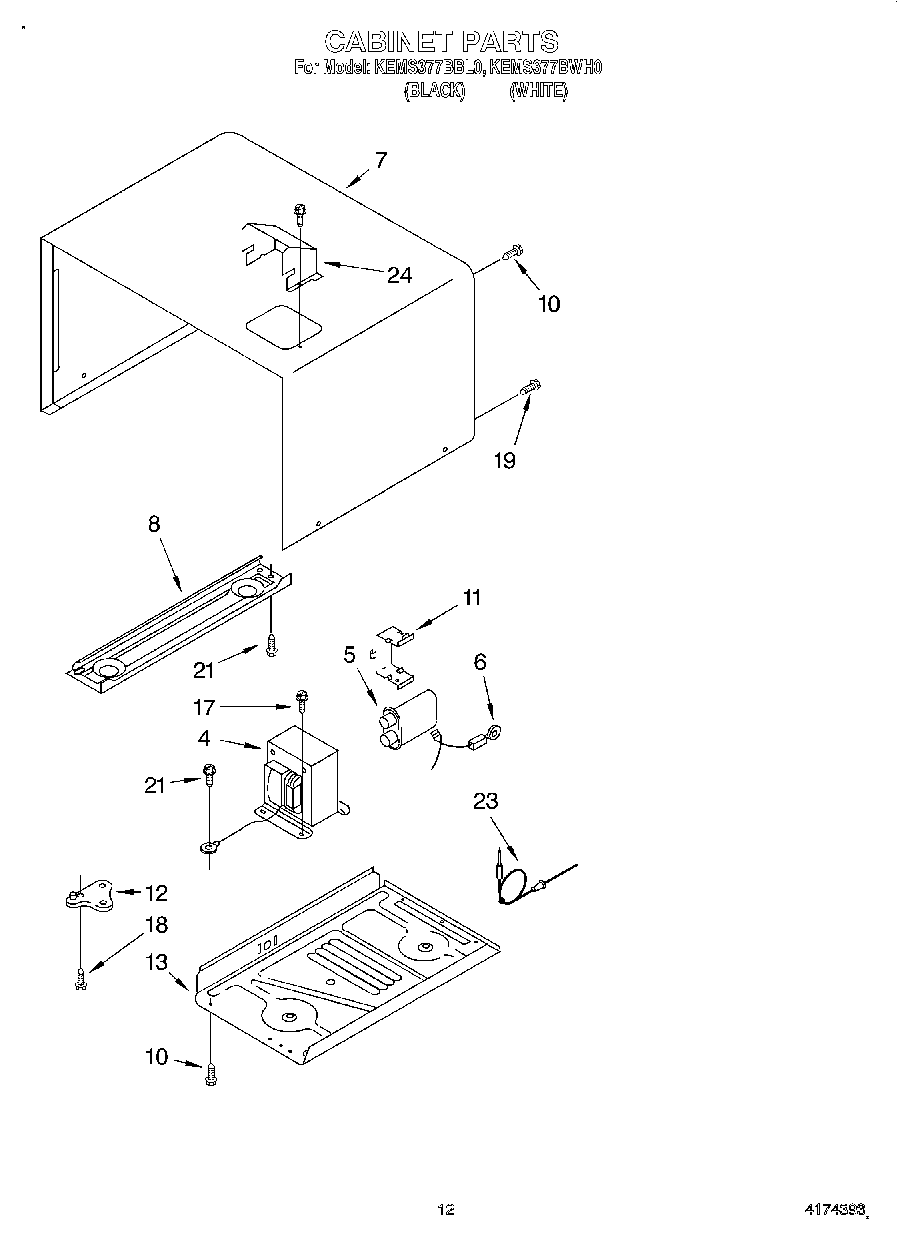

| 4 | Transformer |
| 5 | Capacitor |
| 6 | Rectifier |
| 6 | Screw |
| 7 | Outer Cabinet (White Model) |
| 7 | Outer Cabinet (Black Model) |
| 8 | Base Plate, Left Side |
| 10 | Screw |
| 11 | Screw |
| 11 | Bracket, Capacitor |
| 11 | Screw |
| 12 | Hinge, Lower |
| 13 | Base Plate, Right Side |
| 17 | Screw |
| 18 | Screw |
| 19 | Screw |
| 21 | Screw |
| 23 | Probe, Temperature |
| 24 | Duct, Exhaust (Front) |
