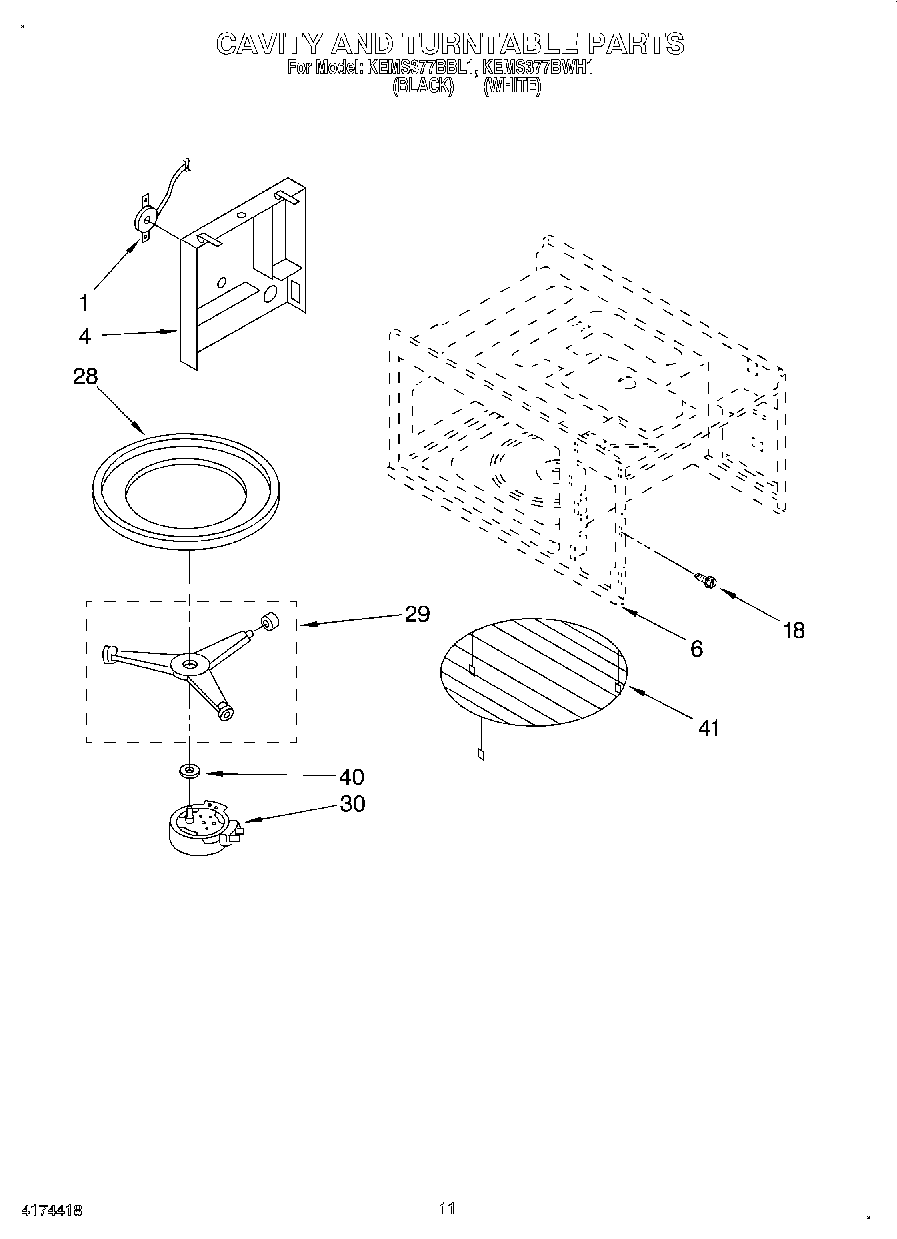

KEMS377BWH1 09 – CAVITY AND TURNTABLE

Products

PositionProduct
1Screw
1Sensor, Absolute Humidity
4Duct, Sensor
6Cavity, Oven (Not a Serviceable Part)
18SCREW
28Tray, Glass
29Support, Turntable
30Motor, Turntable
40Gasket, Turntable
41Rack, Oven
