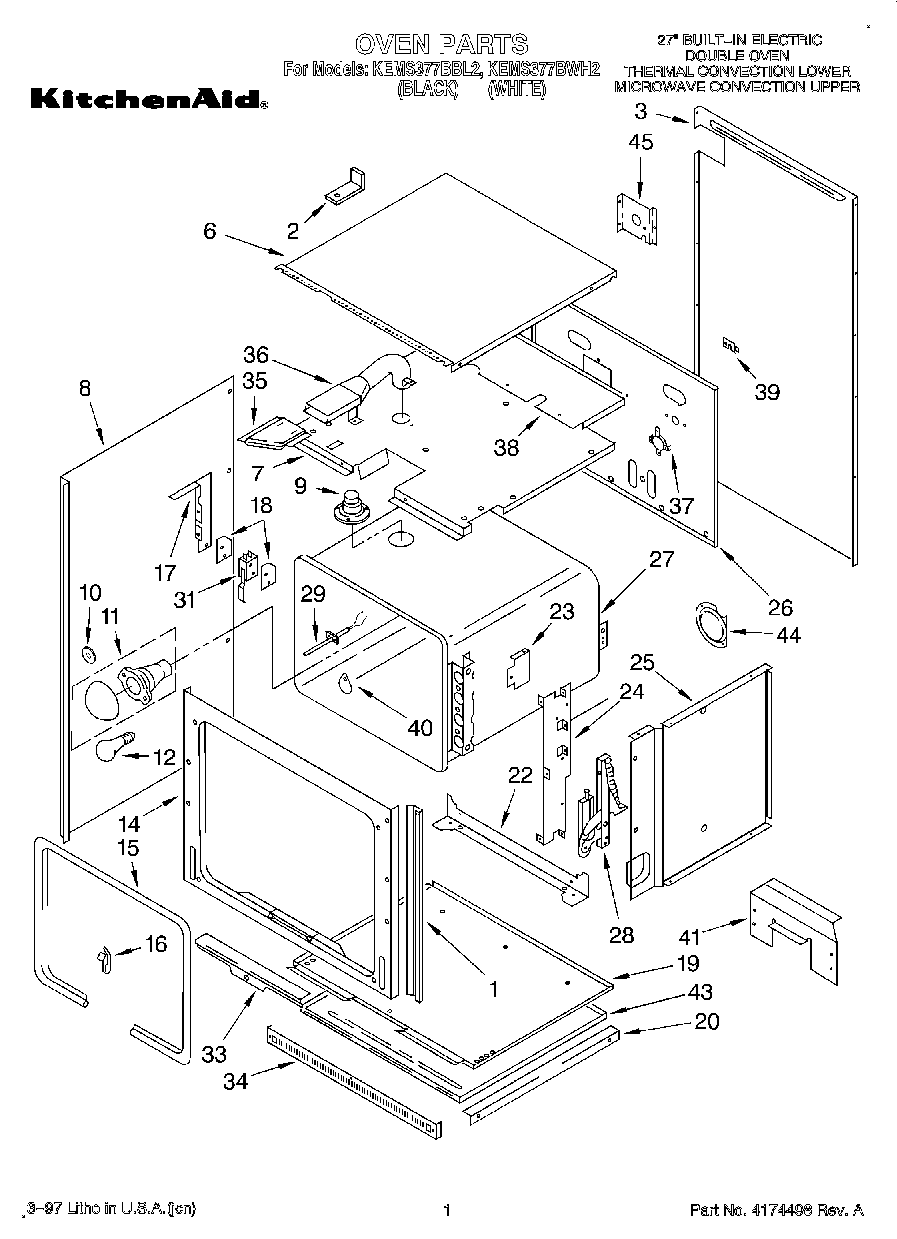

KEMS377BWH2 01 – OVEN

Products

Position	Product
1	Side Trim, Door (Black Model)
1	Trim, Side Door (White Model)
2	Brace, M/W Back
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Right Hand)
8	Side, Cabinet (Left Hand)
9	Tube, Vent
10	WP3184533 Whirlpool Range Light Lens Gasket
11	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Screw (6)
28	Hinge, Door
29	Sensor, Heat
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	Screw (4)
33	Retainer, Seal
33	Vent, Lower Trim (Screw (2))
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Black)
34	Trim, Lower Vent (White Model)
35	Tube, Vent Female
35	Tube, Vent (Female)
36	Tube, Vent Male
37	Fuse, Safety
37	Screw
38	Extension, Shelf
39	Cover, Cap Tube
39	Screw
40	Button, Plug
41	WPL 3183752
43	Bottom, Oven
44	WP3177991 Whirlpool Screw
44	Probe Cover
45	Bracket, Conduit
45	Insulation, Back
45	Insulation, Oven
