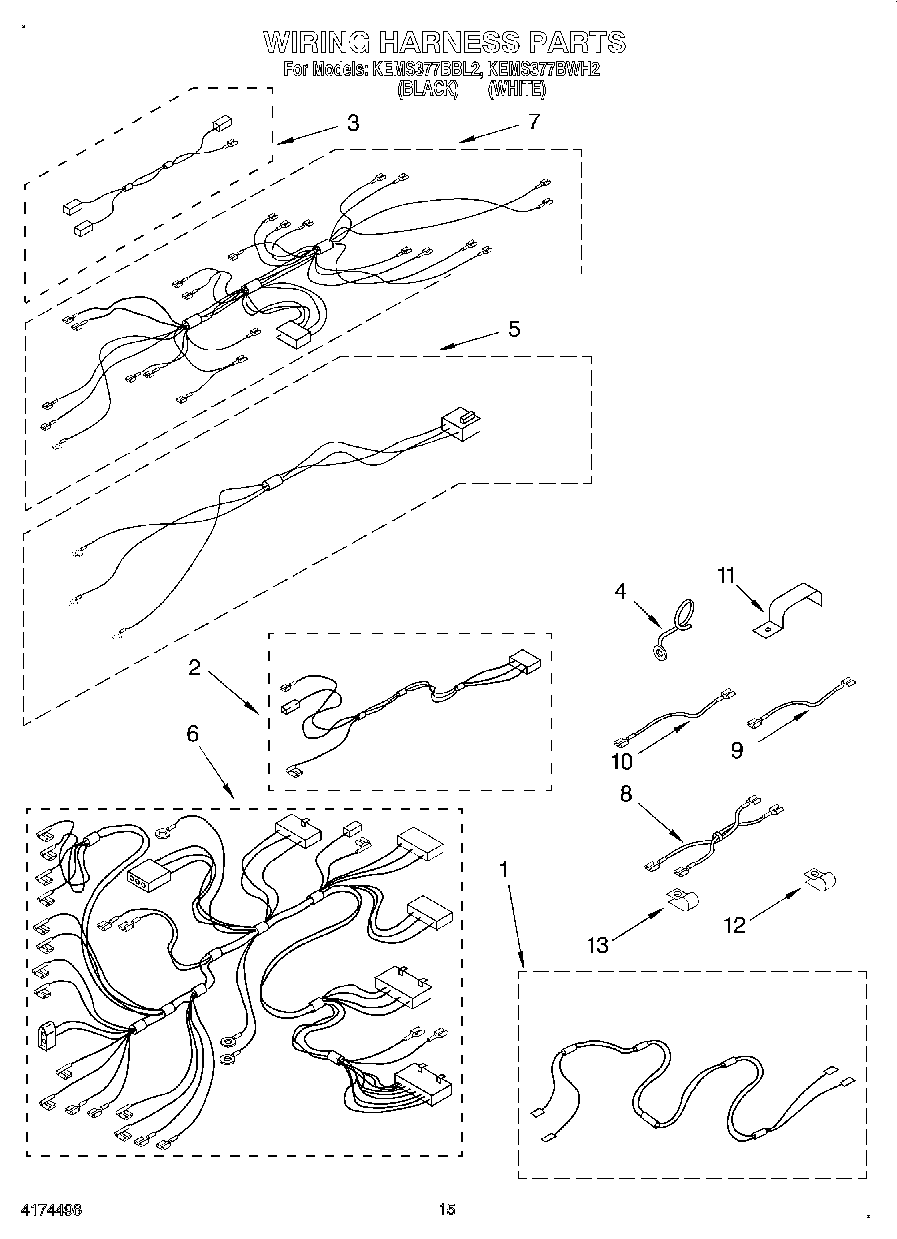

KEMS377BWH2 13 – WIRING HARNESS, OPTIONALadmin2025-04-26T10:29:30+00:00KEMS377BWH2 13 – WIRING HARNESS, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Wiring Harness (Door Switch) Lower) |
| 2 | Harness, Wiring (Latch, Combo) (Base Plate) |
| 3 | Harness, Wiring (Combo-Probe) |
| 4 | Standoff, Wire |
| 5 | Harness, Wiring (Microwave Power) |
| 6 | Harness, Wiring (Main Oven) |
| 7 | Harness, Wiring (Microwave Main) |
| 8 | Harness, Wiring Thermal Protection |
| 9 | H.V. Wire |
| 10 | Sensor Ground Wire |
| 11 | 7111P002-60 Whirlpool Clamp |
| 12 | WP308605 Whirlpool Refrigerator Clamp |
| 13 | WPL 591014 |
| 13 | 1 |
| 13 | 261900 Whirlpool Microwave Spray |
| 13 | Trim, White |
| 13 | Trim, Almond |
| 13 | Trim, Gray |
| 13 | Wire (14 Ga. 200 c Brown) |
| 13 | 18 Ga. 80~c Rating (Red) |
| 13 | Wire (12 Ga. 150 c Black) |
| 13 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 13 | Wire, 25` Roll (Black 14 Ga.) |
| 13 | Wire, 25` Roll (Red 14 Ga.) |
| 13 | Wire, 25`` Roll (White 14 GA.) |
| 13 | 285006 Whirlpool Spray |
| 13 | 72032 Whirlpool Touch Up Paint Black |
| 13 | WP482338 Whirlpool Refrigerator Adhesive |
| 13 | 16515 Whirlpool Clip |
| 13 | 242831 Whirlpool Oven Wire |
| 13 | WP261869 Whirlpool Microwave Paint |
| 13 | Wire (14 Ga. 150 c Blue) |
| 13 | Wire (14 Ga. 150 c Brown) |
| 13 | Wire (14 Ga. 150 c Green) |
| 13 | Wire (14 Ga. 150 c Orange) |
| 13 | Wire (14 Ga. 150 c Yellow) |
| 13 | 350930 Whirlpool White Spray Paint |
