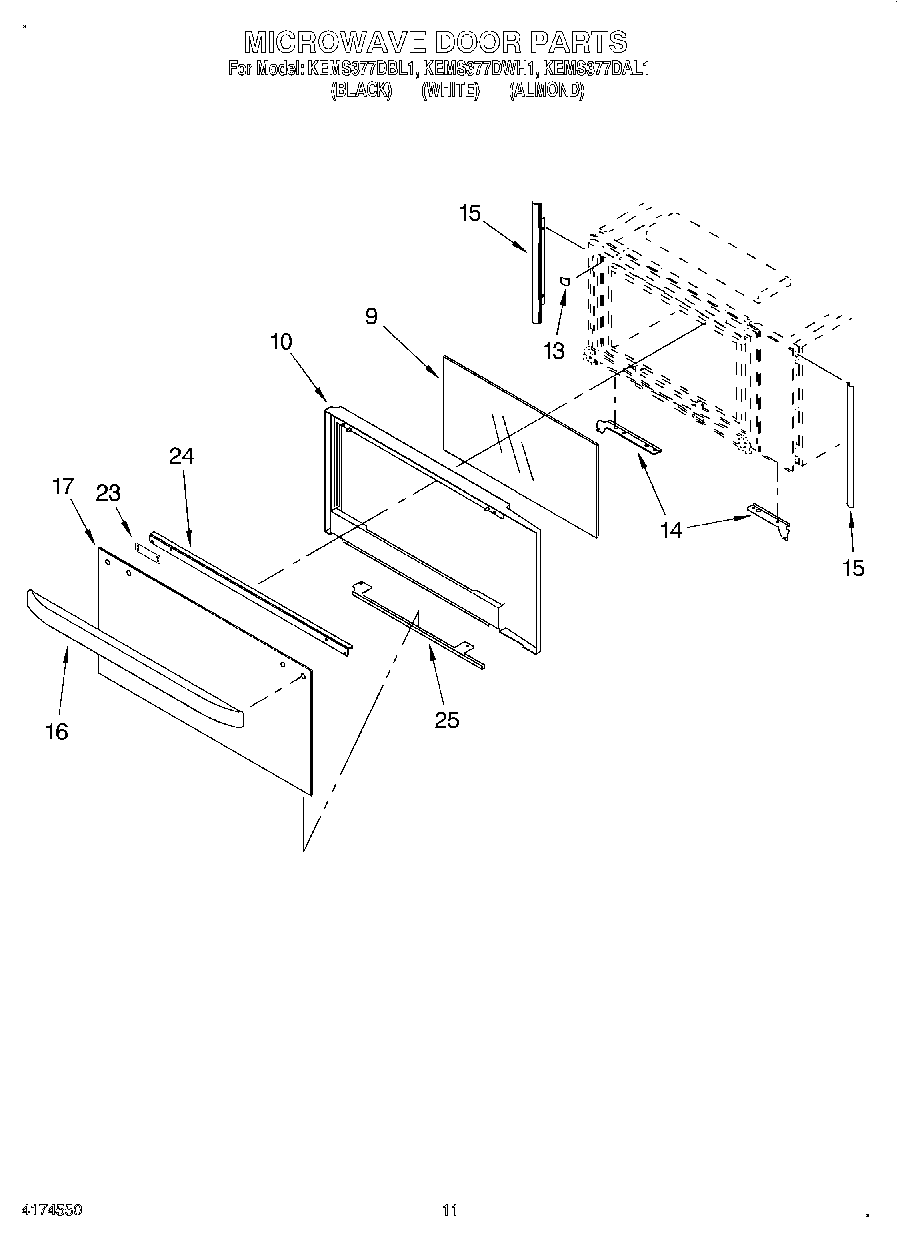

KEMS377DAL1 09 – MICROWAVE DOOR, OPTIONAL

Products

PositionProduct
9Glass, Middle
10Frame, Door
10WP4450038 Whirlpool Screw
13Tape, Foam
14Bracket, Mounting (Right Side)
14Bracket, Mounting (Left Side)
15Filler, Side
16Handle (Black Model)
16Handle (White Model)
16Door Handle (Almond Model)
17Glass, Outer (White Model)
17Glass, Outer (Black Model)
17Glass, Outer (Almond Model)
23Spacer (Stainless)
24Screw
24Bracket, Handle
25Wire (12 Ga. 150 c Black)
2518 Ga. 80~c Rating (Red)
25Wire (14 Ga. 200 c Brown)
251
25Clip, Glass (White Model)
25WPL 591014
25Clip, Glass (Black Model)
25Clip, Glass (Almond Model)
25WPL 4450990
25Wire, 25“ Roll (White 14 GA.)
25261900 Whirlpool Microwave Spray
25Harness, Wire (Latch)
254450950 Whirlpool Oven Conduit
25Harness, Wire (Door Switch)
25Wire (14 Ga. 150 c Yellow)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Green)
25WP482338 Whirlpool Refrigerator Adhesive
2572032 Whirlpool Touch Up Paint Black
25285006 Whirlpool Spray
254450800 Whirlpool Oven Screw
25Wire, 25` Roll (Red 14 Ga.)
25Wire, 25` Roll (Black 14 Ga.)
25WP488366 Whirlpool Refrigerator Clamp
25WP4449809 Whirlpool Screw
2572017 Whirlpool Appliance Touch-Up Paint White
25814381 Whirlpool Pin
25WP4448950 Whirlpool Screw
25Wire (14 Ga. 150 c Brown)
25Wire (14 Ga. 150 c Blue)
25WP261869 Whirlpool Microwave Paint
25242831 Whirlpool Oven Wire
25Transformer
25Ground (M/W)
25Filler Kit (AL)
25Filler Kit (WH)
25Filler Kit (BL)
25350930 Whirlpool White Spray Paint
