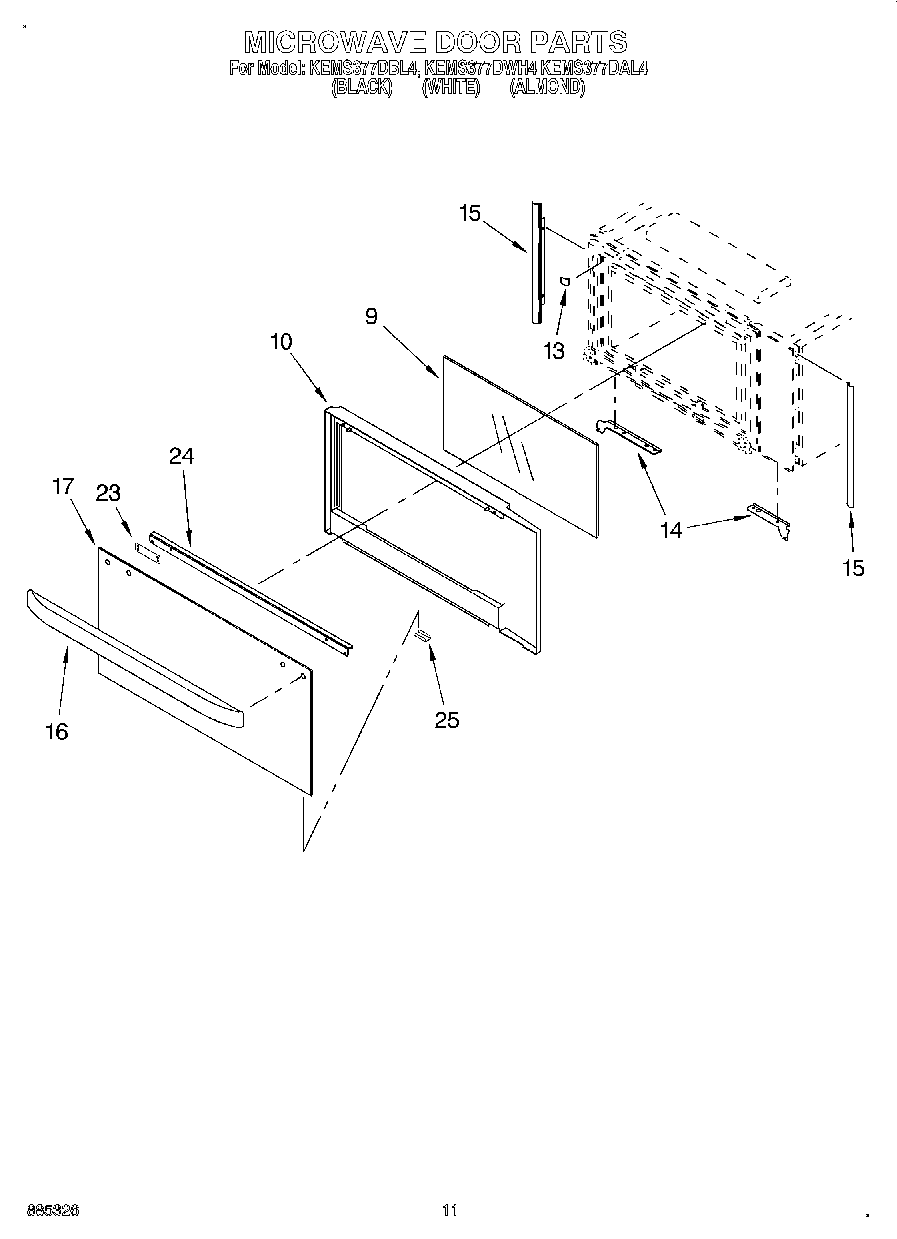

KEMS377DAL4 09 – MICROWAVE DOOR, OPTIONAL

Products

Position	Product
9	Glass, Middle
10	Frame, Door
10	WP4450038 Whirlpool Screw
13	Tape, Foam
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	Filler, Side
16	Handle (Black Model)
16	Handle (White Model)
16	Door Handle (Almond Model)
17	Glass, Outer (White Model)
17	Glass, Outer (Black Model)
17	Glass, Outer (Almond Model)
23	Spacer (Stainless)
24	Screw
24	Bracket, Handle
25	Wire (14 Ga. 200 c Brown)
25	18 Ga. 80~c Rating (Red)
25	Wire (12 Ga. 150 c Black)
25	1
25	261900 Whirlpool Microwave Spray
25	WPL 591014
25	WPL 4454859
25	Retainer, Clip (Almond Model)
25	Wire, 25“ Roll (White 14 GA.)
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
25	Harness, Wire (Door Switch) (Also, order Main Harness)
25	4450950 Whirlpool Oven Conduit
25	Harness, Wire (Latch)
25	Wire (14 Ga. 150 c Yellow)
25	Wire (14 Ga. 150 c Orange)
25	Wire (14 Ga. 150 c Green)
25	WP482338 Whirlpool Refrigerator Adhesive
25	72032 Whirlpool Touch Up Paint Black
25	285006 Whirlpool Spray
25	4450800 Whirlpool Oven Screw
25	Wire, 25` Roll (Red 14 Ga.)
25	Wire, 25` Roll (Black 14 Ga.)
25	WP488366 Whirlpool Refrigerator Clamp
25	WP4449809 Whirlpool Screw
25	72017 Whirlpool Appliance Touch-Up Paint White
25	814381 Whirlpool Pin
25	WP4448950 Whirlpool Screw
25	Wire (14 Ga. 150 c Brown)
25	Wire (14 Ga. 150 c Blue)
25	WP261869 Whirlpool Microwave Paint
25	242831 Whirlpool Oven Wire
25	Transformer
25	Ground (M/W)
25	Filler Kit (AL)
25	Filler Kit (WH)
25	Filler Kit (BL)
25	350930 Whirlpool White Spray Paint
