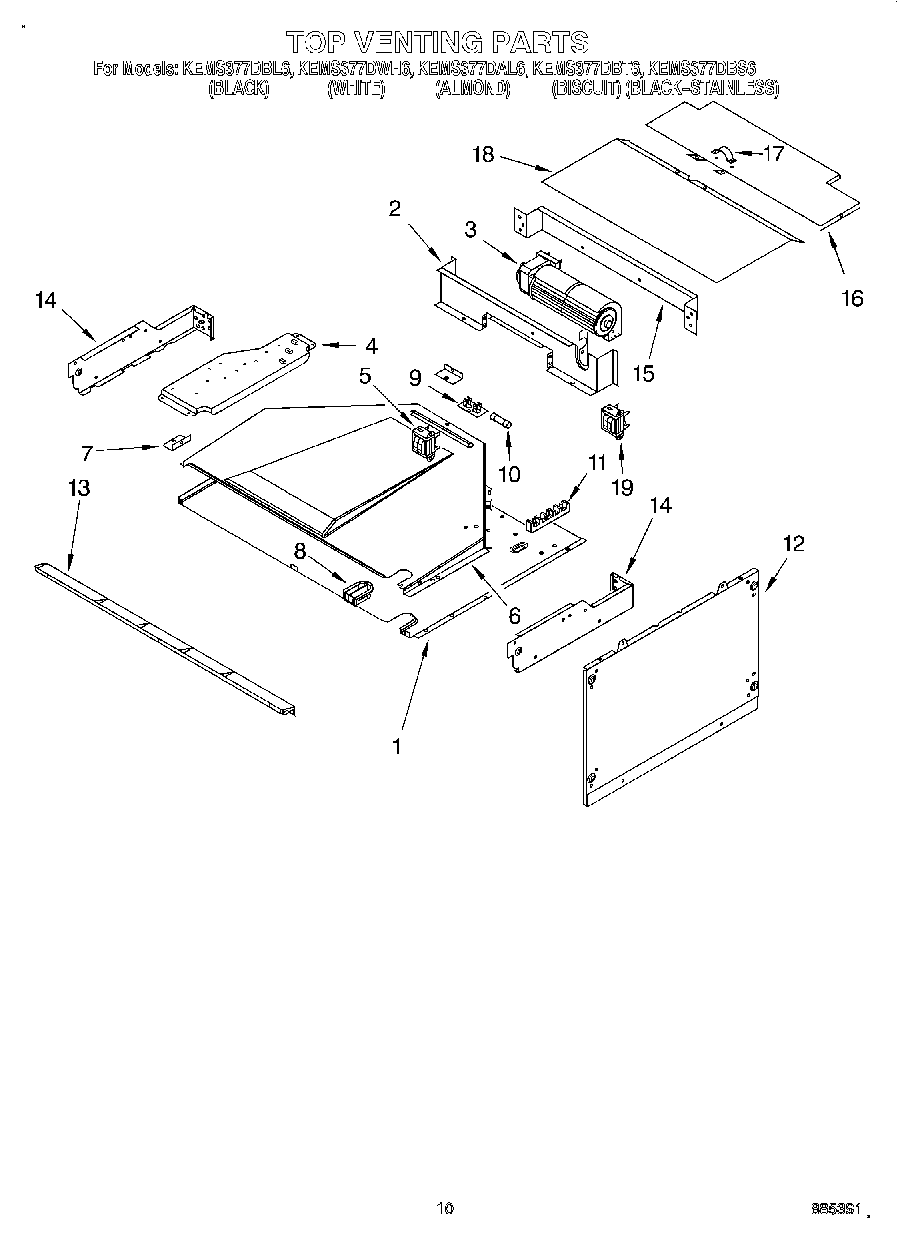

KEMS377DAL6 08 – TOP VENTING

KEMS377DAL6 08 – TOP VENTING

Written by

in

KEMS377DAL6 08 – TOP VENTING

Products

PositionProduct
1Cover, Top
2Baffle, Blower
3Blower
4Plate, Mounting
5WP9760588 Whirlpool Transformer
6Exhaust Duct
7Bracket, Duct
8WP112432 Whirlpool Nut Assembly
8Grommet
9WP4449154 Whirlpool Screw
94454949 Whirlpool Oven Fuse Block
10WPW10017410 Whirlpool Fuse
11WP3387230 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
12Side, Combo
13Vent, Control Panel (Black & White Model)
13WP4450038 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
174448664 Whirlpool Oven Mounting Bracket
18Cover, Top Front
18WP4449809 Whirlpool Screw
19Transformer, Control Panel
