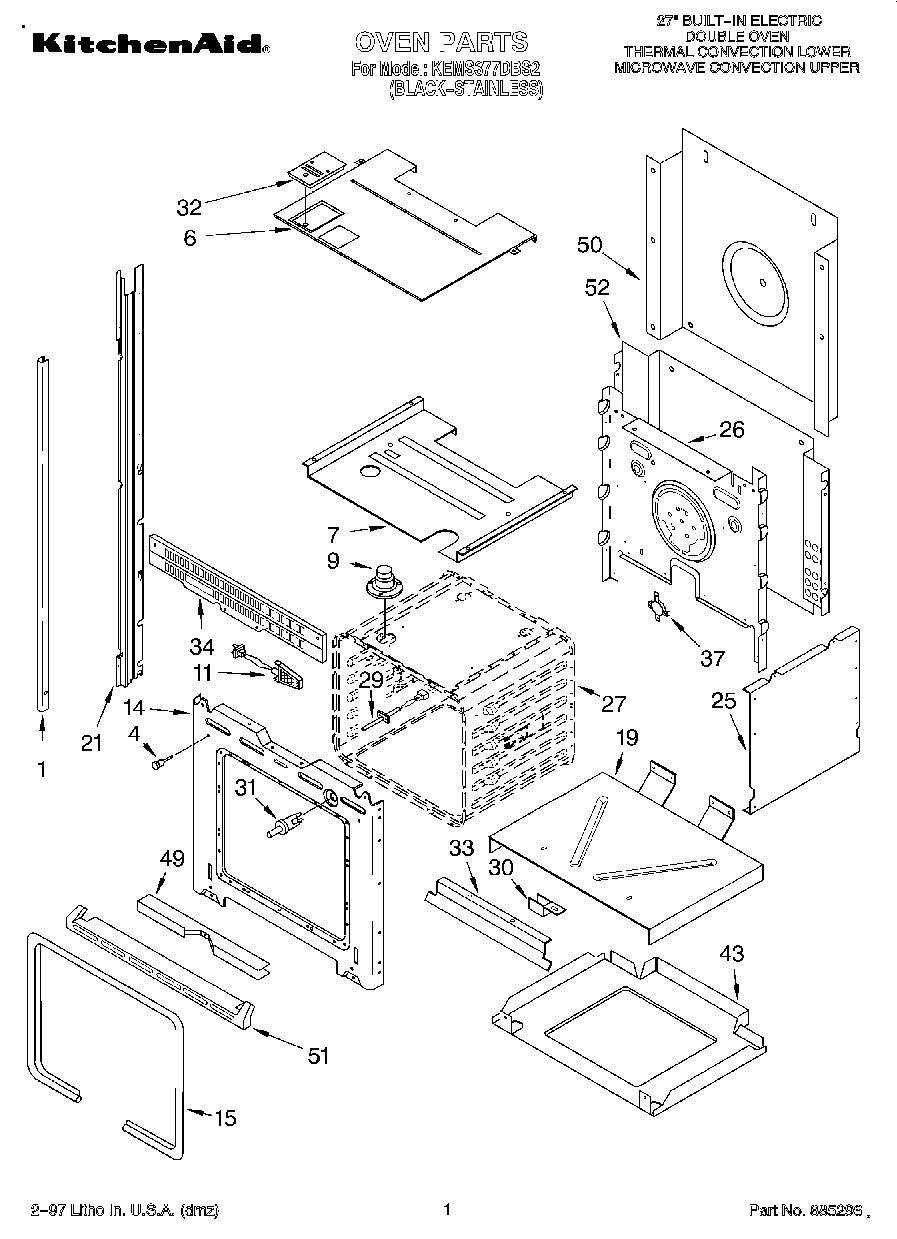

KEMS377DBS2 01 – OVEN

Products

Position	Product
1	Trim, Side (LH Black)
1	WP8281236 Whirlpool Screw
1	Trim, Side (RH Black)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Partition
9	Tube, Vent
11	WP4448972 Whirlpool Oven Light
11	4449748 Whirlpool Oven Screw
14	Frame, Front
14	Screw
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
21	814375 Whirlpool Oven Rail Mount
21	814376 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
30	WPL 4449845
31	Switch, Door
32	Vent Box Assy
33	Deflector, Vent
34	WP4450038 Whirlpool Screw
34	WP8304106 Whirlpool Oven Vent
37	Thermostat (TOD) (Temp.) SPST
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	Cover, Back
50	WP4449809 Whirlpool Screw
51	Screw, (2)
51	Trim, Bottom (Black Model)
52	WPL 4449315
52	WPL 4450364
52	Insulation, Bottom
52	Chassis, Back
