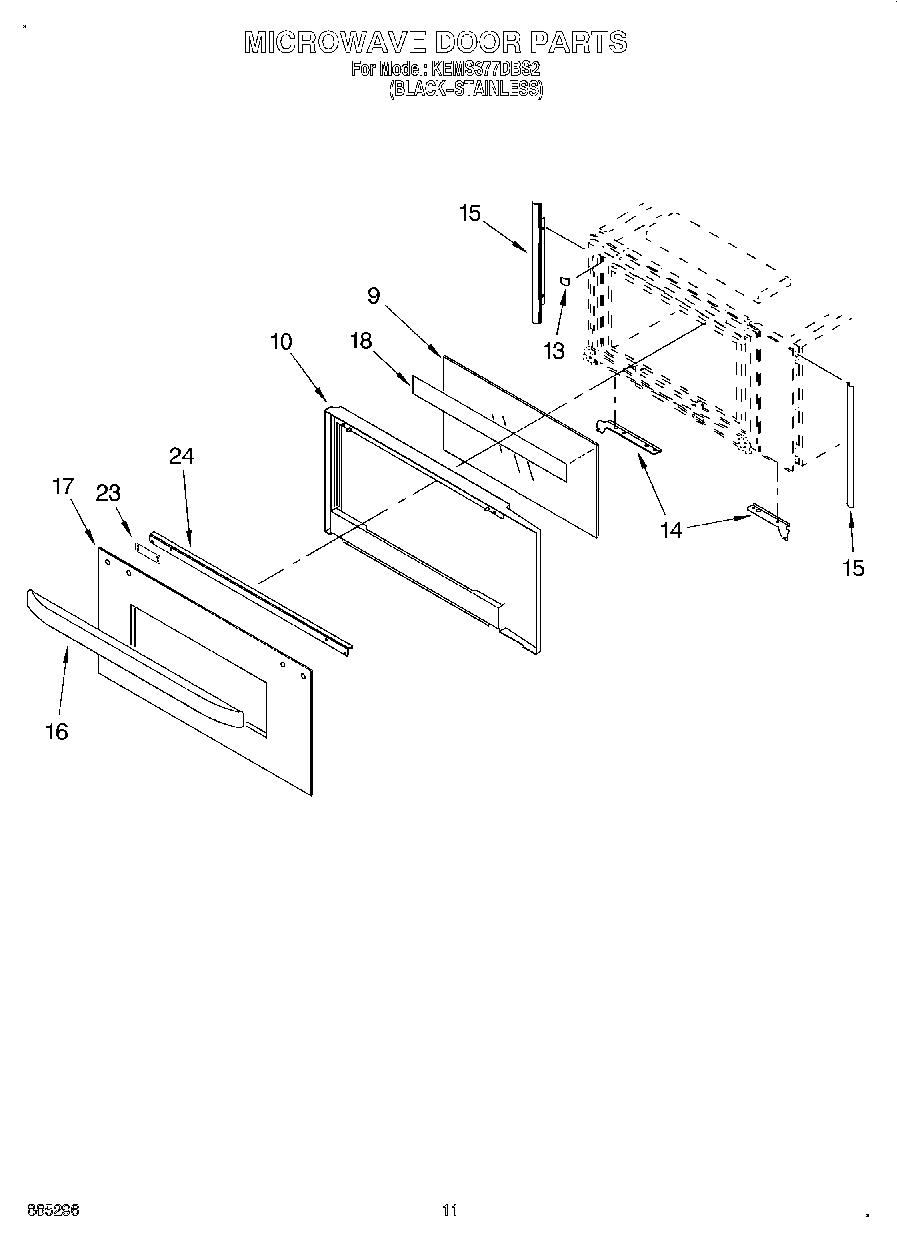

KEMS377DBS2 09 – MICROWAVE DOOR, OPTIONAL

KEMS377DBS2 09 – MICROWAVE DOOR, OPTIONAL

Written by

in

KEMS377DBS2 09 – MICROWAVE DOOR, OPTIONAL

Products

PositionProduct
9Glass, Middle
10Frame, Door
10WP4450038 Whirlpool Screw
13Tape, Foam
14Bracket, Mounting (Right Side)
14Bracket, Mounting (Left Side)
15Filler, Side
16Handle (Black Model)
17Glass, Outer & Panel Assy.
18Tape, Foil
23Spacer (Stainless)
24Wire (12 Ga. 150 c Black)
24Wire (14 Ga. 150 c Yellow)
24Wire (14 Ga. 150 c Orange)
24Harness, Wire (Latch)
2418 Ga. 80~c Rating (Red)
24Wire (14 Ga. 200 c Brown)
24WPL 4454708
24Bracket, Handle
24261900 Whirlpool Microwave Spray
24Screw
244450950 Whirlpool Oven Conduit
24Harness, Wire (Door Switch)
24WPL 591014
241
24Wire (14 Ga. 150 c Green)
24Wire (14 Ga. 150 c Brown)
24285006 Whirlpool Spray
244450800 Whirlpool Oven Screw
24Wire, 25“ Roll (White 14 GA.)
24Wire, 25` Roll (Red 14 Ga.)
24Wire, 25` Roll (Black 14 Ga.)
24WP488366 Whirlpool Refrigerator Clamp
24WP4449809 Whirlpool Screw
2472017 Whirlpool Appliance Touch-Up Paint White
2472032 Whirlpool Touch Up Paint Black
24WP482338 Whirlpool Refrigerator Adhesive
24Wire (14 Ga. 150 c Blue)
24WP261869 Whirlpool Microwave Paint
24242831 Whirlpool Oven Wire
24Transformer
24Ground (M/W)
24Filler Kit (BL)
24WP4448950 Whirlpool Screw
24814381 Whirlpool Pin
24350930 Whirlpool White Spray Paint
