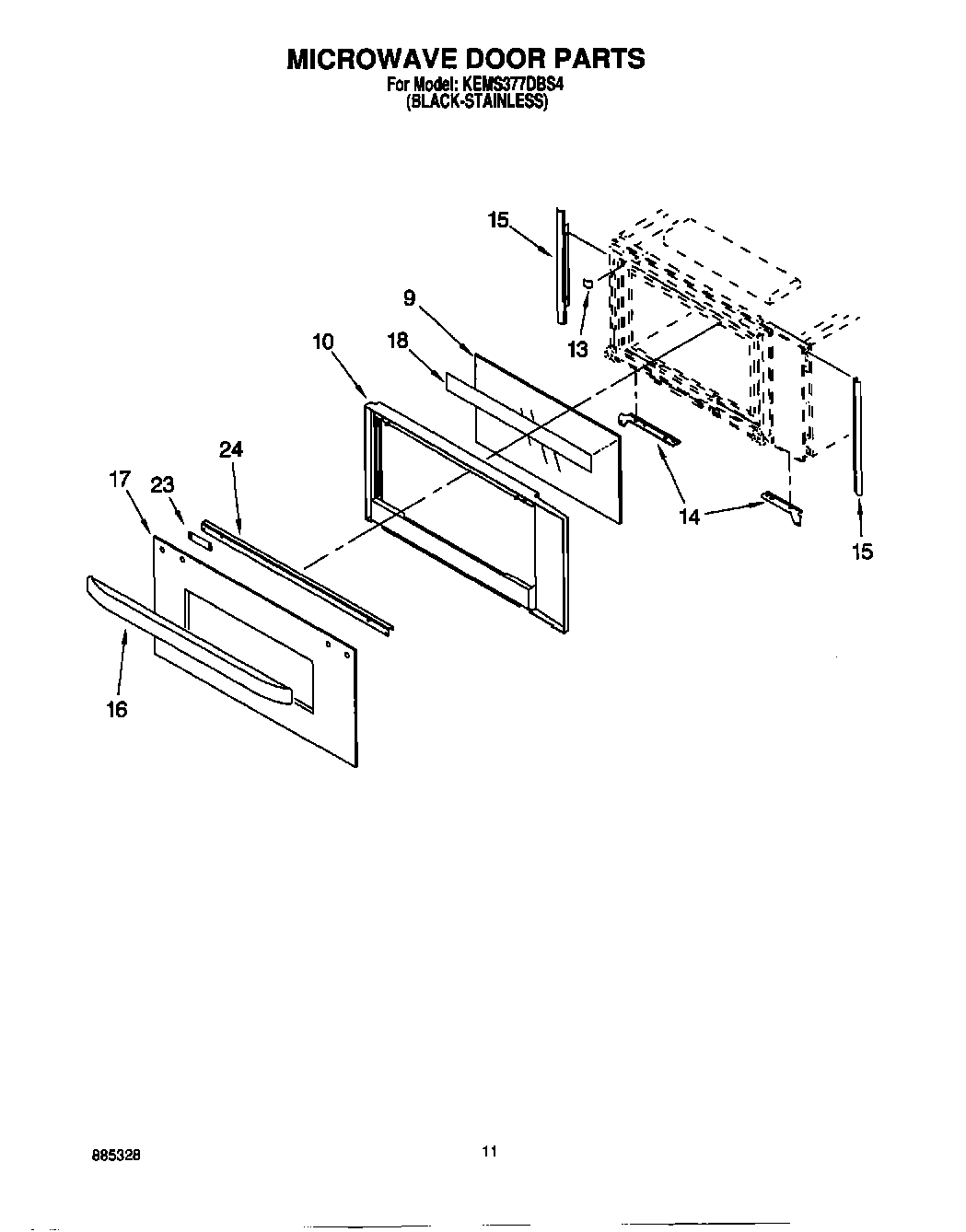

KEMS377DBS4 09 – MICROWAVE DOOR, OPTIONALadmin2025-04-26T10:29:29+00:00KEMS377DBS4 09 – MICROWAVE DOOR, OPTIONAL
Products
| Position | Product |
|---|
| 9 | Glass, Middle |
| 10 | Frame, Door |
| 10 | WP4450038 Whirlpool Screw |
| 13 | Tape, Foam |
| 14 | Bracket, Mounting (Right Side) |
| 14 | Bracket, Mounting (Left Side) |
| 15 | Filler, Side |
| 16 | Handle (Black Model) |
| 17 | Glass, Outer & Panel Assy. |
| 18 | Tape, Foil |
| 23 | Spacer (Stainless) |
| 24 | Wire (12 Ga. 150 c Black) |
| 24 | Wire (14 Ga. 150 c Yellow) |
| 24 | Wire (14 Ga. 150 c Orange) |
| 24 | 4450950 Whirlpool Oven Conduit |
| 24 | 18 Ga. 80~c Rating (Red) |
| 24 | Wire (14 Ga. 200 c Brown) |
| 24 | WPL 4454859 |
| 24 | Bracket, Handle |
| 24 | 261900 Whirlpool Microwave Spray |
| 24 | Screw |
| 24 | Harness, Wire (Door Switch) (Also, order Main Harness) |
| 24 | Harness, Wire (Latch) |
| 24 | WPL 591014 |
| 24 | 1 |
| 24 | Wire (14 Ga. 150 c Green) |
| 24 | Wire (14 Ga. 150 c Brown) |
| 24 | 285006 Whirlpool Spray |
| 24 | 4450800 Whirlpool Oven Screw |
| 24 | Wire, 25`` Roll (White 14 GA.) |
| 24 | Wire, 25` Roll (Red 14 Ga.) |
| 24 | Wire, 25` Roll (Black 14 Ga.) |
| 24 | WP488366 Whirlpool Refrigerator Clamp |
| 24 | WP4449809 Whirlpool Screw |
| 24 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 24 | 72032 Whirlpool Touch Up Paint Black |
| 24 | WP482338 Whirlpool Refrigerator Adhesive |
| 24 | Wire (14 Ga. 150 c Blue) |
| 24 | WP261869 Whirlpool Microwave Paint |
| 24 | 242831 Whirlpool Oven Wire |
| 24 | Transformer |
| 24 | Ground (M/W) |
| 24 | Filler Kit (BL) |
| 24 | WP4448950 Whirlpool Screw |
| 24 | 814381 Whirlpool Pin |
| 24 | 350930 Whirlpool White Spray Paint |
