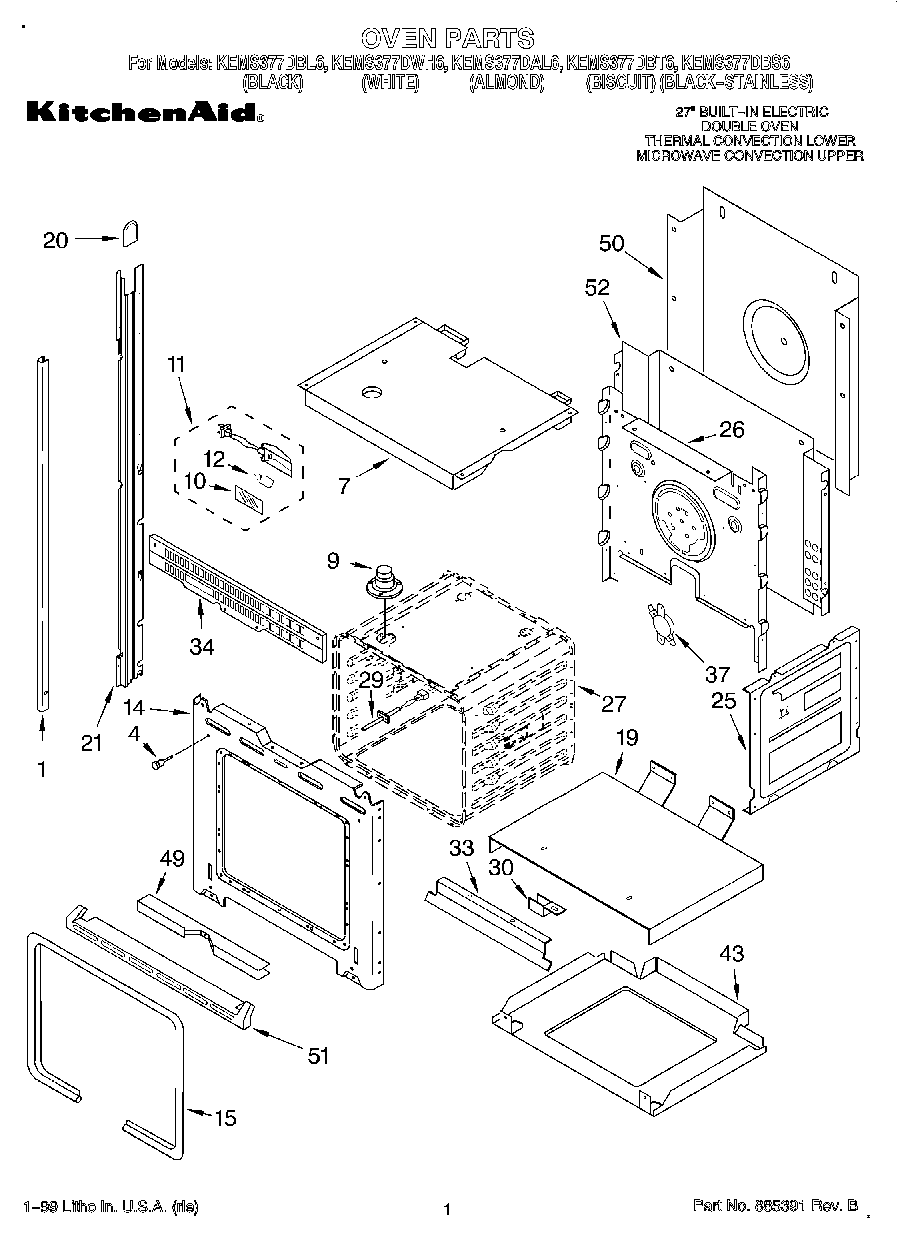

KEMS377DBS6 01 – OVEN

KEMS377DBS6 01 – OVEN

Written by

in

KEMS377DBS6 01 – OVEN

Products

PositionProduct
1Trim, Side (RH White)
1Trim, Side (RH Black)
1Trim, Side (LH White)
1Trim, Side (RH Biscuit)
1Trim, Side (RH Almond)
1Trim, Side (LH Biscuit)
1Trim, Side (LH Black)
1Trim, Side (White)
1Trim, Side (LH Almond)
1WP8281236 Whirlpool Screw
44448520 Whirlpool Oven Bumper
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21814375 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
29Sensor
30WPL 4449845
33Deflector, Vent
34WP4450038 Whirlpool Screw
34WP8304106 Whirlpool Oven Vent
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Screw, (2)
51WPL 4452414
51Trim, Bottom (Almond)
51WPL 4448476
51Tri
52WPL 4451755
52WPL 4449315
52WPL 4450364
