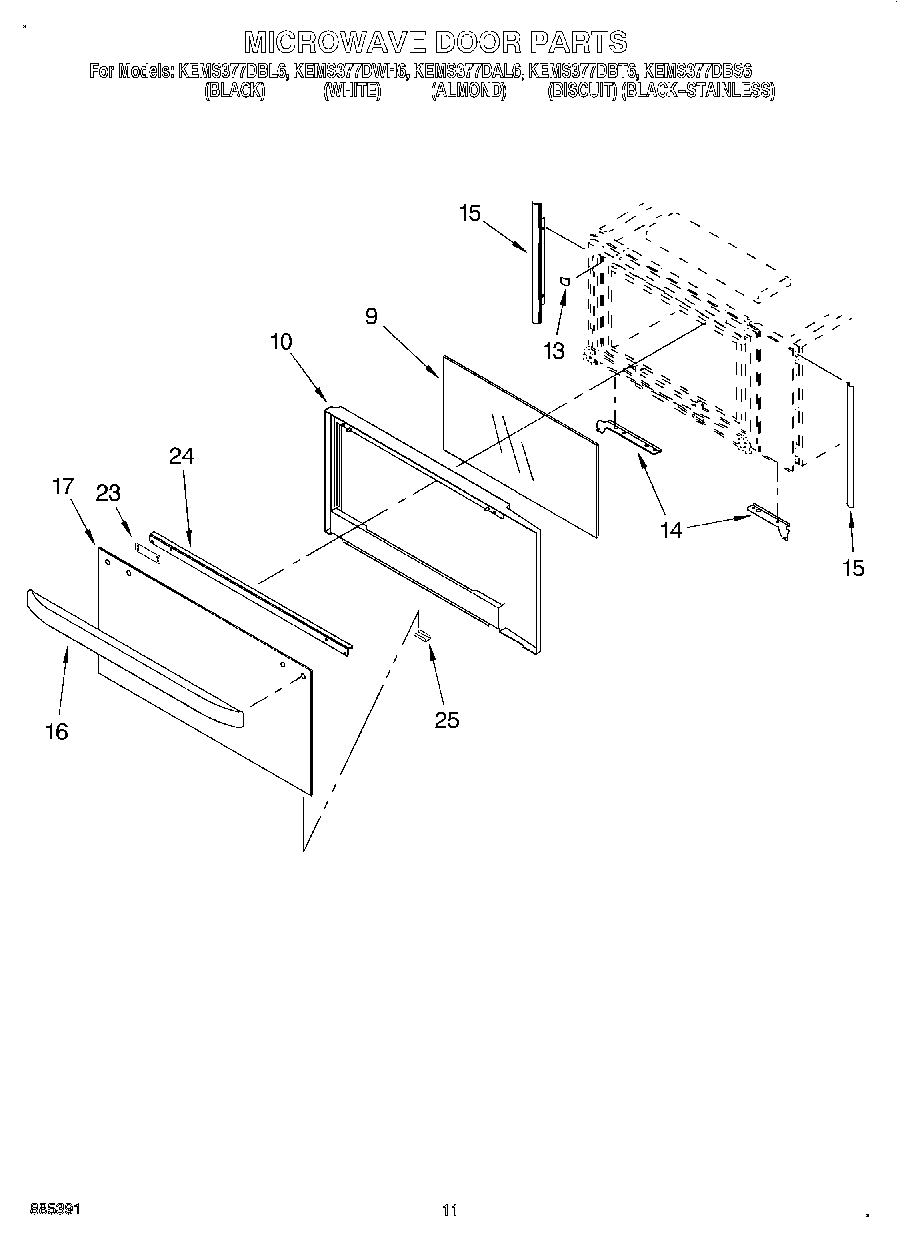

KEMS377DBS6 09 – MICROWAVE DOOR, OPTIONAL

KEMS377DBS6 09 – MICROWAVE DOOR, OPTIONAL

Written by

in

KEMS377DBS6 09 – MICROWAVE DOOR, OPTIONAL

Products

PositionProduct
9Glass, Middle
10WP4450038 Whirlpool Screw
10Frame, Door
13Tape, Foam
14Bracket, Mounting (Left Side)
14Bracket, Mounting (Right Side)
15Filler, Side
16Door Handle (Almond Model)
16Door Handle (Biscuit)
16Handle (Black Model)
16Handle (White Model)
17Glass, Outer (Black Model)
17Glass, Outer (White Model)
17Glass, Outer (Black-Stainless)
17Glass, Outer (Almond Model)
17Glass, Outer (Biscuit)
23Spacer (Stainless)
24Screw
24Bracket, Handle
25Wire (14 Ga. 200 c Brown)
25Wire (14 Ga. 150 c Yellow)
25Wire (14 Ga. 150 c Orange)
25Wire (12 Ga. 150 c Black)
2518 Ga. 80~c Rating (Red)
251
25WPL 4454929
25Wire, 25“ Roll (White 14 GA.)
25RETAINER,GLASS CLIP (BISCUIT)
25261900 Whirlpool Microwave Spray
25Clip, Retainer (White Model)
25Clip, Retainer (Black Model)
25Retainer, Clip (Almond Model)
254450950 Whirlpool Oven Conduit
25WPL 591014
25Wire (14 Ga. 150 c Green)
25Wire (14 Ga. 150 c Brown)
25WP482338 Whirlpool Refrigerator Adhesive
2572032 Whirlpool Touch Up Paint Black
25285006 Whirlpool Spray
25WPW10339879 Whirlpool Wire Tie
254450800 Whirlpool Oven Screw
25Wire, 25` Roll (Red 14 Ga.)
25Wire, 25` Roll (Black 14 Ga.)
254392901 Whirlpool Biscuit Spray Paint
254392899 Whirlpool Biscuit Touch-Up Paint
25WP4449809 Whirlpool Screw
2572017 Whirlpool Appliance Touch-Up Paint White
25814381 Whirlpool Pin
25WP4448950 Whirlpool Screw
25Wire (14 Ga. 150 c Blue)
25WP261869 Whirlpool Microwave Paint
25242831 Whirlpool Oven Wire
2516515 Whirlpool Clip
25Spacer, Harness
25Transformer
25WPL 4452239
25Ground (M/W)
25Filler Kit (AL)
25Filler Kit (WH)
25Filler Kit (BL)
25350930 Whirlpool White Spray Paint
