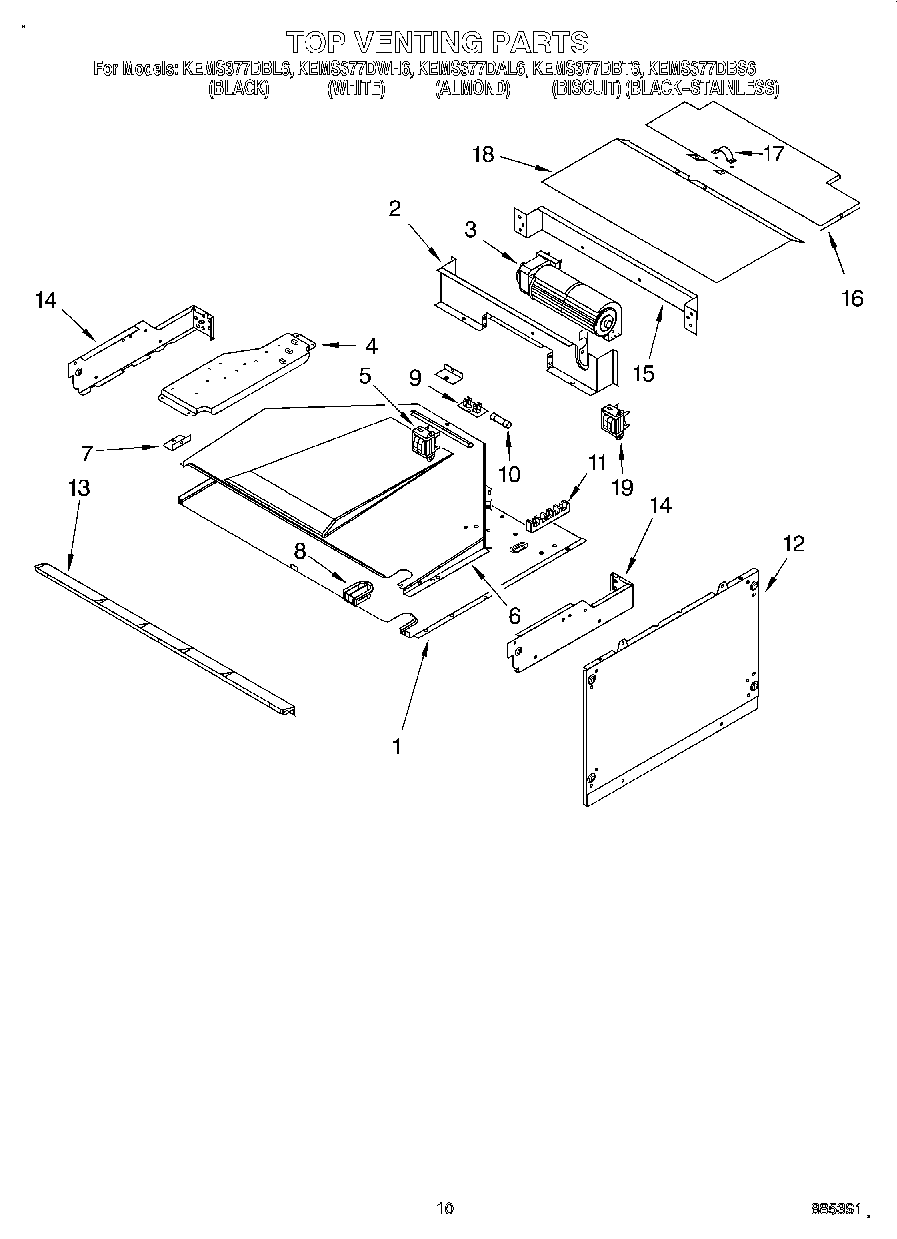

KEMS377DBT6 08 – TOP VENTING

Products

Position	Product
1	Cover, Top
2	Baffle, Blower
3	Blower
4	Plate, Mounting
5	WP9760588 Whirlpool Transformer
6	Exhaust Duct
7	Bracket, Duct
8	WP112432 Whirlpool Nut Assembly
8	Grommet
9	WP4449154 Whirlpool Screw
9	4454949 Whirlpool Oven Fuse Block
10	WPW10017410 Whirlpool Fuse
11	WP3387230 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
12	Side, Combo
13	Vent, Control Panel (Black & White Model)
13	WP4450038 Whirlpool Screw
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	Cover, Top Rear
17	4448664 Whirlpool Oven Mounting Bracket
18	Cover, Top Front
18	WP4449809 Whirlpool Screw
19	Transformer, Control Panel
