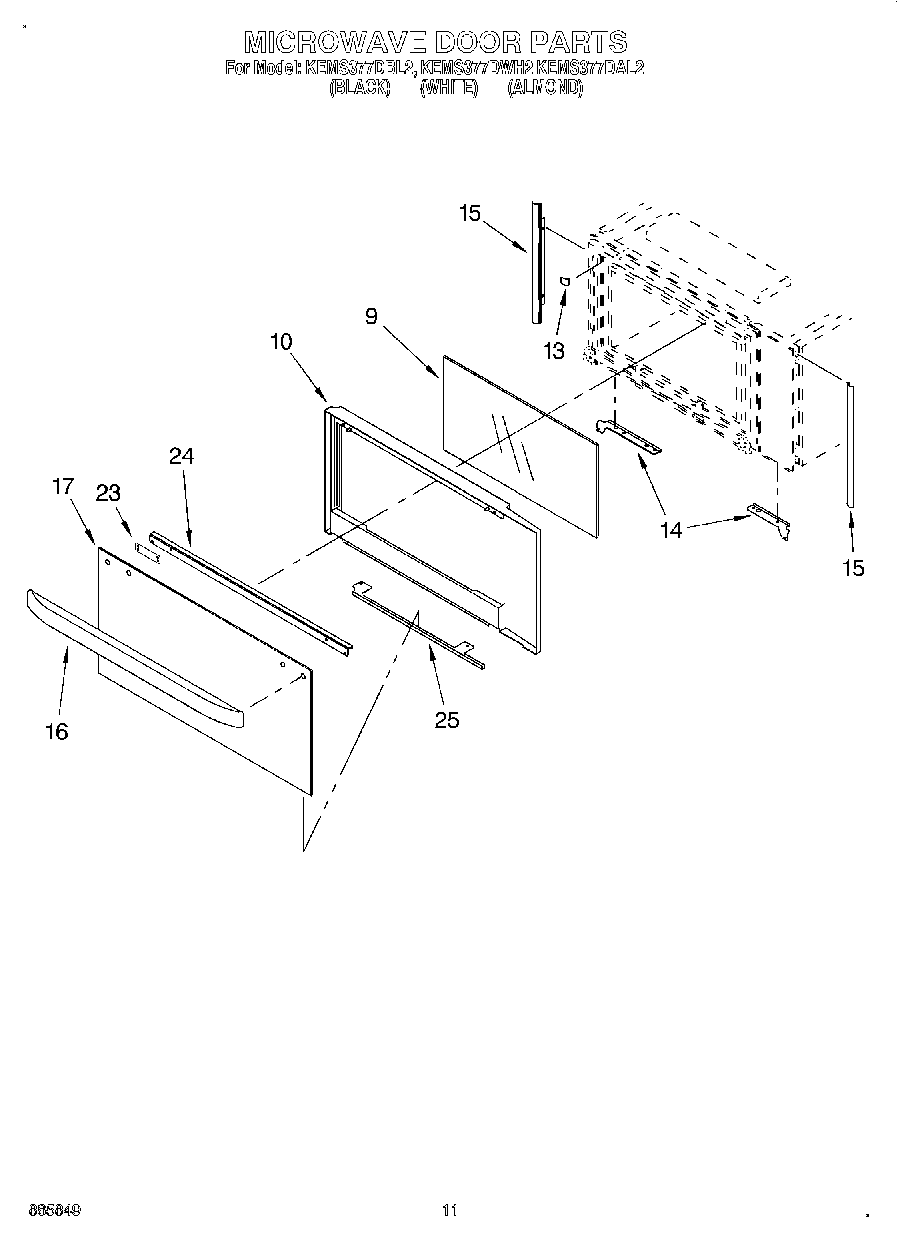

KEMS377DWH2 09 – MICROWAVE DOOR, OTHERadmin2025-04-26T10:30:54+00:00KEMS377DWH2 09 – MICROWAVE DOOR, OTHER
Products
| Position | Product |
|---|
| 9 | Glass, Middle |
| 10 | Frame, Door |
| 10 | WP4450038 Whirlpool Screw |
| 13 | Tape, Foam |
| 14 | Bracket, Mounting (Right Side) |
| 14 | Bracket, Mounting (Left Side) |
| 15 | Filler, Side |
| 16 | Handle (Black Model) |
| 16 | Handle (White Model) |
| 16 | Door Handle (Almond Model) |
| 17 | Glass, Outer (White Model) |
| 17 | Glass, Outer (Black Model) |
| 17 | Glass, Outer (Almond Model) |
| 23 | Spacer (Stainless) |
| 24 | Screw |
| 24 | Bracket, Handle |
| 25 | Wire (12 Ga. 150 c Black) |
| 25 | 18 Ga. 80~c Rating (Red) |
| 25 | Wire (14 Ga. 200 c Brown) |
| 25 | 1 |
| 25 | Clip, Glass (White Model) |
| 25 | WPL 591014 |
| 25 | Clip, Glass (Black Model) |
| 25 | Clip, Glass (Almond Model) |
| 25 | WPL 4454708 |
| 25 | Wire, 25`` Roll (White 14 GA.) |
| 25 | 261900 Whirlpool Microwave Spray |
| 25 | 4450950 Whirlpool Oven Conduit |
| 25 | Harness, Wire (Latch) |
| 25 | Harness, Wire (Door Switch) |
| 25 | Wire (14 Ga. 150 c Yellow) |
| 25 | Wire (14 Ga. 150 c Orange) |
| 25 | Wire (14 Ga. 150 c Green) |
| 25 | WP482338 Whirlpool Refrigerator Adhesive |
| 25 | 72032 Whirlpool Touch Up Paint Black |
| 25 | 285006 Whirlpool Spray |
| 25 | 4450800 Whirlpool Oven Screw |
| 25 | Wire, 25` Roll (Red 14 Ga.) |
| 25 | Wire, 25` Roll (Black 14 Ga.) |
| 25 | WP488366 Whirlpool Refrigerator Clamp |
| 25 | WP4449809 Whirlpool Screw |
| 25 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 25 | 814381 Whirlpool Pin |
| 25 | WP4448950 Whirlpool Screw |
| 25 | Wire (14 Ga. 150 c Brown) |
| 25 | Wire (14 Ga. 150 c Blue) |
| 25 | WP261869 Whirlpool Microwave Paint |
| 25 | 242831 Whirlpool Oven Wire |
| 25 | Transformer |
| 25 | Ground (M/W) |
| 25 | Filler Kit (AL) |
| 25 | Filler Kit (WH) |
| 25 | Filler Kit (BL) |
| 25 | 350930 Whirlpool White Spray Paint |
