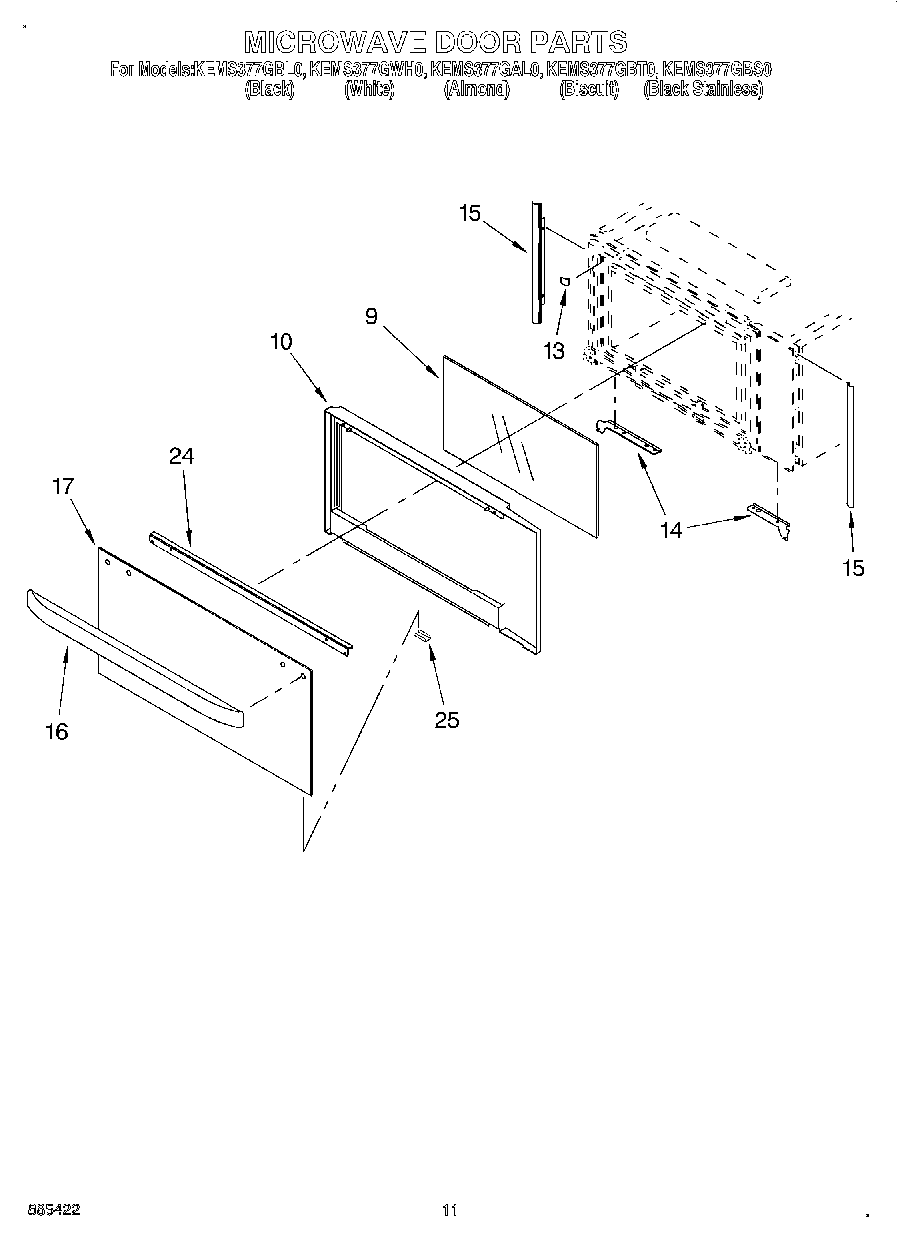

KEMS377GAL0 09 – MICROWAVE DOOR, OPTIONAL

KEMS377GAL0 09 – MICROWAVE DOOR, OPTIONAL

Written by

in

KEMS377GAL0 09 – MICROWAVE DOOR, OPTIONAL

Products

PositionProduct
9Glass, Middle
10Frame, Door
10WP4450038 Whirlpool Screw
13Tape, Foam
14Bracket, Mounting (Left Side)
14Bracket, Mounting (Right Side)
15Filler, Side
16Handle (Black Model)
16Door Handle (Almond Model)
16Door Handle (Biscuit)
16Handle (White Model)
17Glass, Outer (Black Model)
17Glass, Outer (White Model)
17Glass, Outer (Biscuit)
17Glass, Outer (Black-Stainless)
17Glass, Outer (Almond Model)
24Bracket, Handle
24Bracket, Handle
24Screw
25Retainer, Clip (Almond Model)
25Wire, 25` Roll (Black 14 Ga.)
25Wire, 25` Roll (Red 14 Ga.)
254450800 Whirlpool Oven Screw
254450950 Whirlpool Oven Conduit
25WPL 591014
251
25Wire (14 Ga. 200 c Brown)
25Clip, Retainer (Black Model)
25Clip, Retainer (White Model)
25261900 Whirlpool Microwave Spray
25350930 Whirlpool White Spray Paint
2572017 Whirlpool Appliance Touch-Up Paint White
25WP4449809 Whirlpool Screw
254392899 Whirlpool Biscuit Touch-Up Paint
25WPL 4454929
254392901 Whirlpool Biscuit Spray Paint
25Wire, 25“ Roll (White 14 GA.)
25RETAINER,GLASS CLIP (BISCUIT)
2518 Ga. 80~c Rating (Red)
25Wire (12 Ga. 150 c Black)
25Spacer, Harness
25814381 Whirlpool Pin
25WP4448950 Whirlpool Screw
25Filler Kit (BL)
2516515 Whirlpool Clip
25Filler Kit (WH)
25Filler Kit (AL)
25WPL 4452239
25WP482338 Whirlpool Refrigerator Adhesive
2572032 Whirlpool Touch Up Paint Black
25285006 Whirlpool Spray
25Wire (14 Ga. 150 c Yellow)
25Wire (14 Ga. 150 c Orange)
25Wire (14 Ga. 150 c Green)
25Wire (14 Ga. 150 c Brown)
25Wire (14 Ga. 150 c Blue)
25WP261869 Whirlpool Microwave Paint
25242831 Whirlpool Oven Wire
25WPW10339879 Whirlpool Wire Tie
25Ground (M/W)
