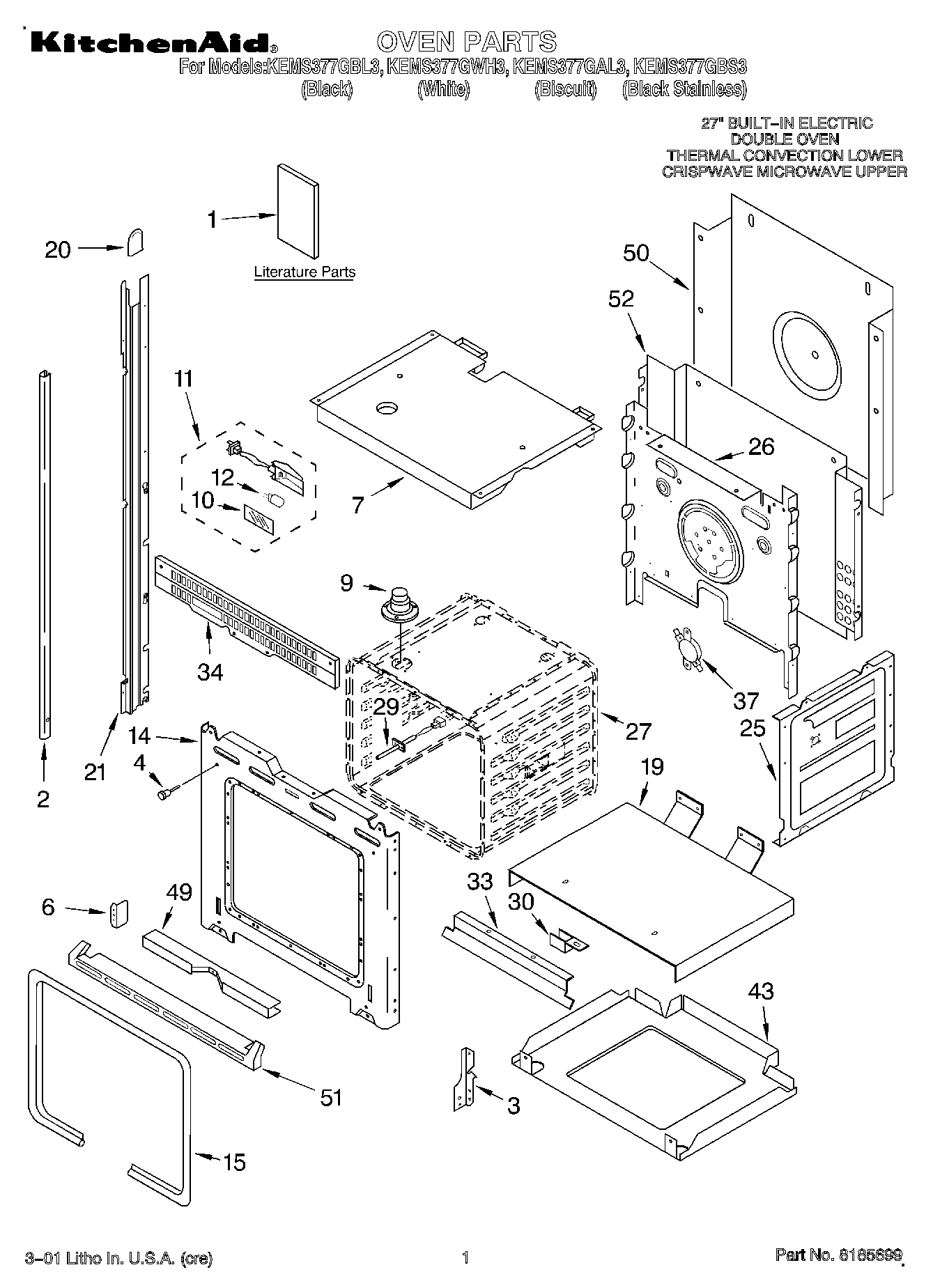

KEMS377GAL3 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Easy Set Guide)
1	Literature Parts (Use & Care Guide (Microwave))
1	Literature Parts (Use & Care Guide (Oven))
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Guide, Easy Use (Microwave))
1	Literature Parts (Cooking Guide (Lable))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Cookbook (T/C Oven))
2	Trim, Side (LH Biscuit)
2	Trim, Side (RH Black)
2	WP8281236 Whirlpool Screw
2	Trim, Side (White)
2	Trim, Side (RH White)
2	Trim, Side (RH Biscuit)
2	Trim, Side (LH Black)
2	Trim, Side (LH White)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
6	Bracket, Support
7	Top, Chassis
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Frame, Front
14	Screw
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814376 Whirlpool Oven Rail Mount
21	814375 Whirlpool Oven Rail Mount
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	WPL 4449845
33	Deflector, Vent
34	WP4450038 Whirlpool Screw
34	WP8304106 Whirlpool Oven Vent
37	WP9759243 Whirlpool Thermostat
43	Base, Chassis
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4449809 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
51	WPL 4452414
51	WP3400832 Whirlpool Screw
51	WPL 4448476
51	Tri
52	WPL 4451755
52	WPL 4449315
52	WPL 4450364
