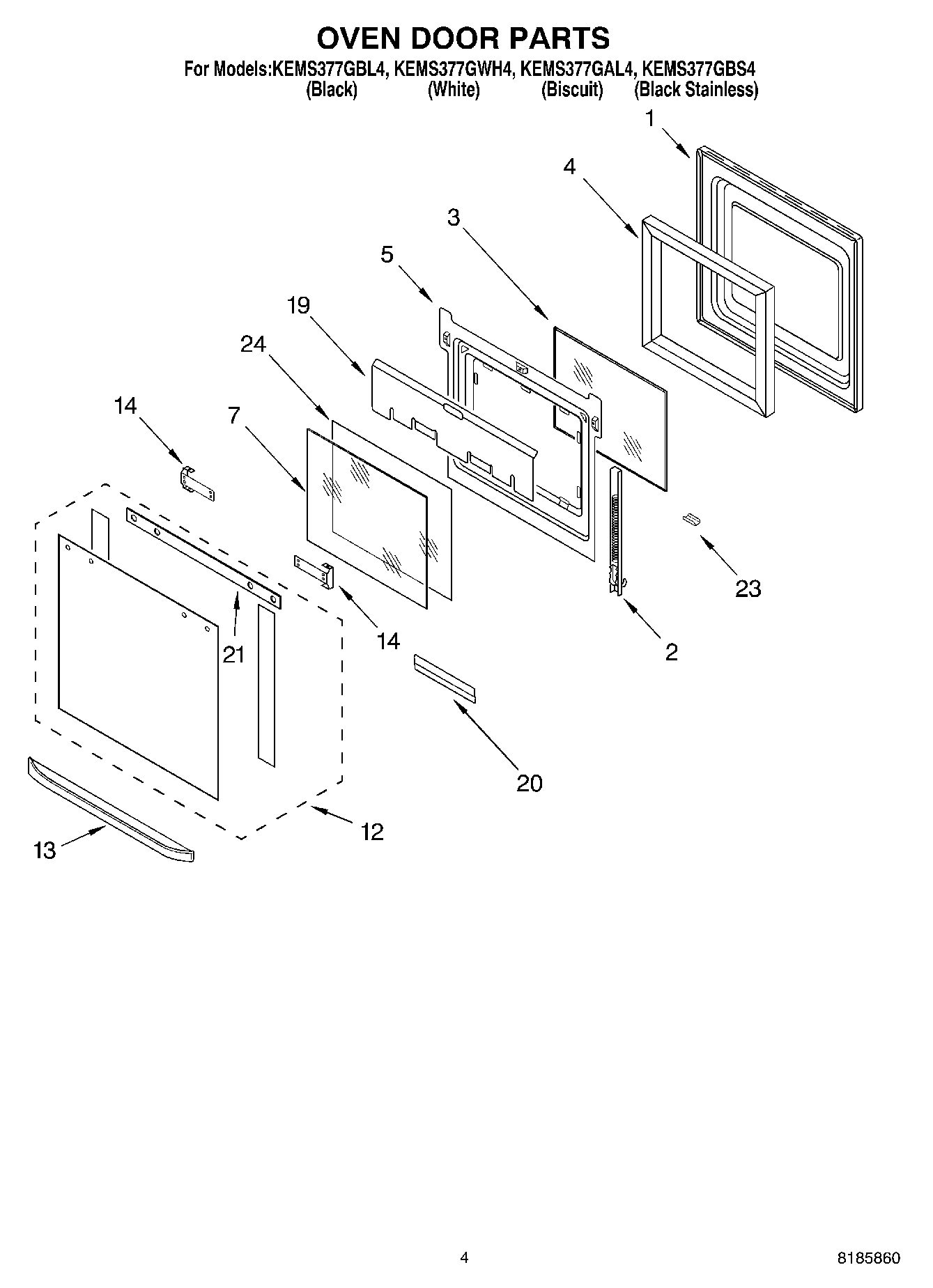

KEMS377GAL4 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP9760572 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	WP9760571 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
2	9760569 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (Biscuit)
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (Black-Stainless)
13	Handle (Black Model)
13	Door Handle (Biscuit)
13	Handle (White Model)
14	Screw
14	Bracket, Handle
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (Black Model)
24	Glass, Inner
