KEMS377GBL2 01 – OVEN, LITERATURE

KEMS377GBL2 01 – OVEN, LITERATURE

Written by

in

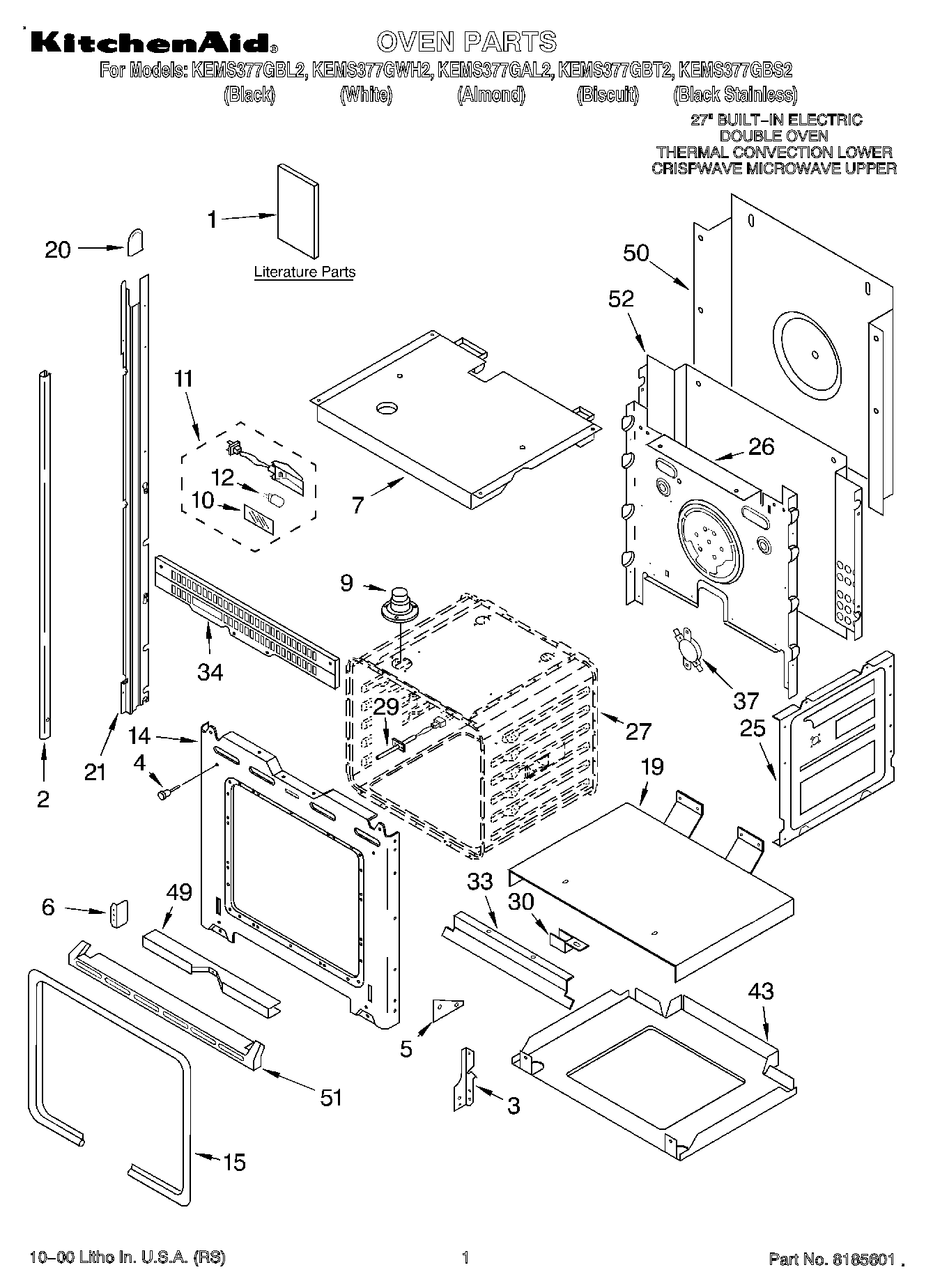

KEMS377GBL2 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Cooking Guide (Lable))
1Literature Parts (Installation Instructions)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Tech Sheet (Oven))
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Use & Care Guide (Microwave))
1Literature Parts (Guide, Easy Use (Microwave))
1Literature Parts (Easy Set Guide)
2Trim, Side (LH White)
2Trim, Side (LH Biscuit)
2Trim, Side (RH Biscuit)
2Trim, Side (LH Almond)
2WP8281236 Whirlpool Screw
2Trim, Side (White)
2Trim, Side (RH Almond)
2Trim, Side (RH Black)
2Trim, Side (LH Black)
2Trim, Side (RH White)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Bracket, Support
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
14Screw
15WP4455381 Whirlpool Door Gasket
19Support, Insulation
20Cap, Spacer
21814376 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814375 Whirlpool Oven Rail Mount
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part
29WPW10131825 Whirlpool Oven Temperature Sensor
30WPL 4449845
33Deflector, Vent
34WP8304106 Whirlpool Oven Vent
34WP4450038 Whirlpool Screw
37WP9759243 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4449809 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Almond)
51Screw, (2)
51WPL 4452414
51Tri
51WPL 4448476
52WPL 4451755
52WPL 4449315
52WPL 4450364
