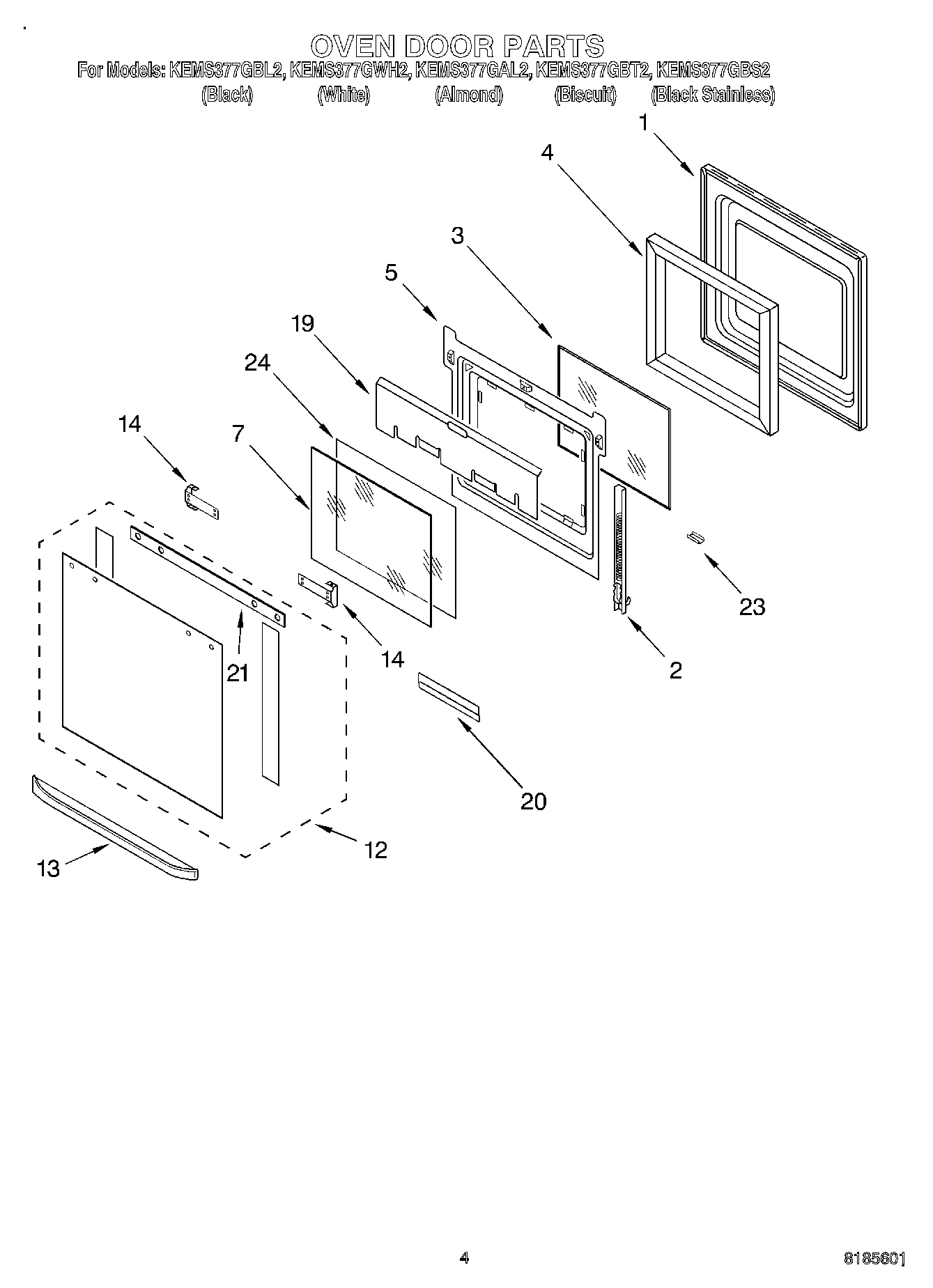

KEMS377GBL2 03 – OVEN DOOR

KEMS377GBL2 03 – OVEN DOOR

Written by

in

KEMS377GBL2 03 – OVEN DOOR

Products

PositionProduct
1Door Liner
2WP4455525 Whirlpool Oven Door Hinge
2WP4449743 Whirlpool Screw
2WP4455524 Whirlpool Door Hinge
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Retainer, Glass
7WP4449257 Whirlpool Door Glass
12Door Glass, Assy (White Model)
12Door Glass, Assy (Biscuit)
12Door Glass, Assy (Almond)
12Door Glass, Assy (Black-Stainless)
12Door Glass, Assy (Black Model)
13Door Handle (Biscuit)
13Door Handle (Almond Model)
13Handle (White Model)
13Handle (Black Model)
14Bracket, Handle
14Screw
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Top
23Retainer, Clip (Almond Model)
23Clip, Retainer (White Model)
23Clip, Retainer (Black Model)
23RETAINER,GLASS CLIP (BISCUIT)
24Glass, Inner
