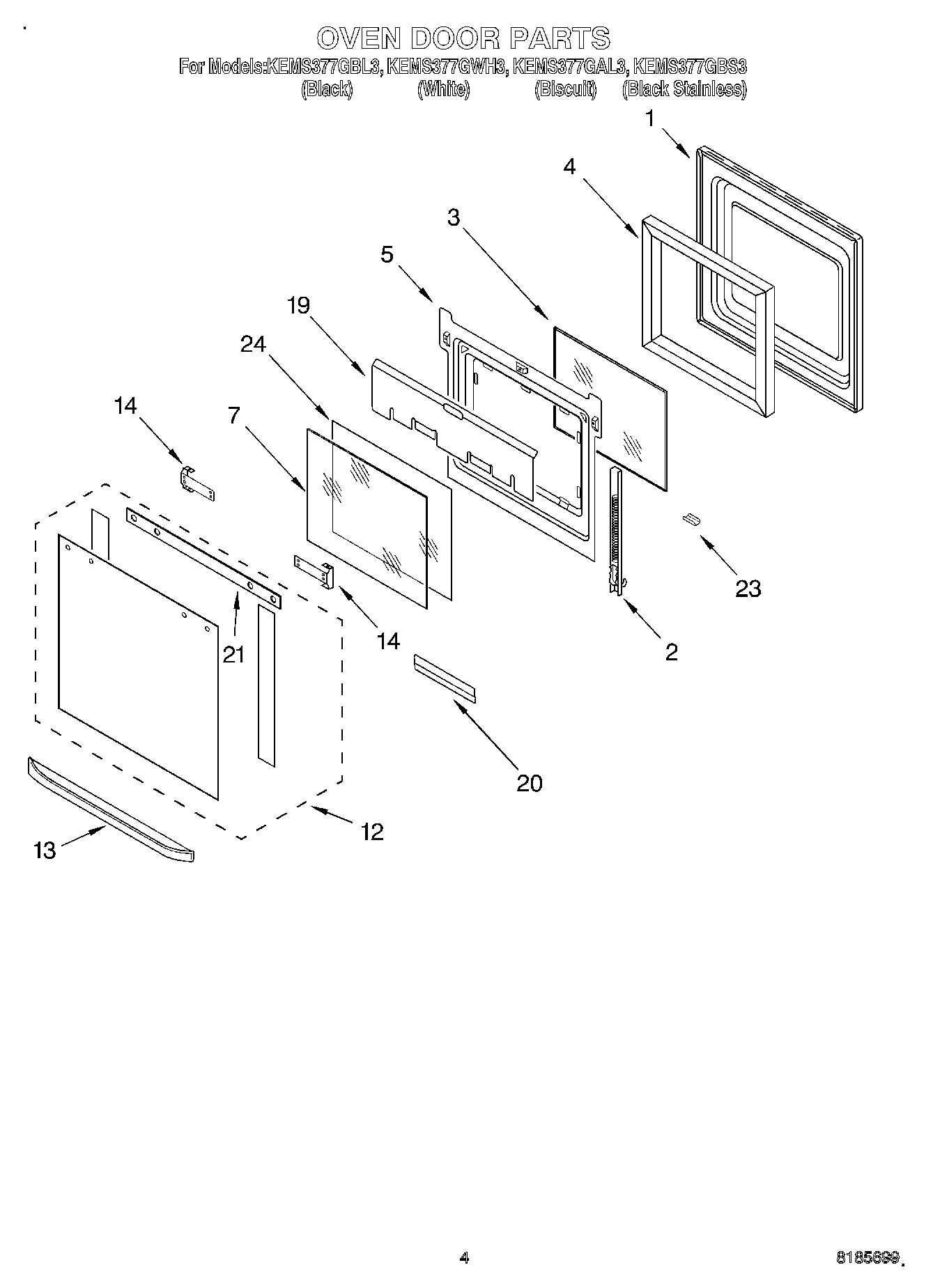

KEMS377GBL3 03 – OVEN DOOR
Written by
in
KEMS377GBL3 03 – OVEN DOOR
Products
Position
Product
1
Door Liner
2
WP4455524 Whirlpool Door Hinge
2
WP4455525 Whirlpool Oven Door Hinge
2
WP4449743 Whirlpool Screw
3
WP4449253 Whirlpool Glass Window
4
Insulation, Sides
5
Retainer, Glass
7
WP4449257 Whirlpool Door Glass
12
Door Glass, Assy (Black Model)
12
Door Glass, Assy (Biscuit)
12
Door Glass, Assy (Black-Stainless)
12
Door Glass, Assy (White Model)
13
Handle (Black Model)
13
Handle (White Model)
13
Door Handle (Biscuit)
14
Bracket, Handle
14
Screw
19
Shield, Heat
20
Retainer, Glass
20
WP4449809 Whirlpool Screw
21
Seal, Top
23
Clip, Retainer (Black Model)
23
Clip, Retainer (White Model)
23
RETAINER,GLASS CLIP (BISCUIT)
23
WP3400832 Whirlpool Screw
24
Glass, Inner
←
