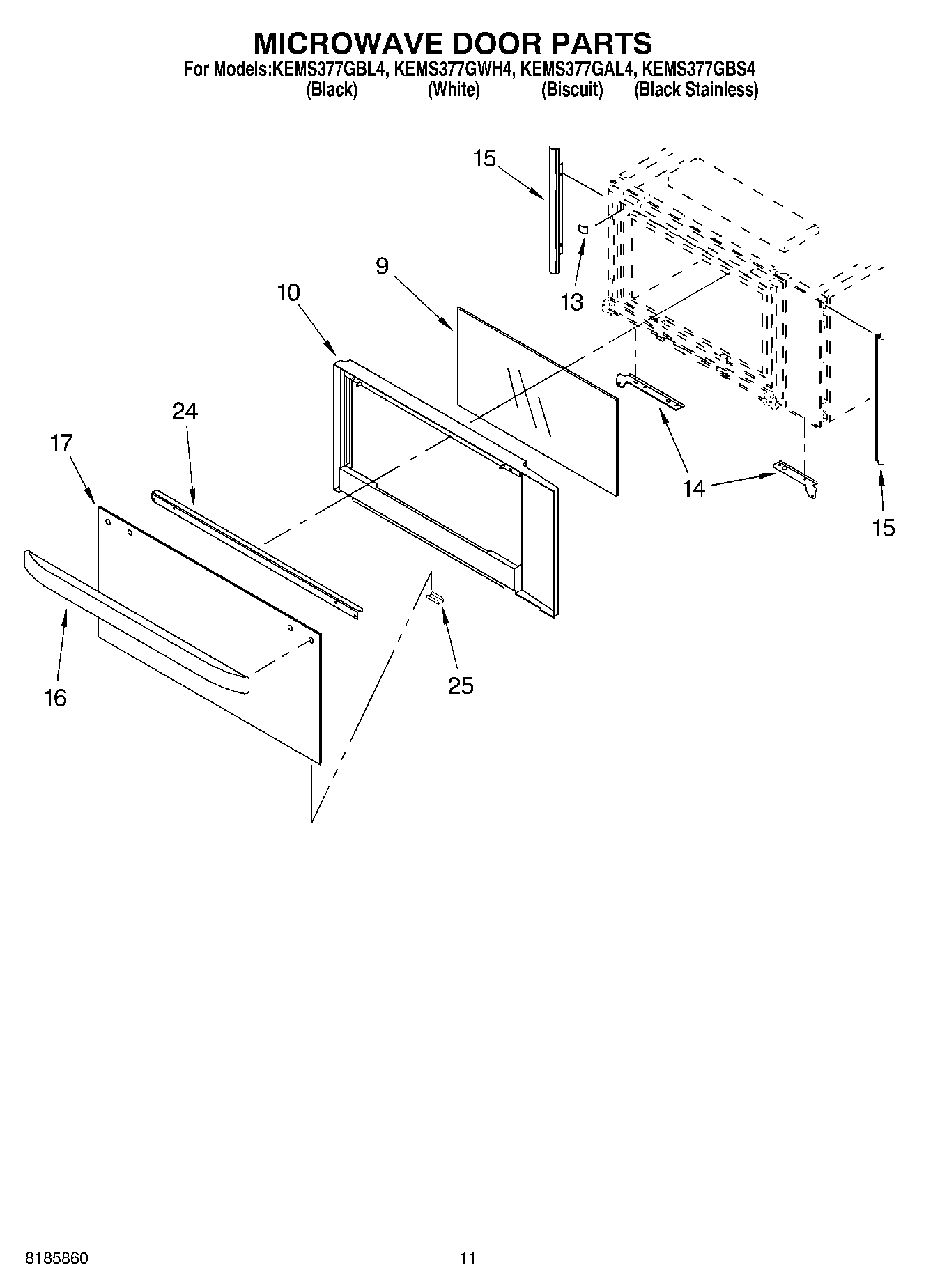

KEMS377GBL4 09 – MICROWAVE DOOR

Products

Position	Product
9	Glass, Middle
10	Frame, Door
10	WP4450038 Whirlpool Screw
13	Tape, Foam
14	Bracket, Mounting (Right Side)
14	Bracket, Mounting (Left Side)
15	Filler, Side
16	Handle (Black Model)
16	Handle (White Model)
16	Door Handle (Biscuit)
17	Glass, Outer (Black-Stainless)
17	Glass, Outer (Black Model)
17	Glass, Outer (White Model)
17	Glass, Outer (Biscuit)
24	Screw
24	Bracket, Handle
24	Bracket, Handle
25	Wire (14 Ga. 150 c Green)
25	Wire (14 Ga. 150 c Blue)
25	Wire (14 Ga. 150 c Brown)
25	1
25	Wire (14 Ga. 150 c Orange)
25	RETAINER,GLASS CLIP (BISCUIT)
25	261900 Whirlpool Microwave Spray
25	Clip, Retainer (White Model)
25	Clip, Retainer (Black Model)
25	4450950 Whirlpool Oven Conduit
25	WPL 591014
25	Wire (14 Ga. 200 c Brown)
25	18 Ga. 80~c Rating (Red)
25	Wire (12 Ga. 150 c Black)
25	Wire (14 Ga. 150 c Yellow)
25	WP261869 Whirlpool Microwave Paint
25	242831 Whirlpool Oven Wire
25	72032 Whirlpool Touch Up Paint Black
25	285006 Whirlpool Spray
25	WPW10339879 Whirlpool Wire Tie
25	4450800 Whirlpool Oven Screw
25	Wire, 25` Roll (Red 14 Ga.)
25	Wire, 25` Roll (Black 14 Ga.)
25	4392901 Whirlpool Biscuit Spray Paint
25	4392899 Whirlpool Biscuit Touch-Up Paint
25	WP4449809 Whirlpool Screw
25	72017 Whirlpool Appliance Touch-Up Paint White
25	WP482338 Whirlpool Refrigerator Adhesive
25	814381 Whirlpool Pin
25	Wire, 25“ Roll (White 14 GA.)
25	Spacer, Harness
25	16515 Whirlpool Clip
25	WPL 4455732
25	WPL 4452239
25	Ground (M/W)
25	Filler Kit (AL)
25	Filler Kit (WH)
25	Filler Kit (BL)
25	WP4448950 Whirlpool Screw
25	350930 Whirlpool White Spray Paint
