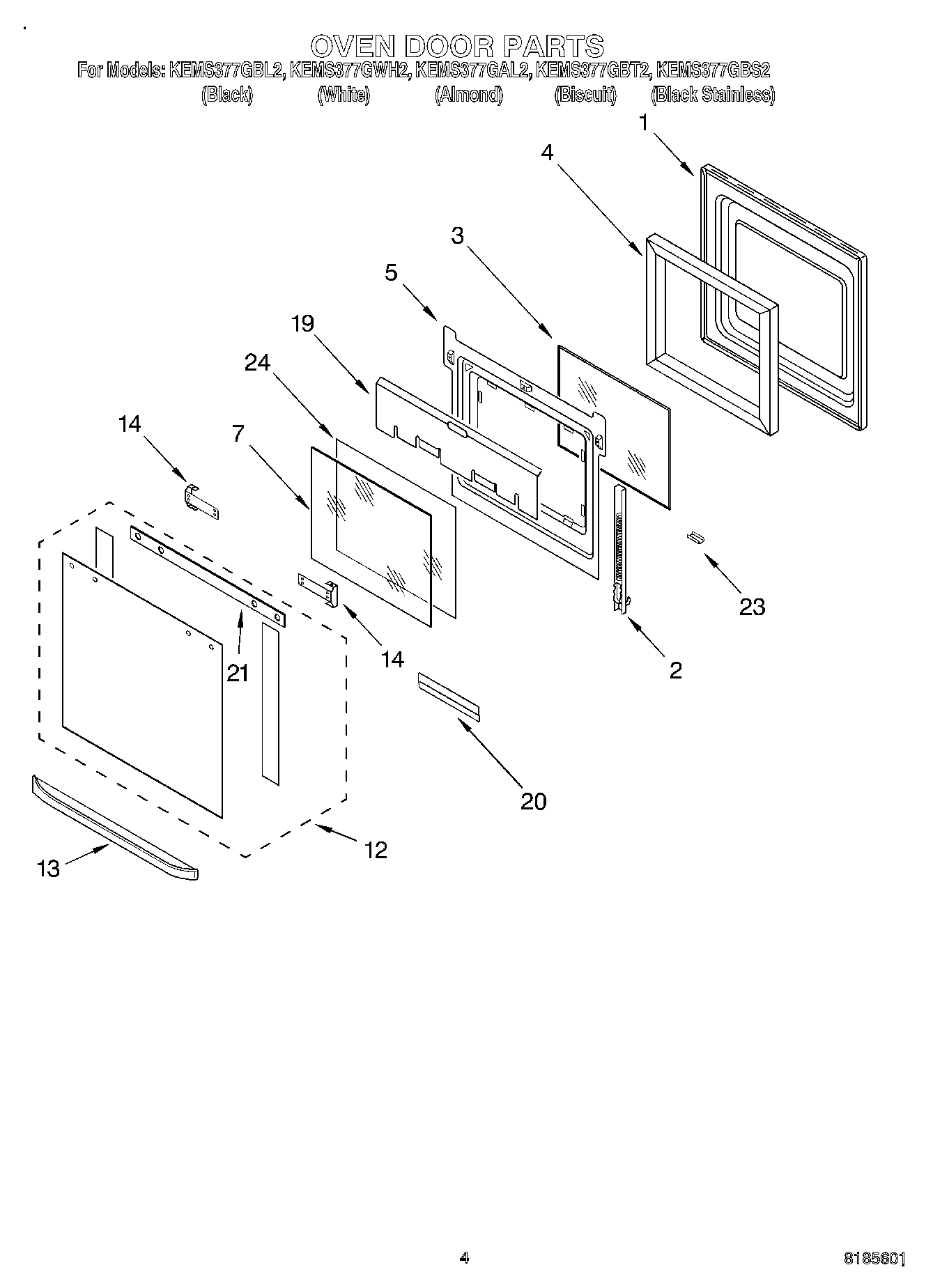

KEMS377GWH2 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4455525 Whirlpool Oven Door Hinge
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Biscuit)
12	Door Glass, Assy (Almond)
12	Door Glass, Assy (Black-Stainless)
12	Door Glass, Assy (Black Model)
13	Door Handle (Biscuit)
13	Door Handle (Almond Model)
13	Handle (White Model)
13	Handle (Black Model)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	Retainer, Clip (Almond Model)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
