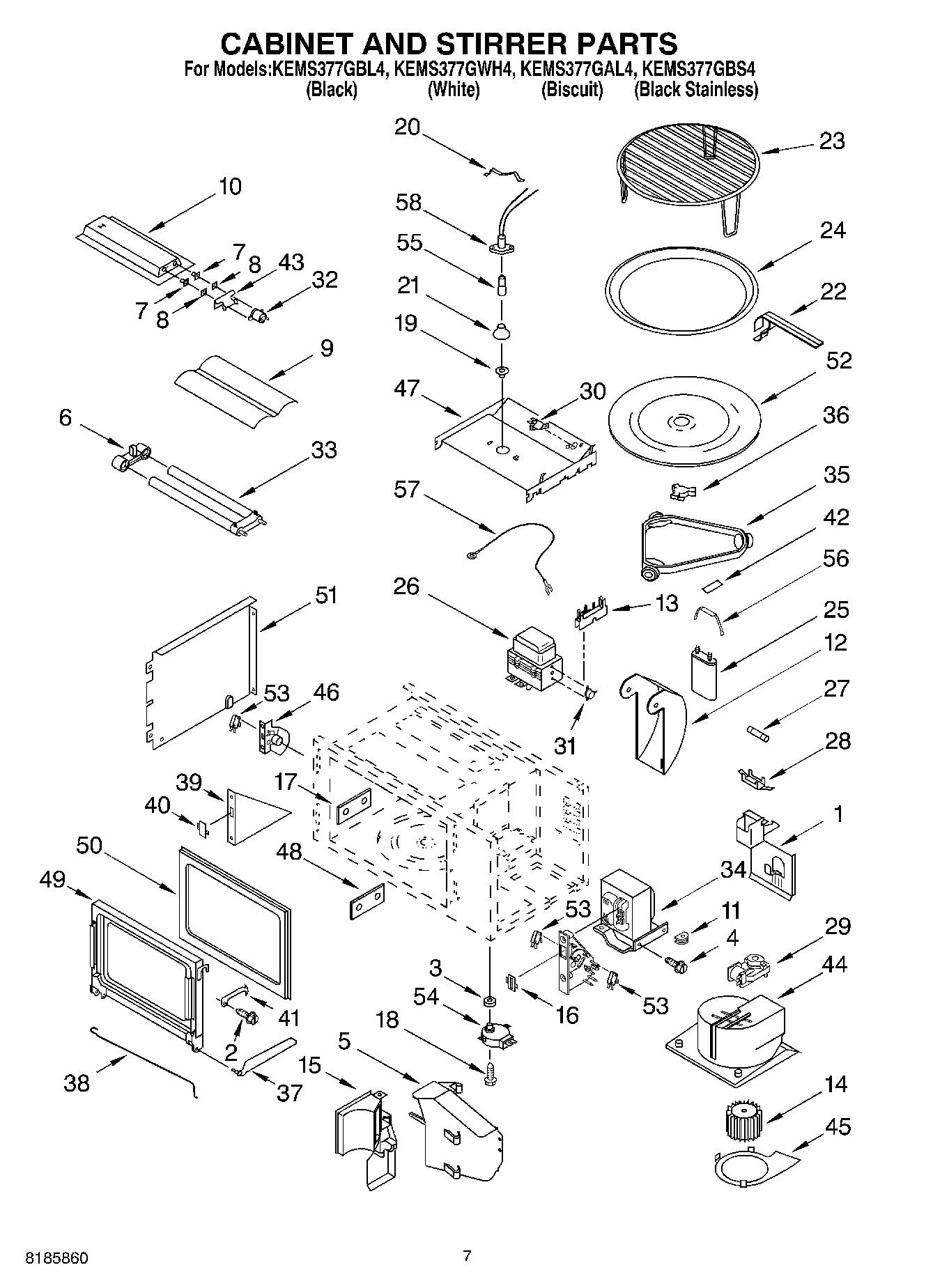

KEMS377GWH4 06 – CABINET & STIRRER

Products

Position	Product
1	Bracket, Capacitor
2	Screw
3	Rubber Ring
4	Screw
5	Air Duct, Magnetron
6	Support, Tube
7	Plug, Ceramic
8	Bushing
9	Reflector
10	Chamber, Reflector
11	Damper
12	Duct, Inlet
13	Insulation, Switch
14	Fan Wheel
15	Duct, Air
16	Block, Slide
17	Cover Plate, Upper
18	8206180 Whirlpool Microwave Screw
19	W11193483 Whirlpool Microwave Lamp Lens
20	W10465869 Whirlpool Microwave Spring
21	423107022541 Whirlpool Microwave Reflector
22	W10851464 Whirlpool Microwave Handle Panel
23	Rack
24	WPW10120480 Whirlpool Crisper Pan
25	WP4375020 Whirlpool High Voltage Capacitor
26	W10245183 Whirlpool Microwave Magnetron
27	WP4375321 Whirlpool Microwave Fuse
28	W10245194 Whirlpool Microwave Fuse Block
29	MOTOR-FAN
30	Thermostat
31	WP4375079 Whirlpool Microwave Thermostat
32	Thermostat
33	Q Tube Assembly
34	WP4375286 Whirlpool Microwave Transformer
35	Ring, Turntable
36	WP8183788 Whirlpool Microwave Turn Shaft
36	Cabinet Parts
37	WP4375324 Whirlpool Microwave Door Hinge
37	WP4375323 Whirlpool Microwave Door Hinge
38	WP4451008 Whirlpool Microwave Spring
39	Bracket, Hinge (Right)
39	Bracket, Hinge (Left)
40	Inlet
41	Strap, Door
42	Plate, Grill
43	Bracket
44	Fan Cap
45	Fan Cap Bottom
46	W10727408 Whirlpool Microwave Switch
47	Isolation Plate
48	Cover Plate
49	Plate, Door
50	Inner Frame
51	Side Plate (Right)
51	Side Plate (Left)
52	W11373838 Whirlpool Glass Tray
53	W10211972 Whirlpool Microwave Switch
54	W10642989 Whirlpool Microwave Oven Turntable Motor
55	WPW10440740 Whirlpool Microwave Light Bulb
56	WPW10687786 Whirlpool Microwave Diode
57	Cable
58	Holder, Lamp
