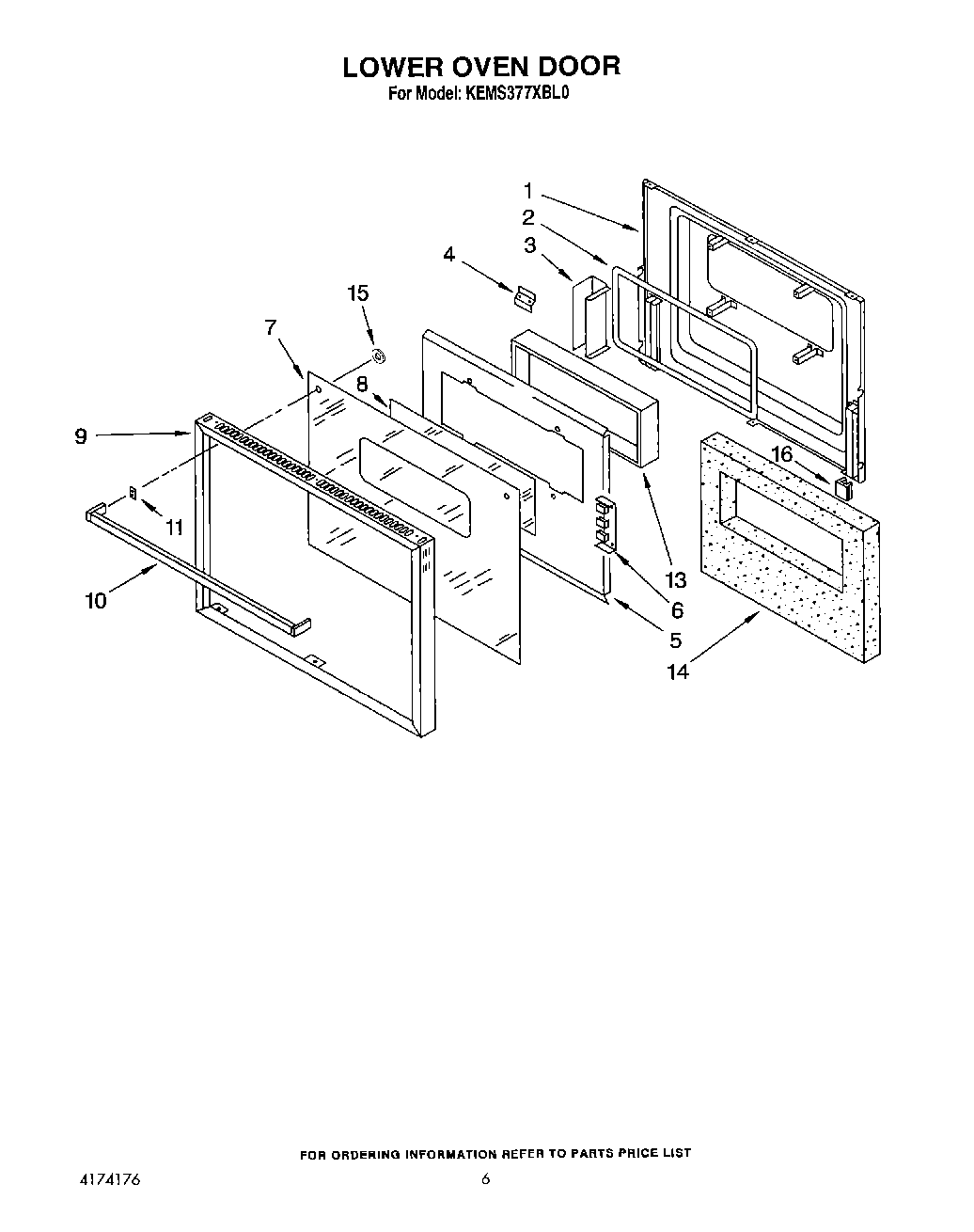

KEMS377XBL0 05 – LOWER OVEN DOOR

Products

PositionProduct
1Screw, Black (2)
1Liner, Door
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6WP90767 Whirlpool Screw
6Bracket, Glass Mtg.
7Glass, Door (Black)
7Glass, Door (White)
8Glass, Reflective
9Clip, Channel (Bottom (2))
9Clip, Channel Glass (Sides)
9Frame, Door
10Handle, Door (White)
10Handle, Door (Black)
11Screw
11Spacer (2) (White)
11Spacer (2)
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
