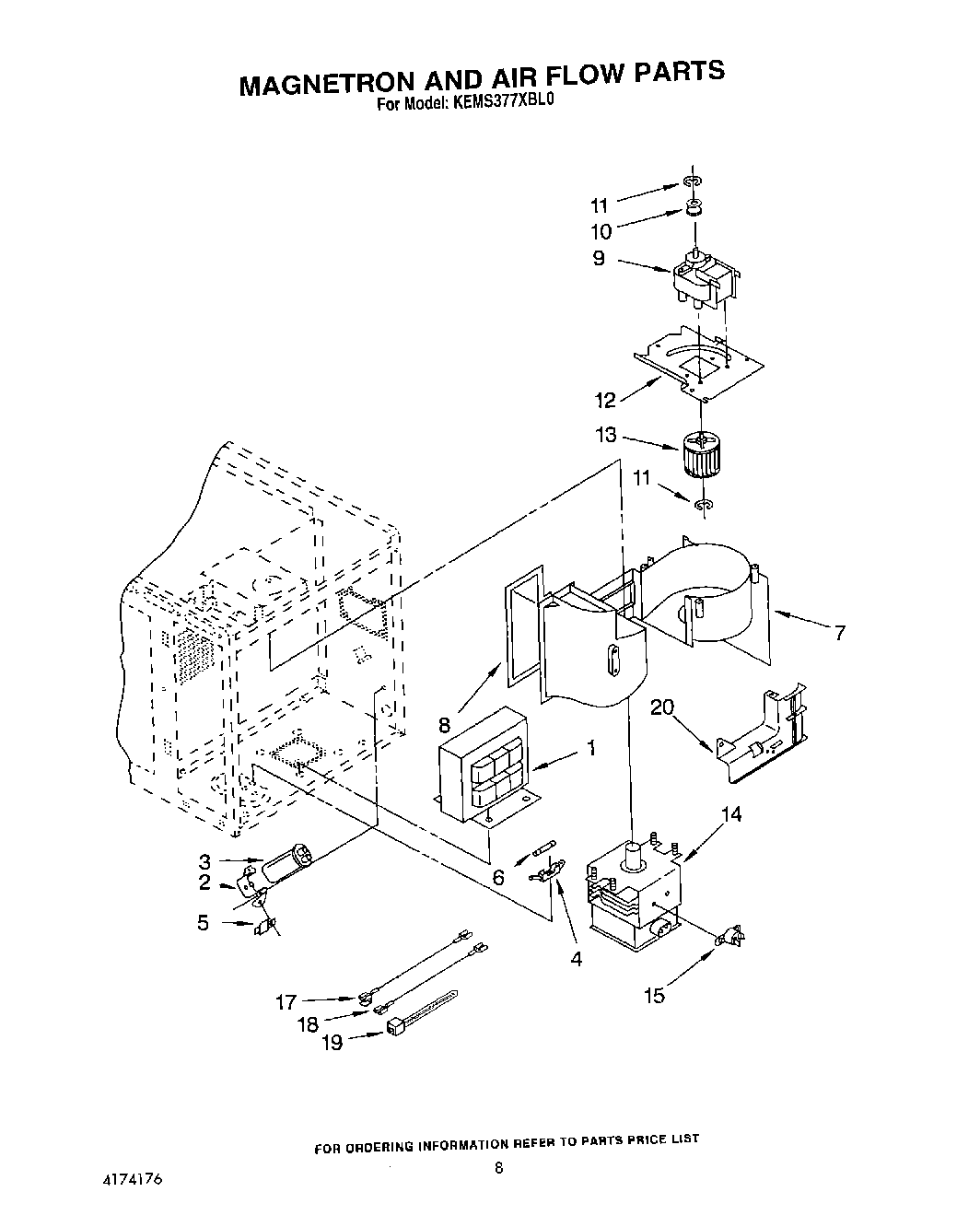

KEMS377XBL0 07 – MAGNETRON AND AIR FLOWadmin2025-04-26T10:29:42+00:00KEMS377XBL0 07 – MAGNETRON AND AIR FLOW
Products
| Position | Product |
|---|
| 1 | Transformer |
| 1 | Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10) |
| 2 | Bracket, Capacitor |
| 3 | Capacitor |
| 4 | screw |
| 4 | 4454949 Whirlpool Oven Fuse Block |
| 5 | Rectifier, High Voltage |
| 6 | WPW10017410 Whirlpool Fuse |
| 7 | Air Duct (Horizontal) |
| 8 | Seal, Air Duct |
| 9 | Transmotor |
| 10 | Pulley, Motor |
| 11 | ``E`` Ring |
| 12 | WP486579 Whirlpool Air Conditioner Screw |
| 12 | Bracket, Motor |
| 13 | Wheel, Blower |
| 14 | Magnetron |
| 15 | Thermal Protector |
| 15 | Screw, 6A x 3/8 (2) |
| 17 | High Voltage Lead, Gray 6-3/4`` (2) |
| 18 | Jumper, High Voltage Red (6-5/16``) |
| 19 | WPW10339879 Whirlpool Wire Tie |
| 20 | Screw, 11-16 x 1/2 Double Load Space Thread (5) |
| 20 | Extension, Air Duct |
