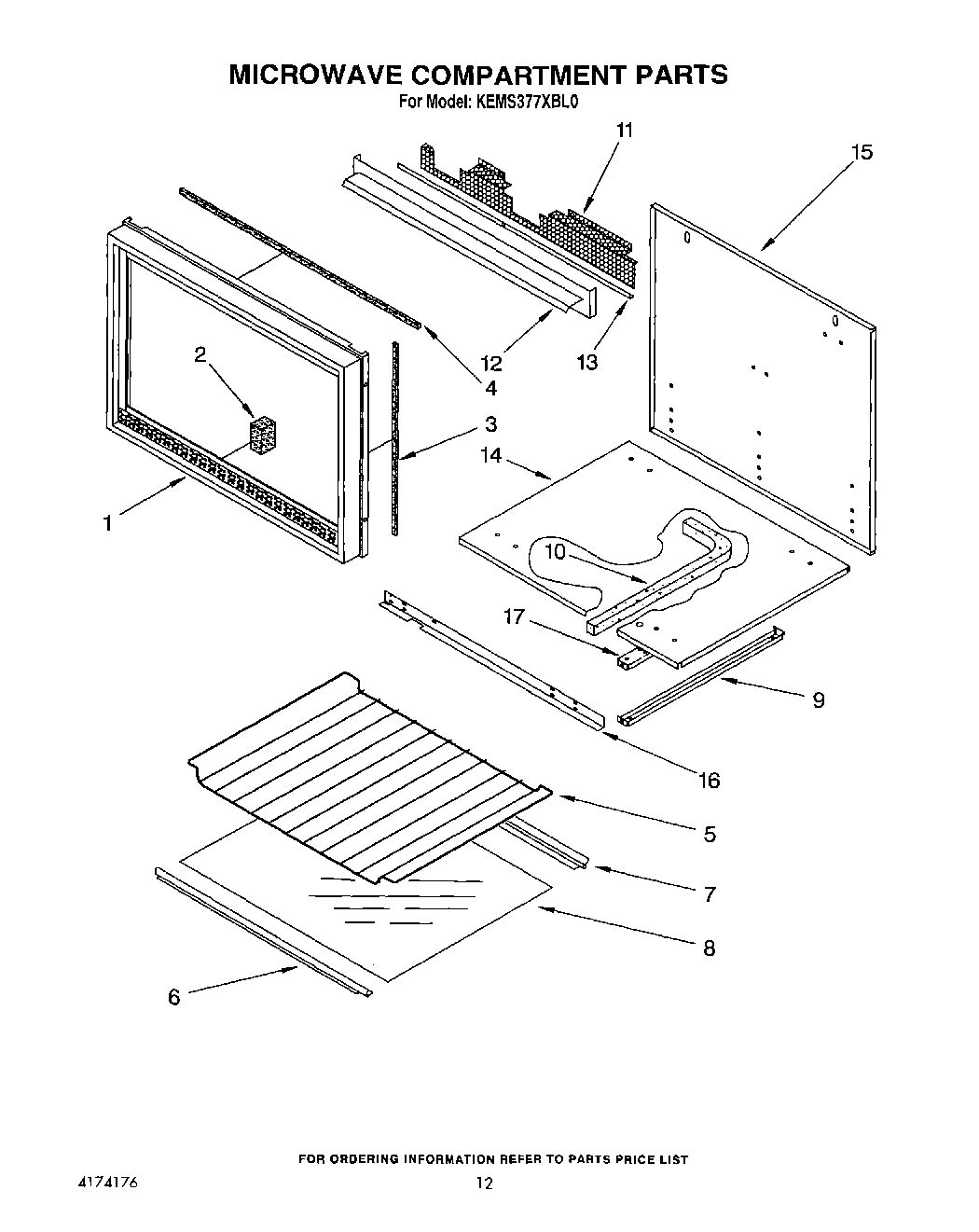

KEMS377XBL0 09 – MICROWAVE COMPARTMENTadmin2025-04-26T10:30:04+00:00KEMS377XBL0 09 – MICROWAVE COMPARTMENT
Products
| Position | Product |
|---|
| 1 | Frame, Outer (White) |
| 1 | Frame, Outer (Black) |
| 2 | Seal, Foam |
| 3 | Seal, Foam (Side) (White or Almond Model) |
| 3 | Seal, Foam (Side) (Black Model) |
| 4 | Seal, Foam (Top) (Black Model) |
| 4 | Seal, Foam (Top) (White or Almond Model) |
| 5 | rack, wire |
| 6 | Trim, Shelf (Front) |
| 7 | Trim, Shelf (Rear) |
| 8 | Shelf, Microwave (Install with Silastic 482338) |
| 9 | Rail, Microwave |
| 10 | Seal, Foam |
| 11 | Screen, Wire Mesh |
| 11 | Screw, 8-18 X 3/4 (4) |
| 12 | Screw |
| 12 | Vent, Middle Trim (White or Almond Model) |
| 12 | Vent, Middle Trim (Black Model) |
| 13 | Brace, Center Vent |
| 13 | Vent, Lower Trim (Screw (4)) |
| 13 | Vent, Lower Trim (Screw (2)) |
| 14 | Support, Module |
| 15 | Back, Microwave Compartment |
| 16 | Ext. Module Support |
| 17 | Rail, Chassis |
| 17 | WP90767 Whirlpool Screw |
