KEMS377XBL1 05 – LOWER OVEN

KEMS377XBL1 05 – LOWER OVEN

Written by

in

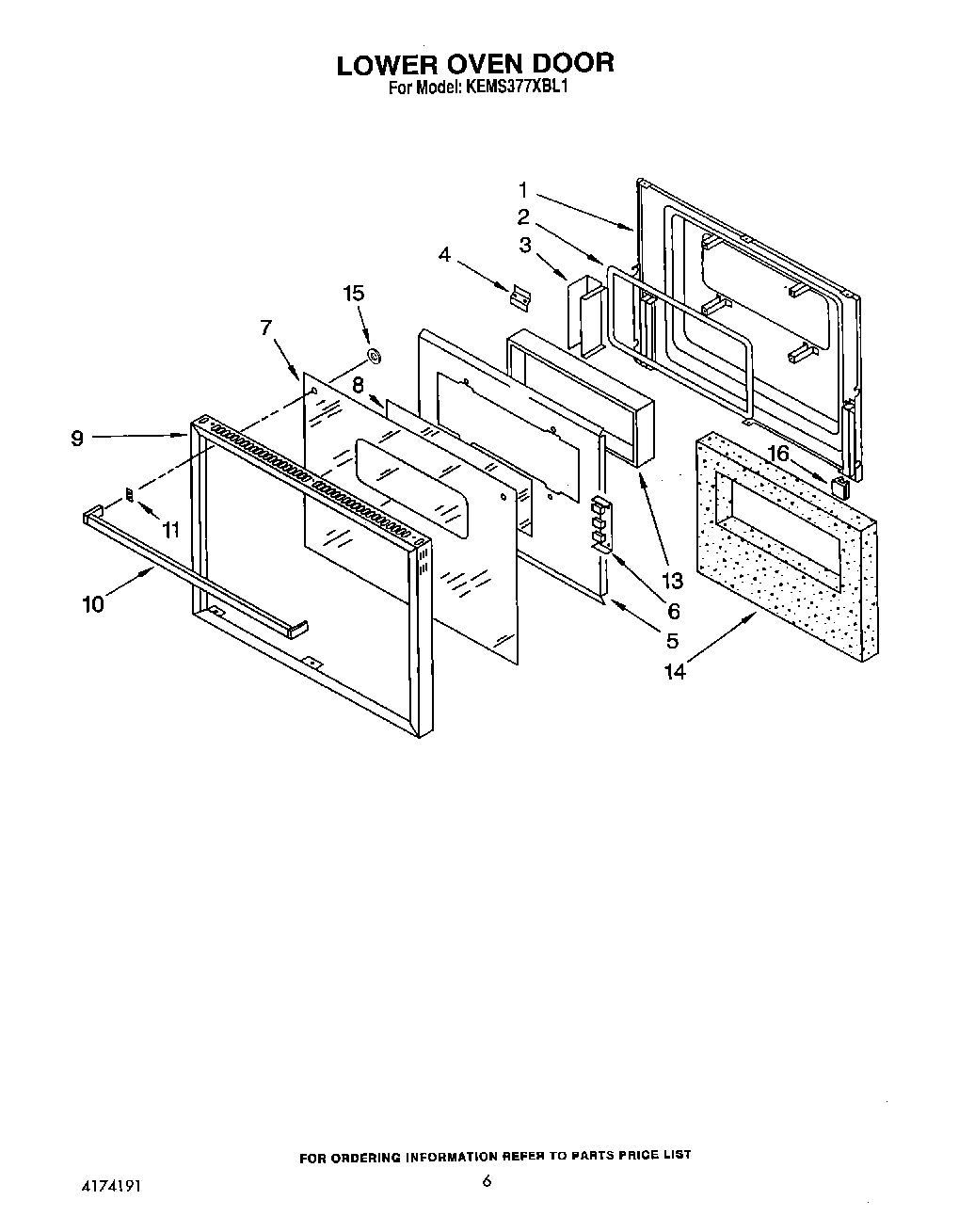

KEMS377XBL1 05 – LOWER OVEN

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	WP90767 Whirlpool Screw
6	Bracket, Glass Mtg.
7	Glass, Door (Black)
7	Glass, Door (White)
8	Glass, Reflective
9	Clip, Channel (Bottom (2))
9	Clip, Channel Glass (Sides)
9	Frame, Door
10	Handle, Door (White)
10	Handle, Door (Black)
11	Screw
11	Spacer (2) (White)
11	Spacer (2)
13	Window Package
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
