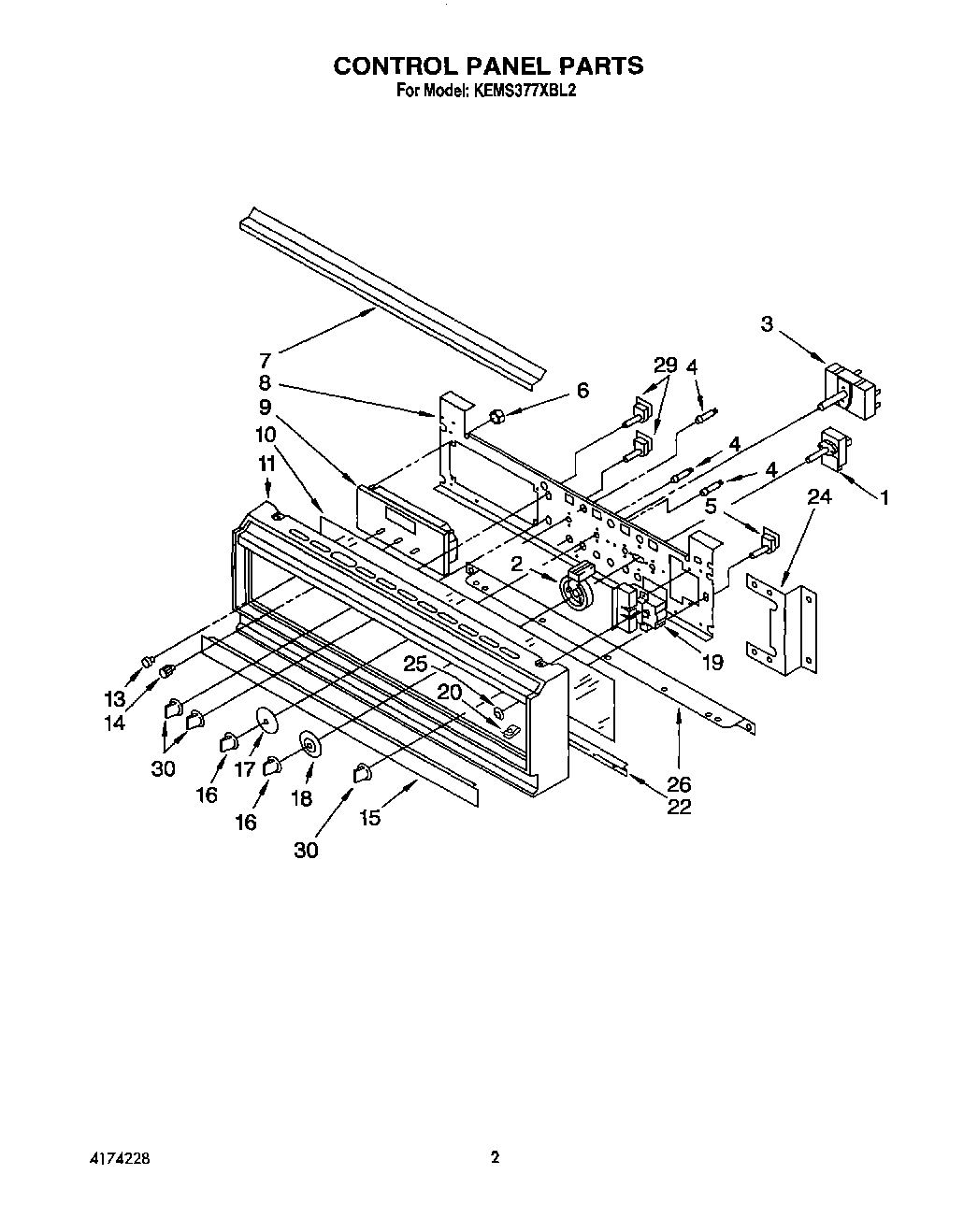

KEMS377XBL2 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	Repair Parts List
	Use & Care G
	WPL LIT3180512
	Cookbook T/C Oven
	WPL LIT3147005
	Microwave Oven Use & Care Guide
	Tech Sheet
1	Thermostat, Upper
2	Backlight (2)
3	Switch, Selector
3	WP486579 Whirlpool Air Conditioner Screw
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
6	Nut, Timer (4)
7	Insert, Top (Black)
7	Insert, Top (White)
8	Control Panel
9	Timer, Electronic
10	Glass, Control Panel (Black)
10	Glass, Control Panel (White)
11	Frame, Control Panel (White)
11	Frame, Control Panel (Black)
13	Knob, Timer (2)
14	Knob, Timer
15	Trim, Control Panel (White Model)
15	Trim, Control Panel (Black Model)
16	Knob, Control
17	Disc, Selector
18	Disc, Thermostat (Self Clean) (2)
19	Indicator, Light Meat Probe
20	nut (3)
22	Screw (6)
22	Retainer
24	Bracket, Control Panel
25	Bezel, Switch (White)
25	Bezel, Oven Light Switch
26	Door, Latch Handle (Screw (2))
26	WP3177991 Whirlpool Screw
26	Support, Frame
29	Switch, Rotory
30	Knob
30	Clip, Spacer
