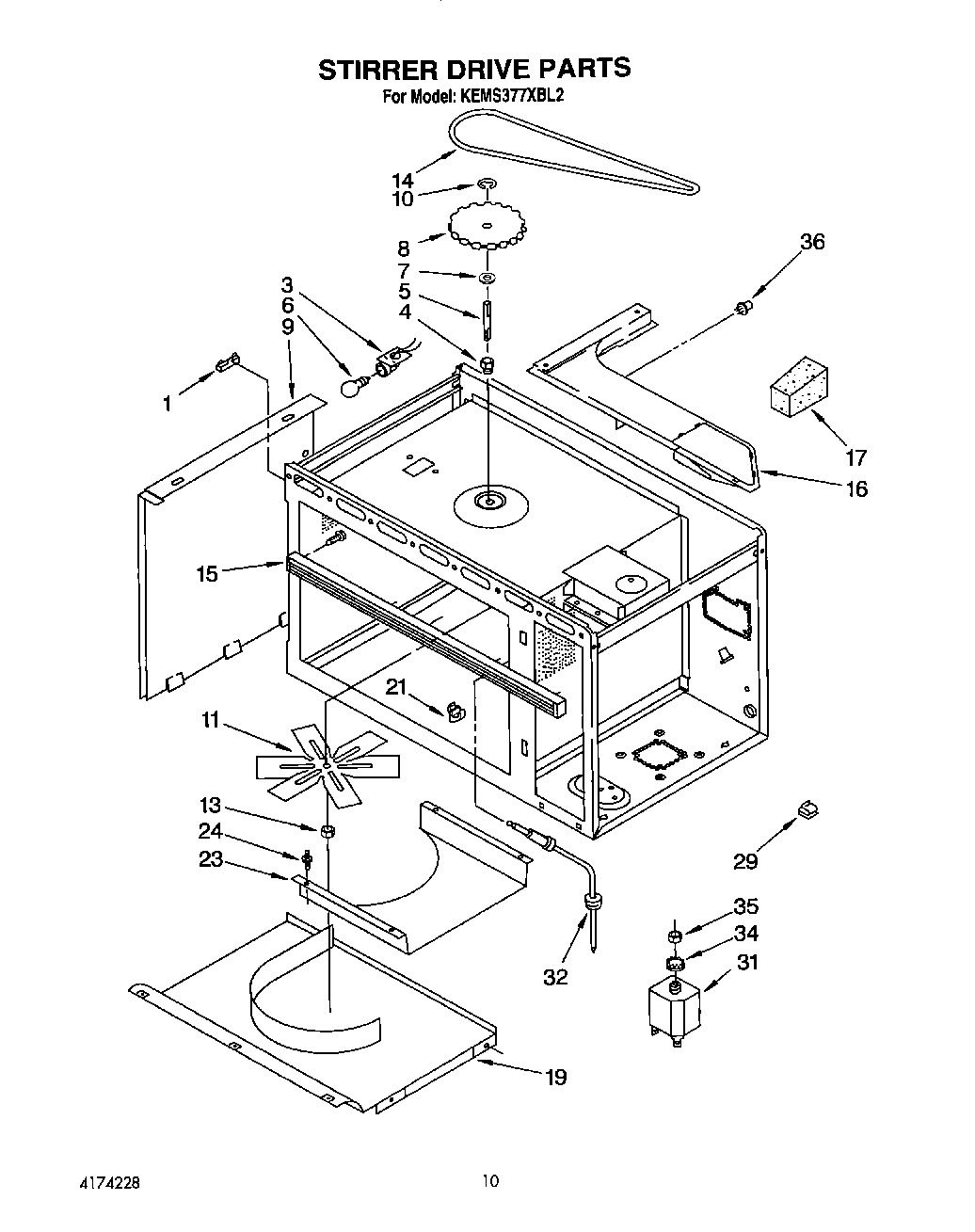

KEMS377XBL2 08 – STIRRER DRIVE, OPTIONALadmin2025-04-26T10:32:45+00:00KEMS377XBL2 08 – STIRRER DRIVE, OPTIONAL
Products
| Position | Product |
|---|
| 1 | Fuse, Thermal |
| 3 | Snap-In Socket |
| 4 | Bushing, Stirrer |
| 5 | Shaft, Stirrer |
| 6 | WP3395618 Whirlpool Light Bulb |
| 7 | Washer, Nylon |
| 8 | Pulley, Stirrer Blade |
| 9 | Screw (5) |
| 9 | Cover, Side |
| 10 | ``E`` Ring |
| 11 | Stirrer Blade |
| 13 | WP487939 Whirlpool Refrigerator Nut |
| 14 | WP313646 Whirlpool Microwave Drive Belt |
| 15 | screw (3) |
| 15 | Grill, Air (White) |
| 15 | Grill, Air (Black) |
| 15 | Grill, Air (Screw (3) (White)) |
| 16 | Baffle, Air |
| 16 | Fastener (2) |
| 17 | Seal, Foam |
| 19 | Fastener (4) |
| 19 | Silicone Rubber Gasket |
| 19 | screw, 8-32 x 1/2 (3) |
| 21 | WP3149478 Whirlpool Microwave Support |
| 23 | Plate, Tuning |
| 24 | Support (4) |
| 29 | Clip |
| 29 | screw |
| 31 | Probe Jack |
| 31 | Screw 8-32 X 1/2 |
| 32 | (Alt.) |
| 34 | Washer, Internal Lock |
| 35 | Nut |
| 36 | WPL 786032 |
| 36 | 261900 Whirlpool Microwave Spray |
| 36 | Screw |
| 36 | Wire (14 Ga. 150 c Blue) |
| 36 | Golden Harvest |
| 36 | Sensor, Gas |
| 36 | WPL 786020 |
| 36 | WPL 832985 |
| 36 | WPL 591014 |
| 36 | 350942 Whirlpool Spray Paint |
| 36 | WPL 72112 |
| 36 | Platinum (Uncut) |
| 36 | Enamal, Toast (1 Qt. Uncut) |
| 36 | Paint, Spray (13 Oz.) (Platinum) |
| 36 | Toast |
| 36 | Golden Harvest (Uncut) |
| 36 | 72113 Whirlpool Touch-Up Paint |
| 36 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 36 | Almond (Uncut) |
| 36 | Leveler (Thinner) |
| 36 | WP72107 Whirlpool Touchup |
| 36 | 799344 Whirlpool Refrigerator Paint |
| 36 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 36 | 350956 Whirlpool Spray Assembly |
| 36 | WPL 799832 |
| 36 | Wire, 25` Roll (Black 14 Ga.) |
| 36 | Wire, 25` Roll (Red 14 Ga.) |
| 36 | WPL 350806 |
| 36 | 1 |
| 36 | Wire (14 Ga. 200 c Brown) |
| 36 | 18 Ga. 80~c Rating (Red) |
| 36 | Wire (12 Ga. 150 c Black) |
| 36 | Wire (14 Ga. 150 c Yellow) |
| 36 | Wire (14 Ga. 150 c Orange) |
| 36 | Wire (14 Ga. 150 c Green) |
| 36 | Wire (14 Ga. 150 c Brown) |
| 36 | WP261869 Whirlpool Microwave Paint |
| 36 | 242831 Whirlpool Oven Wire |
| 36 | WP482338 Whirlpool Refrigerator Adhesive |
| 36 | 72032 Whirlpool Touch Up Paint Black |
| 36 | 285006 Whirlpool Spray |
| 36 | Wire, 25`` Roll (White 14 GA.) |
| 36 | 350930 Whirlpool White Spray Paint |
