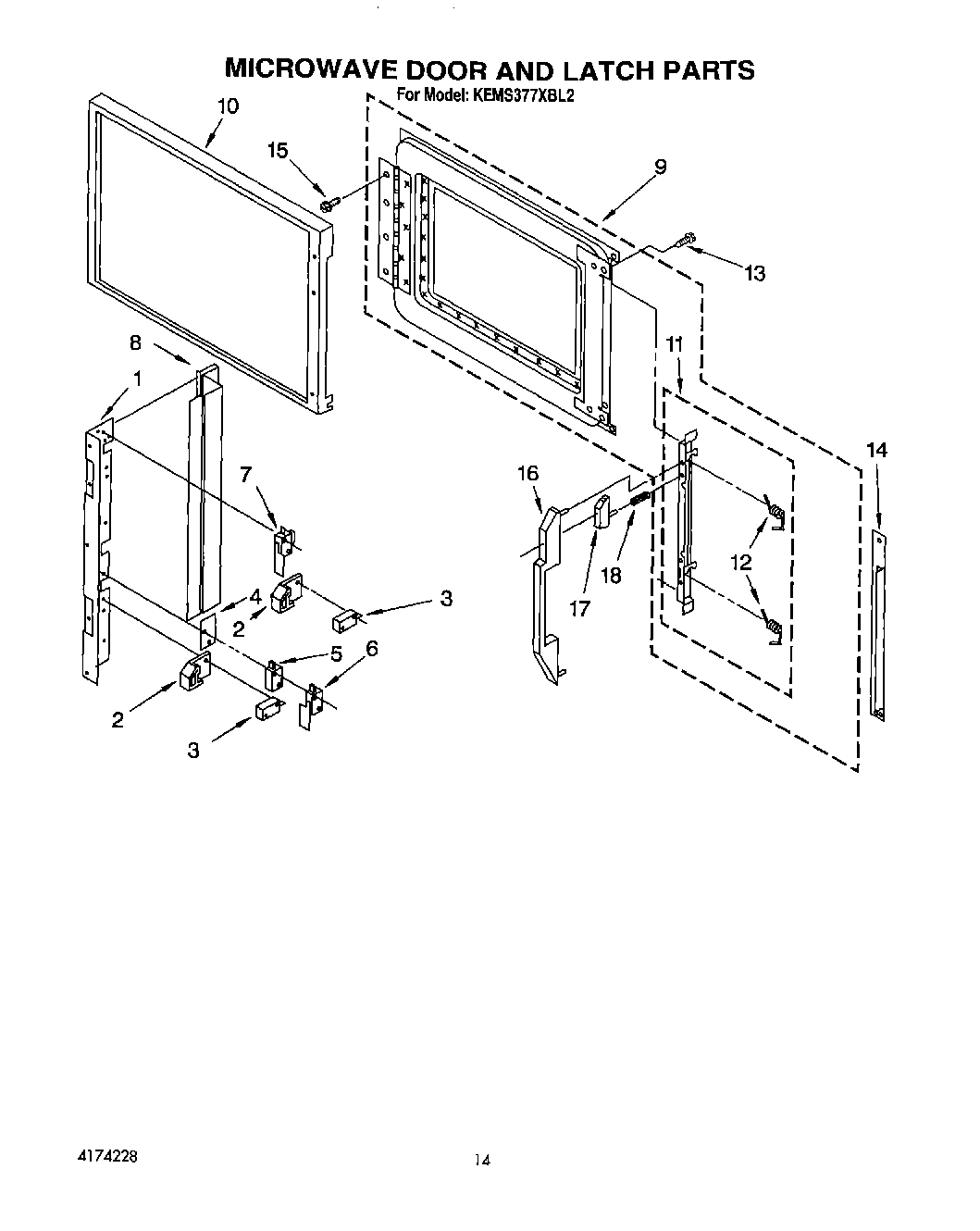

KEMS377XBL2 11 – MICROWAVE DOOR AND LATCHadmin2025-04-26T10:31:33+00:00KEMS377XBL2 11 – MICROWAVE DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | WPL 309080 |
| 1 | Bracket, Catch |
| 2 | Catch (2) |
| 3 | 814037 Whirlpool Microwave Switch |
| 4 | Insulator |
| 5 | Switch |
| 6 | Switch, Light/ Monitor |
| 6 | Screw, 4-40 x 10 (2) |
| 7 | Switch, Miniature |
| 7 | WPL 312717 |
| 8 | Shield |
| 8 | Fastener (4) |
| 9 | Door, Inner |
| 9 | Inner Door Asm. (White Unit) |
| 10 | Outer Door Asm. (White Unit) |
| 10 | Frame, Door |
| 11 | Latch Assembly |
| 11 | 303776 Whirlpool Dishwasher Screw |
| 12 | Spring, Torsion (2) |
| 13 | Screw (2) |
| 14 | End Cap |
| 14 | End Cap (White) |
| 15 | WPW10068250 Whirlpool Dishwasher Screw |
| 16 | Screw, 8-22 (5) |
| 16 | Handle, Door |
| 16 | Handle, Door (White) |
| 17 | Button, Door Handle |
| 17 | Button, Door Handle (White) |
| 18 | Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65) |
