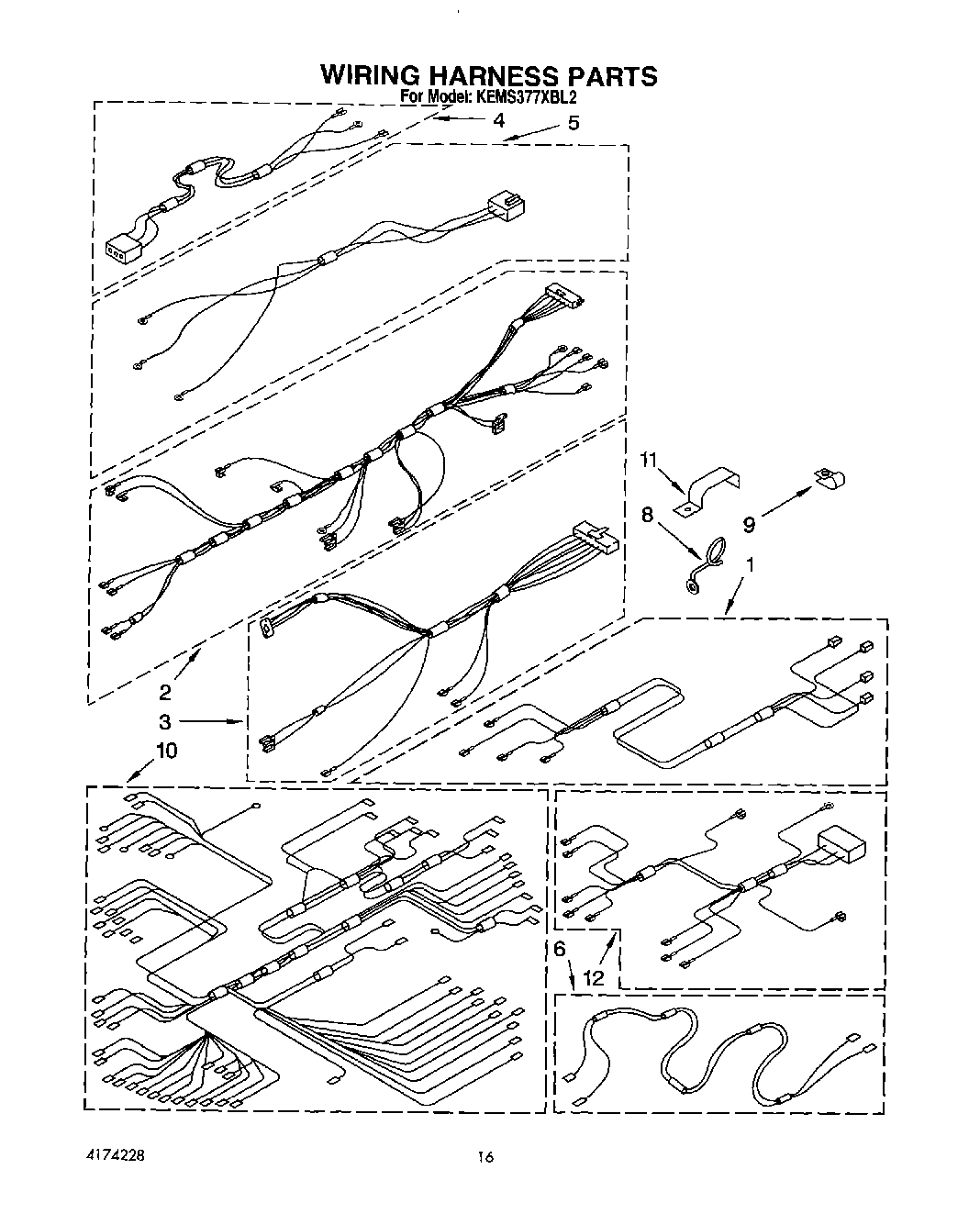

KEMS377XBL2 13 – WIRING HARNESS

Products

Position	Product
1	Harness, Wiring (Main Oven)
2	Harness, Wire (Main)
3	Harness, Wire M/W Control
4	Harness, Wire A.C. Supply
5	Harness, Wiring (Microwave Power)
6	Wiring Harness (Door Switch) Lower)
8	Standoff, Wire
9	16515 Whirlpool Clip
10	Harness, Wire Temperature Probe
11	7111P002-60 Whirlpool Clamp
12	Harness, Wiring (T/C Meat Probe)
12	WP112432 Whirlpool Nut Assembly
