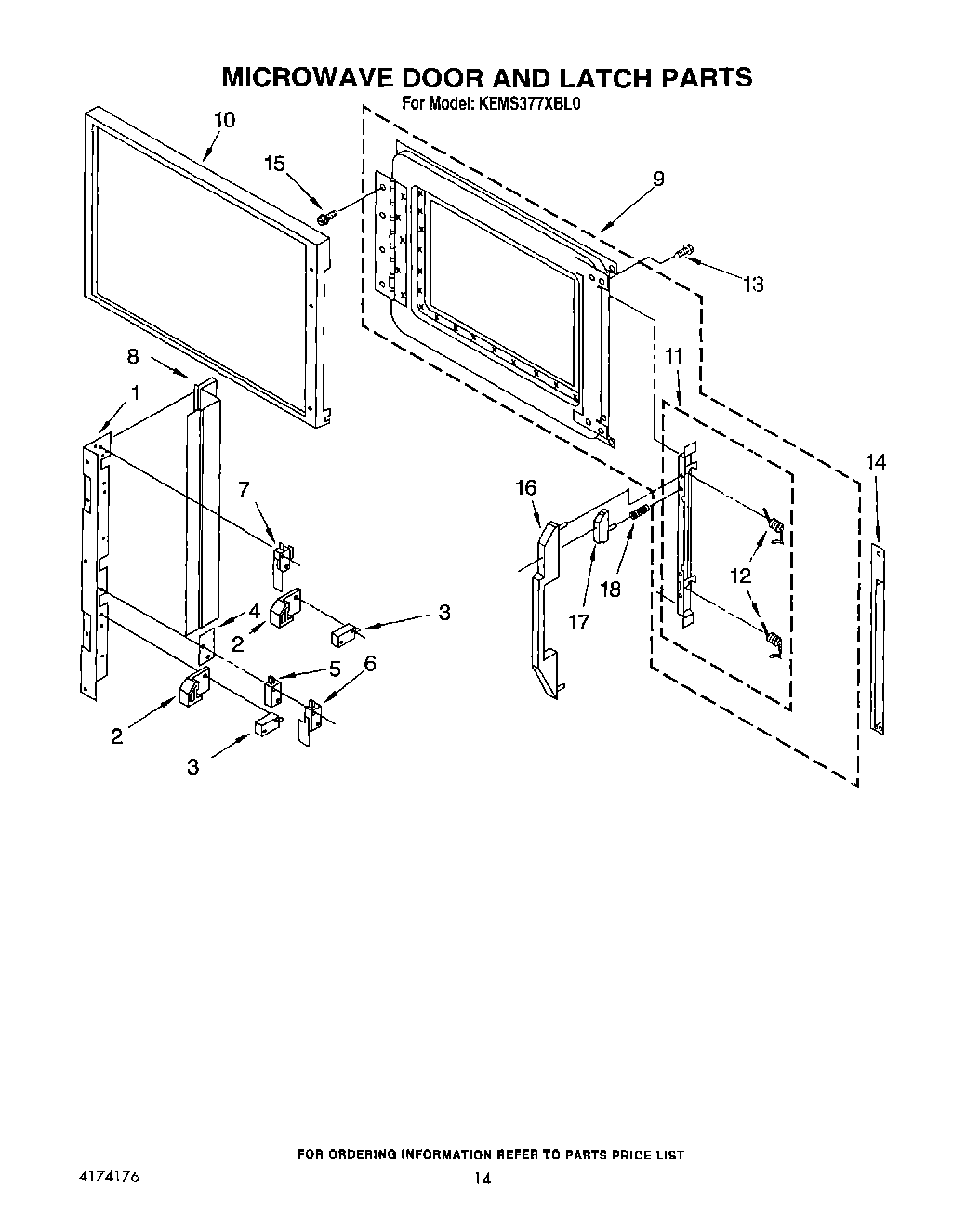

KEMS377XWH0 11 – MICROWAVE DOOR AND LATCH

Products

Position	Product
	Screw, 4-40 x 10 (2)
	WPL 312717
1	Bracket, Catch
1	WPL 309080
2	Catch (2)
3	814037 Whirlpool Microwave Switch
4	Insulator
5	Switch
5	Spring
5	Switch (Alt.)
6	Switch, Light/ Monitor
6	Switch, Light Monitor (Alt.)
6	Switch, Light Monitor (Alt.)
7	Switch, Miniature
8	Fastener (4)
8	Shield
9	Inner Door Asm. (White Unit)
9	Door, Inner
10	Outer Door Asm. (White Unit)
10	Frame, Door
11	Latch Assembly
11	303776 Whirlpool Dishwasher Screw
12	Spring, Torsion (2)
13	Screw (2)
14	End Cap (White)
14	End Cap
15	WPW10068250 Whirlpool Dishwasher Screw
16	Screw, 8-22 (5)
16	Handle, Door
16	Handle, Door (White)
17	Button, Door Handle
17	Button, Door Handle (White)
18	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
