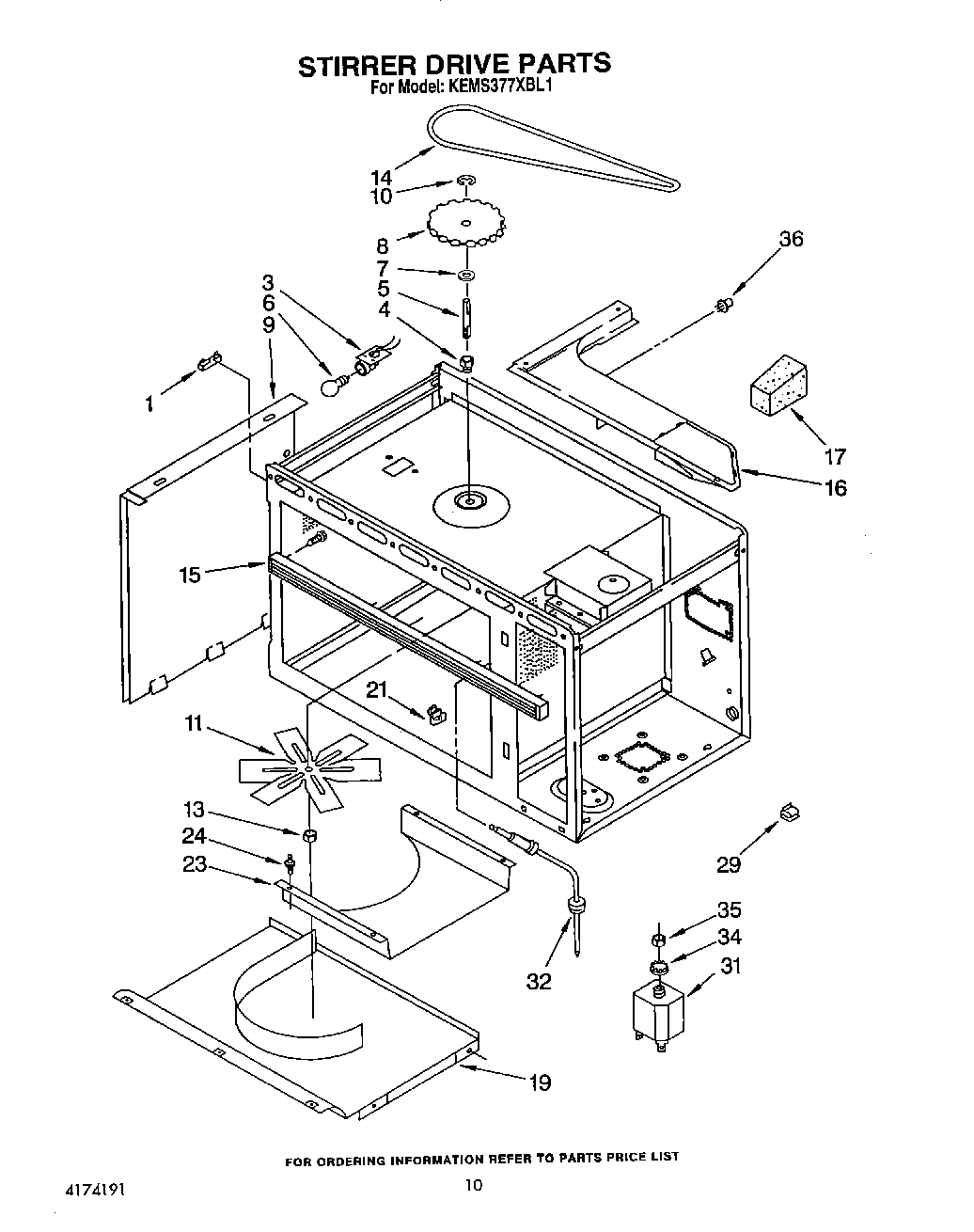

KEMS377XWH1 08 – STIRRER DRIVE

KEMS377XWH1 08 – STIRRER DRIVE

Written by

in

KEMS377XWH1 08 – STIRRER DRIVE

Products

Position	Product
1	Fuse, Thermal
3	Snap-In Socket
4	Bushing, Stirrer
5	Shaft, Stirrer
6	WP3395618 Whirlpool Light Bulb
7	Washer, Nylon
8	Pulley, Stirrer Blade
9	Screw (5)
9	Cover, Side
10	“E“ Ring
11	Stirrer Blade
13	WP487939 Whirlpool Refrigerator Nut
14	WP313646 Whirlpool Microwave Drive Belt
15	screw (3)
15	Grill, Air (White)
15	Grill, Air (Black)
15	Grill, Air (Screw (3) (White))
16	Baffle, Air
16	Fastener (2)
17	Seal, Foam
19	Fastener (4)
19	Silicone Rubber Gasket
19	screw, 8-32 x 1/2 (3)
21	WP3149478 Whirlpool Microwave Support
23	Plate, Tuning
24	Support (4)
29	Clip
29	screw
31	Probe Jack
31	Screw 8-32 X 1/2
32	(Alt.)
34	Washer, Internal Lock
35	Nut
36	WPL 786032
36	261900 Whirlpool Microwave Spray
36	Screw
36	Wire (14 Ga. 150 c Blue)
36	Golden Harvest
36	Sensor, Gas
36	WPL 786020
36	WPL 832985
36	WPL 591014
36	350942 Whirlpool Spray Paint
36	WPL 72112
36	Platinum (Uncut)
36	Enamal, Toast (1 Qt. Uncut)
36	Paint, Spray (13 Oz.) (Platinum)
36	Toast
36	Golden Harvest (Uncut)
36	72113 Whirlpool Touch-Up Paint
36	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
36	Almond (Uncut)
36	Leveler (Thinner)
36	WP72107 Whirlpool Touchup
36	799344 Whirlpool Refrigerator Paint
36	72017 Whirlpool Appliance Touch-Up Paint White
36	350956 Whirlpool Spray Assembly
36	WPL 799832
36	Wire, 25` Roll (Black 14 Ga.)
36	Wire, 25` Roll (Red 14 Ga.)
36	WPL 350806
36	1
36	Wire (14 Ga. 200 c Brown)
36	18 Ga. 80~c Rating (Red)
36	Wire (12 Ga. 150 c Black)
36	Wire (14 Ga. 150 c Yellow)
36	Wire (14 Ga. 150 c Orange)
36	Wire (14 Ga. 150 c Green)
36	Wire (14 Ga. 150 c Brown)
36	WP261869 Whirlpool Microwave Paint
36	242831 Whirlpool Oven Wire
36	WP482338 Whirlpool Refrigerator Adhesive
36	72032 Whirlpool Touch Up Paint Black
36	285006 Whirlpool Spray
36	Wire, 25“ Roll (White 14 GA.)
36	350930 Whirlpool White Spray Paint
